Reolink RLN8-410; RLN16-410 - 8-Channel PoE Reliable Recording Manual

What's in the Box

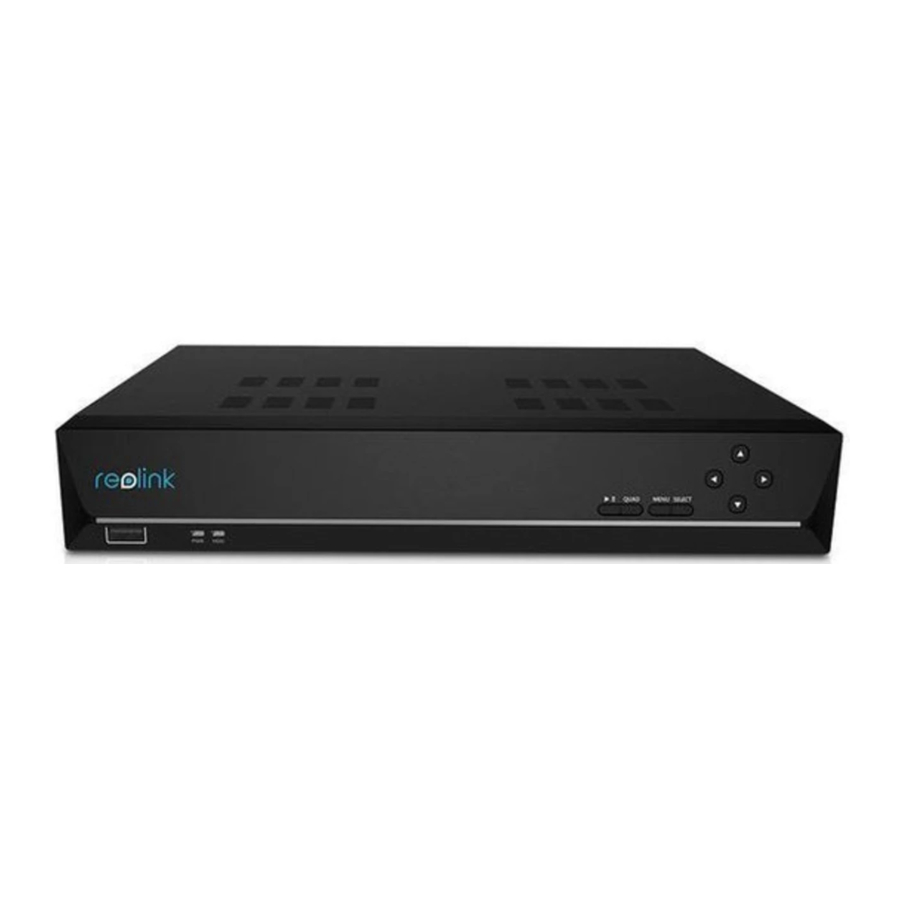

NVR Introduction

NOTE: The actual appearance and components may vary with different products.

Connection Diagram

Connect the NVR (LAN port) to your router with an Ethernet cable. Next, connect the mouse to the USB port of the NVR.

Connect the NVR to the monitor with a VGA or HDMI cable.
NOTE: There is no VGA cable included in the package.

Connect cameras to PoE ports on the NVR.

Connect the NVR to a power outlet and turn on power switch.

NOTE: Some Reolink WiFi cameras also work with Reolink PoE NVR. For more information, visit https://support.reolink.com and search Make Reolink WiFi Cameras Work with Reolink PoE-NVRs.

Set up PoE NVR System

A setup wizard will guide you through the NVR system configuration process. Please set a password for your NVR (for the initial access) and follow the wizard to configure the system.
NOTE: The password should be at least 6 characters. It is recommended that you note down the password and keep it in a secure place.

Access the NVR via Smartphone or PC

Download and launch the Reolink App or Client software and follow the instructions to access the NVR.

• On Smartphone
  Scan to download the Reolink App.

• On PC
  Download path: Go to https://reolink.com > Support > App & Client.

Troubleshooting

No Video Output on the Monitor

If there's no video output on the monitor from Reolink NVR, please try the following solutions:

• TV/monitor resolution should be at least 720p or above.
• Make sure your NVR is powered on.
• Double check the HDMI/VGA connection, or swap another cable or monitor to test.

If it still doesn't work, please contact Reolink Support https://support.reolink.com

Failed to Access the PoE NVR Locally

If you failed to access the PoE NVR locally via mobile phone or PC, please try the following solutions:

• Connect the NVR (LAN port) to your router with a network cable.
• Swap another Ethernet cable or plug the NVR to other ports on the router.
• Go to Menu -> System -> Maintenance andrestore all settings.

If it still doesn't work, please contact Reolink Support https://support.reolink.com

Failed to Access the PoE NVR Remotely

If you failed to access the PoE NVR remotely via mobile phone or PC, please try the following:

• Make sure you can locally access this NVR system.
• Go to NVR Menu -> Network -> Network Advanced and make sure that UID Enable is selected.
• Please connect your phone or PC under the same network (LAN) of your NVR and see if you can visit any website to verify whether there is Internet access available.
• Please reboot your NVR and home router and try again.
• If it still doesn't work, please contact Reolink Support https://support.reolink.com

Specifications

Video/Audio Output
HDMI Output: Up to 8MP
VGA Output: Up to 2MP
Audio output: 1CH RCA
Decoding
Decoding Resolution: 12MP/8MP/5MP/4MP/3MP/1080p/720p
Video Format: H.264,H.265
Synchronous Playback: Up to 4 Channels
General
Operating Temperature: -10°C to 45°C (-10°C to 55°C for RLN16-410)
Size: 260 x 41 x 230mm, (330 x 45 x 285mm for RLN16-410)
Weight: 2.0kg, (3.0kg for RLN16-410)

Notification of Compliance

FCC Compliance Statement
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation. For more information, visit: https://reolink.com/fcc-compliance-notice/.

Simplified EU Declaration of Conformity
Reolink declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EU.
