NVR Overview

8

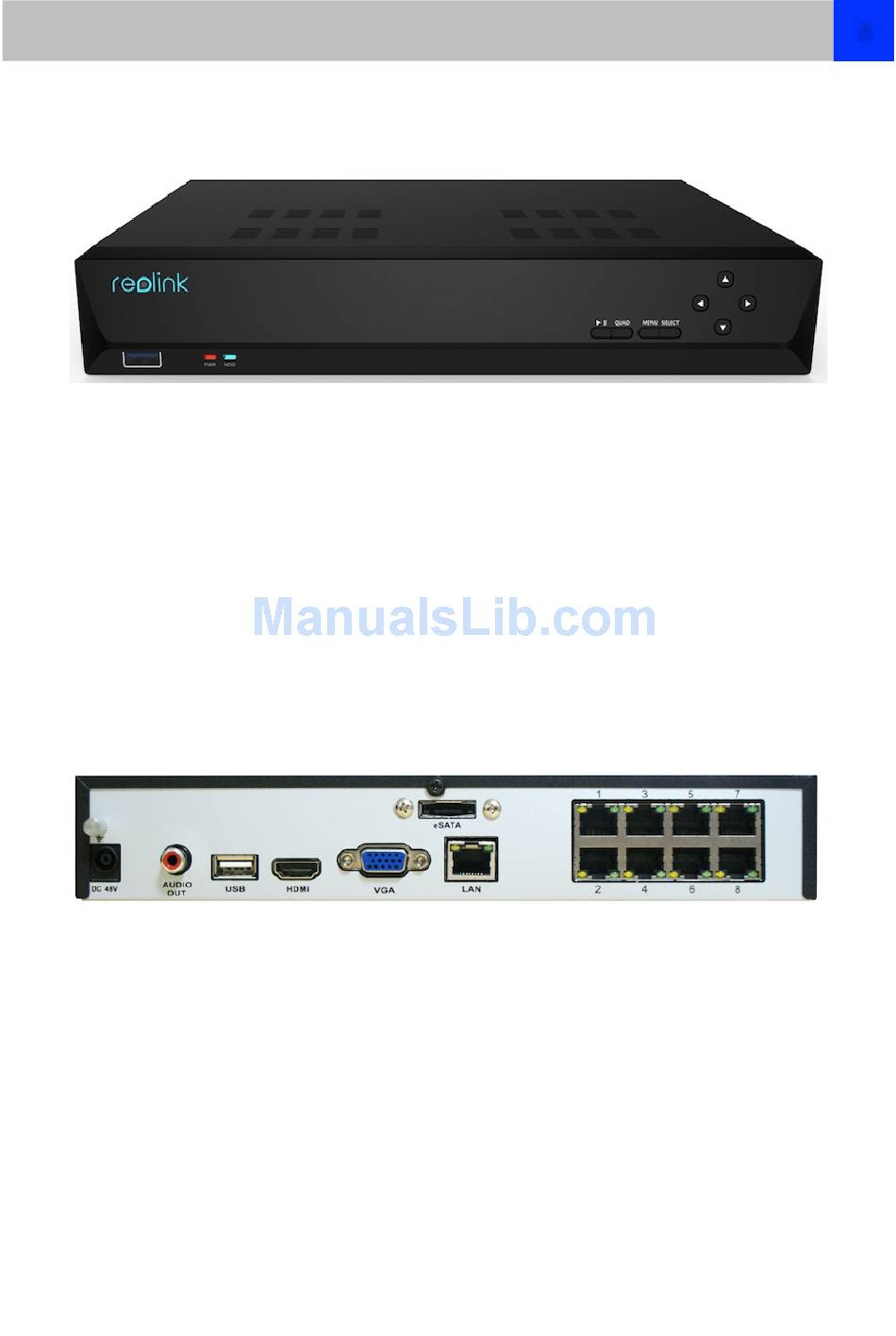

Front Panel
Power LED : Solid red indicates the NVR is supplied with power and turned on.
HDD LED : Blinking green indicates the NVR is writing to / reading from the installed hard drive.
USB : For connecting the USB mouse .
Play/Stop : to play or stop the selected Channel .
Quad: Switch between display 1 CH and display 4 CH on the Monitor
Menu : Open the Menu windows
Select : start to use the selected item function
Direction Arrow : Choose the items on the menu .
Rear Panel
VGA ：For connecting a television or PC monitor with a VGA input (make sure the monitor you
use supports the resolution you set in the menu).
HDMI ：The primary video output of the NVR.
Network (LAN) Port ：connect the NVR to your router or network switch for Internet
connectivity.
USB 2.0 ：For connecting the USB mouse .
POE Camera Ports ：Plug the Video and Power cable for each camera in to one of these
sockets
DC 48V Power Input ：Plug the DC power adapter into this socket to provide power to the NVR
and Cameras
eSATA: An easy way to connect an additional Hard Driver for extra storage.
Audio Out : For connecting speakers .
