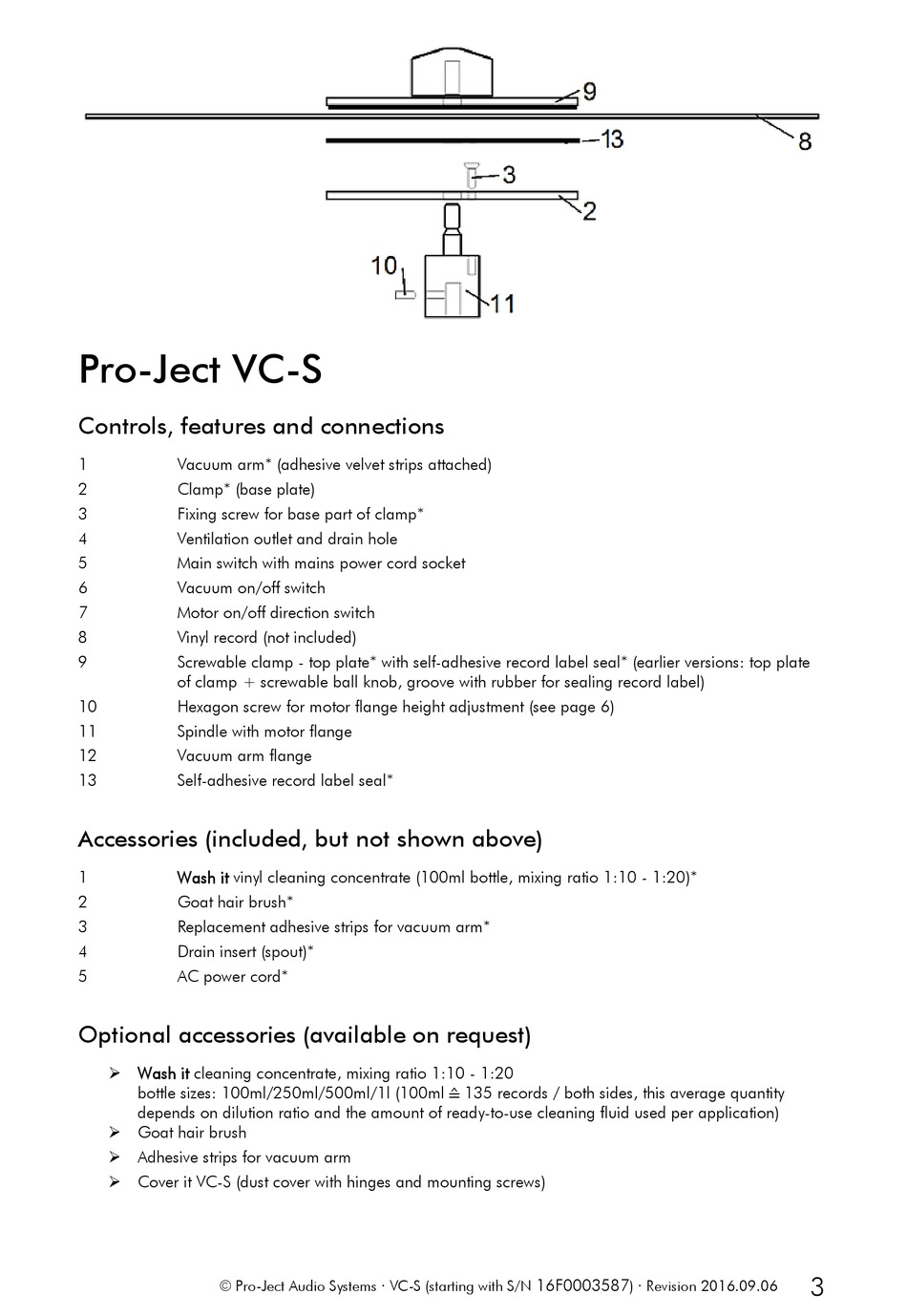

Pro-Ject VC-S

Controls, features and connections

1 Vacuum arm* (adhesive velvet strips attached)
2 Clamp* (base plate)
3 Fixing screw for base part of clamp*
4 Ventilation outlet and drain hole
5 Main switch with mains power cord socket
6 Vacuum on/off switch
7 Motor on/off direction switch
8 Vinyl record (not included)
9 Screwable clamp - top plate* with self-adhesive record label seal* (earlier versions: top plate
of clamp + screwable ball knob, groove with rubber for sealing record label)
10 Hexagon screw for motor flange height adjustment (see page 6)
11 Spindle with motor flange
12 Vacuum arm flange
13 Self-adhesive record label seal*
Accessories (included, but not shown above)
1 Wash it vinyl cleaning concentrate (100ml bottle, mixing ratio 1:10 - 1:20)*
2 Goat hair brush*
3 Replacement adhesive strips for vacuum arm*
4 Drain insert (spout)*
5 AC power cord*
Optional accessories (available on request)
bottle sizes: 100ml/250ml/500ml/1l (100ml ≙ 135 records / both sides, this average quantity
 Wash it cleaning concentrate, mixing ratio 1:10 - 1:20
depends on dilution ratio and the amount of ready-to-use cleaning fluid used per application)
 Goat hair brush
 Adhesive strips for vacuum arm
 Cover it VC-S (dust cover with hinges and mounting screws)
© Pro-Ject Audio Systems · VC-S (starting with S/N
16F0003587
) · Revision 2016.09.06
