3.1.8. High power Dual tilt sensor

1. Open up the device and check that LK2 is configured correctly.
Check that the battery is connected.
2. Reassemble the unit and Press the Panic Button. Check that the LED of the sensor
comes on and stays on for 2 to 3 seconds after you release the button.
3. Press the learn button on the panel once and make sure the LED switches on and
stays on.
4. Press the Panic button on the sensor and hold for 3 sec.
5. The Control Panel Learn LED may switch off.
6. The Control Panel Learn LED should flash and then stop.
7. To program this device to a zone follow the steps in section 3.2 of this document.

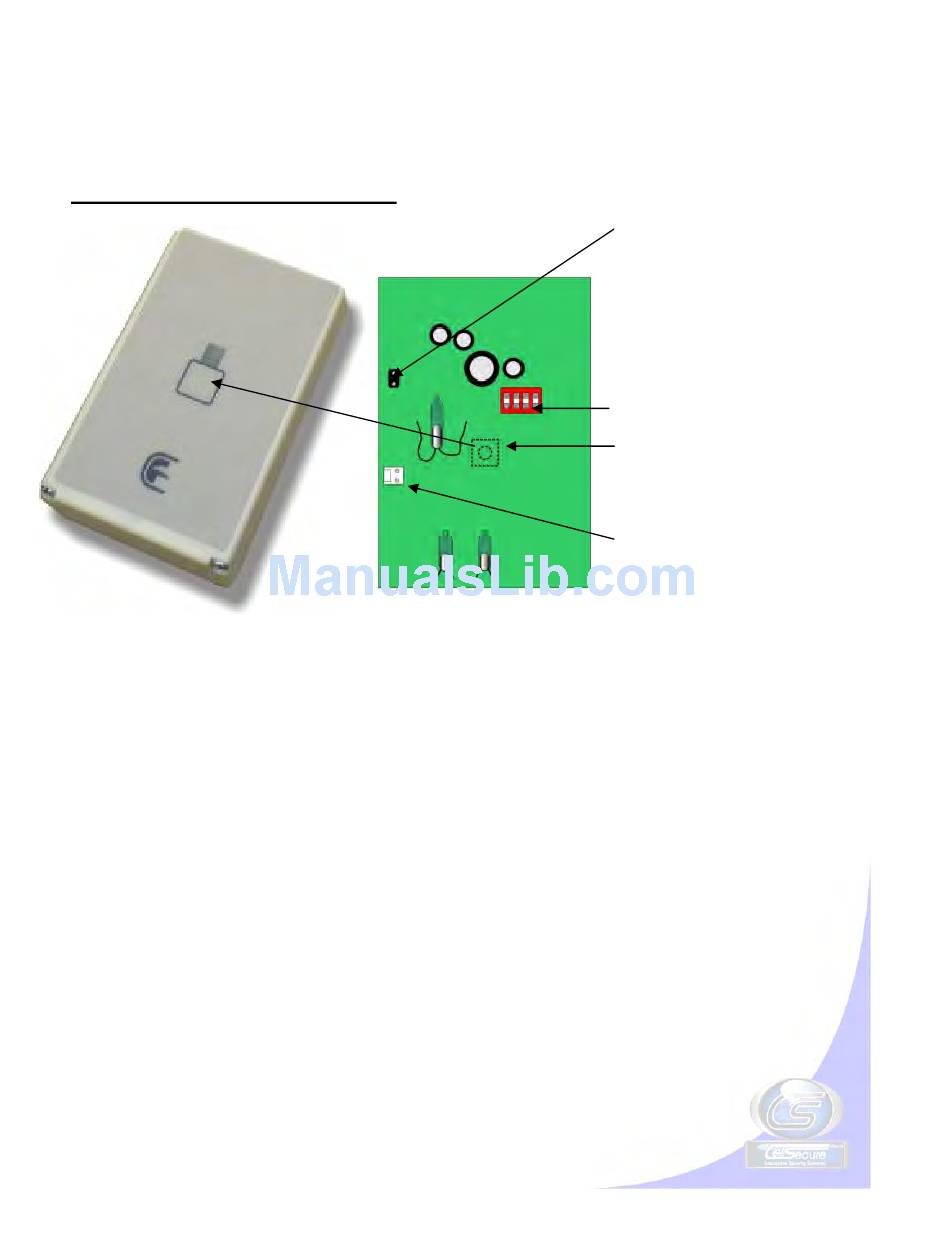

LK2:
• Connected for E6
panels.
• Unconnected for
E12 and E45
panels.
Dipswitch
Panic Button
(Back of board)
Battery Connector
