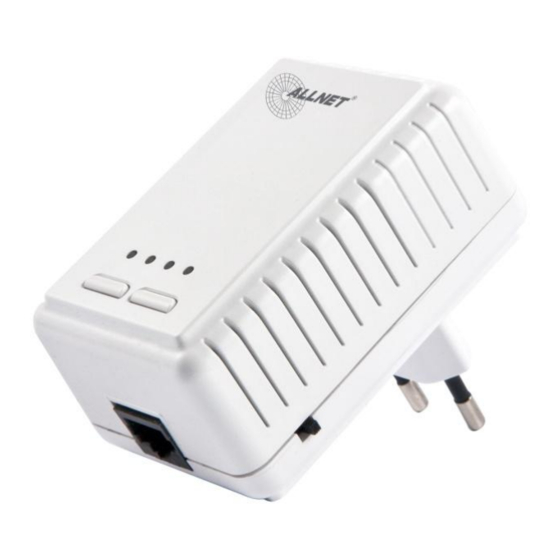

Allnet ALL1682511 User Manual

500mbits powerline wlan n access point
Hide thumbs

Advertisement

Quick Links

ALL1682511
500Mbits Powerline WLAN N Access Point
User´s Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALL1682511 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Allnet ALL1682511

Summary of Contents for Allnet ALL1682511

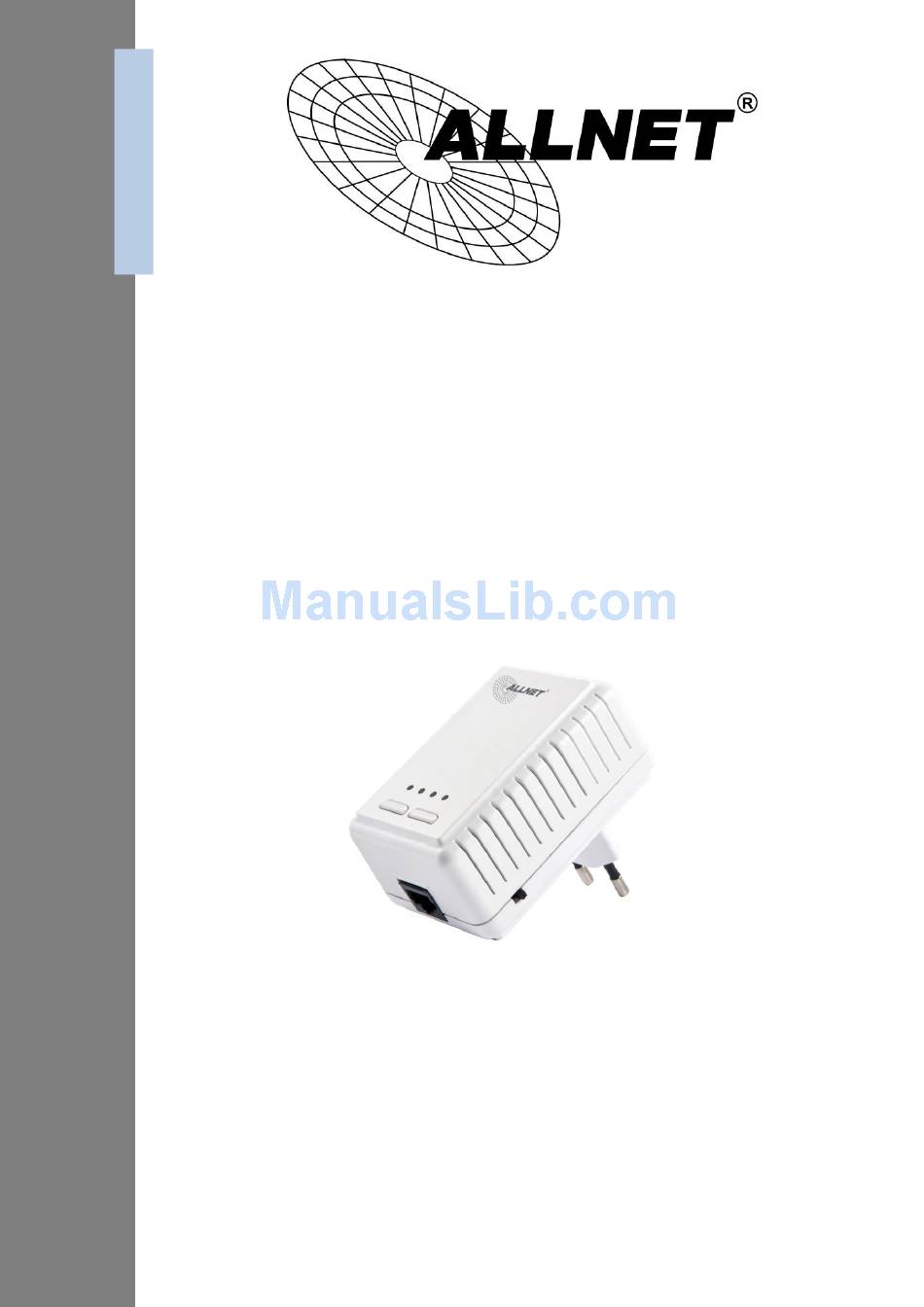

  • Page 1 ALL1682511 500Mbits Powerline WLAN N Access Point User´s Manual...

  • Page 2: Table Of Contents

    Contents Introduction ...........................1 System Requirements ......................1 Configuration .........................1 WPS ............................9 Wireless AP Settings ......................9 FAQ ............................15 Glossary ..........................21 © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...

  • Page 3: Introduction

    1. Introduction The purpose of this document is to present the details on how to use the Wireless AP. There are three interfaces in the AP: Wireless, Ethernet and Powerline. As Figure 1 shows, you can use other Powerline Bridge(s) to connect the AP through power line. Figure 1.
  • Page 4 Below is an example for Windows XP: Right click on the Network icon, choose “Open Network Connections”. Right click on the “Local Area Connection” icon, choose “Properties”. Click on the “Internet Protocol”, then click “Properties”. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 5 “Address” column and press Enter. Type “admin” as the Username and “12345” as the Password in the login page. (default value, if not changed.) Then click the “login” button. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 6 If pop up a “AutoComplete” window, you can make the choice by your need. Then you can see the setup menu. You can click “Use Setup Wizard” to set the AP easily with security. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 7 Then click “Reboot” button to apply your settings. The AP will reboot. Please wait about 20 sec. You can click on the “Network” item to set the IP settings. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 8 You can click on the “AP” item to set the wireless AP settings. Detailed settings are described at next sections. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 9 You can click on the “Radio” item to set the radio settings. You can click on the “DHCP Server” item to set the DHCP Server settings. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 10 You can click on the “Account” item to set the login account and password. You can click on the “AP Status” item to see the information of this device. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...

  • Page 11: Wps

    Please choose the channel for best performance. Normally, no change is needed. Channels 1-11 approved for use in the United States, Canada, Latin America, and Taiwan. Channels 1-14 approved for use in Japan. Channels 1-13 approved for use in other countries. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 12 Wireless Mode There are four choice: “WiFi 11g”, “WiFi 11gn HT20” , “WiFi 11gn HT40+”, “WiFi 11gn HT40-”. The default value is “WiFi 11gn HT20”. Normally, no change is needed. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 13 Security Settings (Authentication Mode/ Encryption Mode) There are four basic security types you can set up: Open: Allows any device to connect to the network, assuming the device’s ESSID matches the access point’s ESSID. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 14 ASCII characters consist of the letters uppercase “A~Z”, lowercase “a~z”, or numbers “0~9”. For example, please select MODE: “Shared”, type “12345” in “Key 1” field, then click “Primary Key” after “Key 1” field. Then click “Save” button. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 15 Enter a WPA Personal Shared Key, at least 8 characters, up to 63 ASCII characters. For example, please select MODE: WPA”, CYPHER: “TKIP”, then select “Personal Shared Key”, type “12345678” in “PSK KEY” field. Then click “Save” button. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 16 Shared Secret: Enter a RADIUS Key up to 32 ASCII characters. For example, please select MODE: WPA”, CYPHER: “TKIP”, then select “Enterprise/RADIUS”, type “192.168.1.5” in “Auth Server” field, “1812” in port field, “testing123” in “Shared Secret” field. Then click “Save” button. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...

  • Page 17: Faq

    1.1 Right click on the “Network Connection” icon and choose “Open Network Connections”. 1.2 Right click on the “Wireless Network Connection” and choose “Properties”. 1.3 On the “Wireless Networks” tab, choose the preferred network and click “Properties” button. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 18 1.4 Make sure the Network Authentication is “Shared” and the Data encryption is “WEP”. 1.5 Don’t select the “Enable IEEE 802.1x authentication for this network”. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 19 Below are some configurations for Windows XP client connected to the RADIUS with Files authentication mode. 3.1 On the “Wireless Networks” tab, choose the preferred network and click “Properties” button. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 20 3.2 Make sure the Network Authentication is “WPA” and the Data encryption is “AES” or “TKIP”. 3.3 On the “Authentication” tab, select “Protected EAP (PEAP)” on the drop-down list, then click “Properties”. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 21 3.4 Disable "Validate server certificate". In Select Authentication Method, select "Secured password (EAP-MSCHAPv2)", then click “Configure…” button. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 22 3.5 Disable "Automatically use my Windows logon name and password". 3.6 Then you can key in your “User name” and “Password” in the “Enter Credentials” dialog. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...

  • Page 23: Glossary

    MAC address, which is relatively simple to be sniffed out and stolen. EAP is built on a more secure public-key encryption system to ensure that only authorized network users can access the network. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 24 Wi-Fi. WMM adds prioritized capabilities to Wi-Fi networks and optimizes their performance when multiple concurring applications, each with different latency and throughput requirements, compete for network resources. © ALLNET GmbH München 2013 - Alle Rechte vorbehalten...
  • Page 25 The safety advice in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The Allnet ALL1682511 conforms to the Council Directives of 2004/108/EC. This equipment meets the following conformance standards:...
