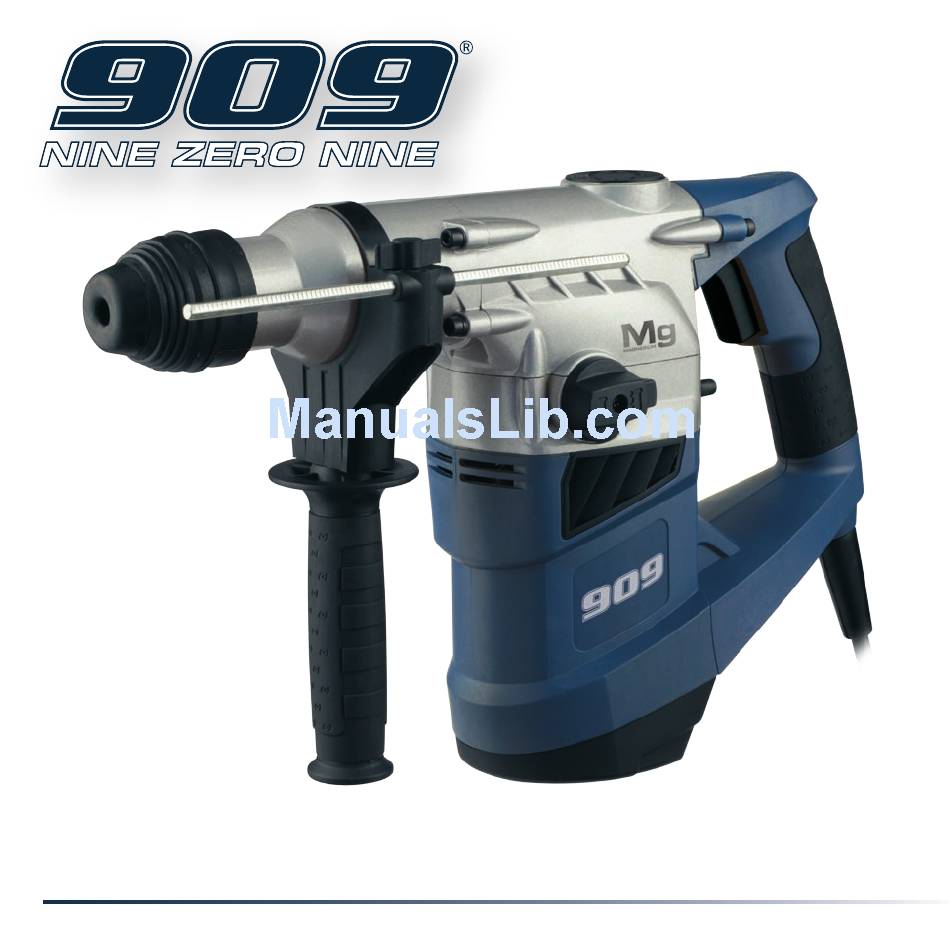

- Page 1 INSTRUCTION MANUAL KHD1050K 1050W ROTA RY H A MMER DRIL L...
-
Page 2: Table Of Contents
CONTENTS Warranty Warranty Power Tools Introduction For full details please visit us at www.909.com Environmental protection Description of symbols Specifications General safety rules Additional safety rules for drills Unpacking Contents of carton Assembly Know your product Auxiliary handle and depth gauge... -
Page 3: Environmental Protection
Manual before using your new 909 Power Tool. Take Drilling capacity special care to heed the Cautions and Warnings. Masonry: 30 mm Your 909 power tool has many features that will make Steel: 13 mm your job faster and easier. Safety, performance, and Wood:... -
Page 4: General Safety Rules
General safety rules f) To reduce the risk of electric shock, the manufacturer recommends the use of a residual current device WARNING. Read all safety warnings and all instructions. with a rated residual current of 30mA or less at Failure to follow the warnings and instructions may result in all times. -
Page 5: Additional Safety Rules For Drills
4) Power tool use and care i) Children should be supervised to ensure that they do not play with the appliance. a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will 5) Service do the job better and safer at the rate for which it was a) Have your power tool serviced by a qualified repair... -
Page 6: Unpacking
Due to modern mass production techniques, it is unlikely should be supervised at all times if they are in the area in that your 909 Power Tool is faulty or that a part is missing. which the tool is being used. It is also imperative that you... -
Page 7: Know Your Product
Know your product 1. On/off trigger switch 2. Main handle 3. Gear case access cover 4. SDS Chuck 5. Rotary selection knob 6. Spring loaded lock button 7. Auxiliary handle 8. Adjustable depth gauge 9. Depth gauge securing wing nut 10. -
Page 8: Auxiliary Handle And Depth Gauge
Auxiliary handle and depth gauge Using the dust protector cap 1. Turn the auxiliary handle (7) 1. The dust cap (12) can be anticlockwise to loosen the used to give added protection collar and slip it over the front against dust and debris of the drill. -
Page 9: Rotation Only Mode Of Operation
Rotation only mode of operation (as used for drilling in Inserting SDS bits wood or metal with the SDS chuck or the keyed chuck) CAUTION. Always ensure that the drill is switched off and plug is removed from the power point before making any 1. -
Page 10: Hints For Use
Hints for use Gearbox maintenance Note. When drilling into masonry, the drilling rate is fast and 1. Carry out the following procedure after each period of burnout of the tip will occur if the drill bit is not constantly approximately 6 hours of use. cleared. -
Page 11: General Inspection
General inspection 1. Regularly check that all the fixing screws are tight. They may vibrate loose over time. 2. If the supply cord needs replacing, the task must be carried out by the manufacturer, the manufacturer’s agent, or an authorised service centre in order to avoid a safety hazard.
