GLP impression X4 XL Instruction Manual

Moving head
Hide thumbs Also See for impression X4 XL:
Table of Contents

Advertisement

Quick Links

Download this manual
from software version: v1.47
support@glp.de
www.glp.de

Advertisement

Table of Contents
loading

Related Manuals for GLP impression X4 XL

Summary of Contents for GLP impression X4 XL

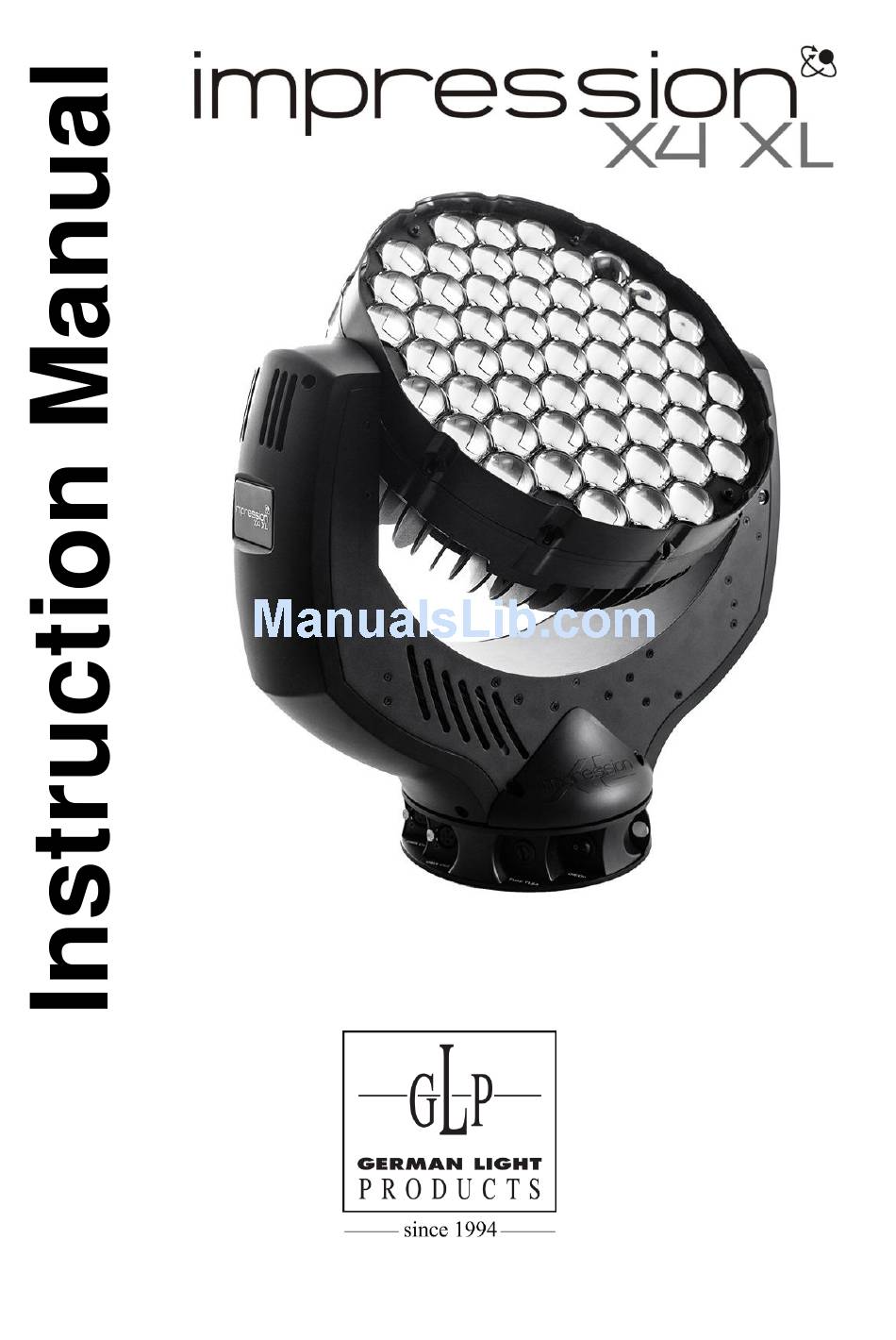

  • Page 1 www.glp.de...
  • Page 2 GLP  German Light Products GmbH Notes: Impression X4 XL manual (v1.0) from software version: v1.47...

  • Page 3: Table Of Contents

    GLP  German Light Products GmbH Table of contents Description of Device....................4 1.1 Safety Instructions .................... 5 Preparation and Installation ................... 6 2.1 Safety information ..................... 6 2.2 Mounting ......................7 2.2.1 Mounting on the Floor (upright)............8 2.2.2 Mounting in hanging position (Head down) ..........

  • Page 4: Description Of Device

    GLP  German Light Products GmbH 1 Description of Device 1. Moving head (actively and passively cooled) 2. Arm with various cooling vents 3. LCD-Display/Menu (data entry) 4. Base with various connectors and Camlock mounting system 5. DMX- Output (5 pin) 6.

  • Page 5: Safety Instructions

    8. Repair, maintenance, and installation work shall be done by qualified or GLP certified staff only. You need to pay attention to the common rules of technology that are not explicitly mentioned in this manual. 9. Use only original GLP spare parts. Any structural modification of the system will terminate all warranty claims.

  • Page 6: Preparation And Installation

    Should you have any questions about the operation of your fixture then please contact your local GLP office, or their authorized distributor, a list of which can be found at http://www.glp.de. Impression X4 XL manual (v1.0)

  • Page 7: Mounting

    GLP  German Light Products GmbH 2.2 Mounting L is fully operational whether it hangs or is mounted to the wall. It can also be operated while standing on the floor. Keep a safety distance of min. 0.5 m towards any easily inflammable materials (decoration etc.).

  • Page 8: Mounting On The Floor (Upright)

    GLP  German Light Products GmbH 2.2.1 Mounting on the Floor (upright) To operate the L in an upright position, please use the dedicated tri-legged floor stand supplied with your fixture. It is fixed to the base of the fixture with fasteners called Camlock quick-release connectors.

  • Page 9: Mounting In Hanging Position (Head Down)

    GLP  German Light Products GmbH 2.2.2 Mounting in hanging position (Head down) To operate the L in a hanging position two (2) omega brackets can be mounted directly to the bottom of the base using the four (4) Camlock connectors.

  • Page 10: Connections

    GLP  German Light Products GmbH 2.4 Connections 2.4.1 Power Supply ~100-240 Volt AC, 50-60 Hz, earth contact type plug - Powercon Connected load 1200 VA (W) T12A (micro-fuse 5x20mm) Please see printing on the case for the right electronic supply! Disconnect from the mains supply for changing the fuse and use only the above described micro-fuse type.
  • Page 11 GLP  German Light Products GmbH Pan/Tilt Manual control for Pan/Tilt movements Movements Special White Manual control for Color temperature Temperature Dimmer Manual control for Dimmer Shutter Manual control for Shutter White Manual control for White Blue Manual control for blue...
  • Page 12 GLP  German Light Products GmbH Pattern Instantaneous value for Pattern channel / bank Zoom Instantaneous value for Zoom Speed adjustment for Pan/Tilt movements  Speed Movements see item below Pan/Tilt Instantaneous value for Pan/Tilt movements Movements Special Instantaneous value for Special...

  • Page 13: Dmx Channel Selection (Dmx Protocol)

    GLP  German Light Products GmbH 4 DMX Channel Selection (DMX Protocol) 4.1 Normal-Mode (26 DMX channels) Channel Function Time and Value 1) PAN High Pan coarse 0° - 660° 0..255 00..FF 0..100 2) PAN Low Pan fine 0..255 00..FF 0..100...
  • Page 14 GLP  German Light Products GmbH Channel Function Time and Value Enable Animation 80..83 50..53 31..32  use channel 17 to select  use channel 18 so set step  use channel 19 to start / for speed Set Dimmer to soft mode 84..87...
  • Page 15 GLP  German Light Products GmbH Channel Function Time and Value 0…255 00…FF 0…100 22) Pattern Direct activation of lenses 28 thru 35 Activation in binary style Section 5 0…255 00…FF 0…100 23) Pattern Direct activation of lenses 36 thru 38...

  • Page 16: Compress-Mode (16 Dmx Channels)

    GLP  German Light Products GmbH 4.2 Compress-Mode (16 DMX channels) Channel Function Time and Value 1) PAN High Pan coarse 0° - 660° 0..255 00..FF 0..100 2) PAN Low Pan fine 0..255 00..FF 0..100 3) Tilt High Tilt coarse 0°...
  • Page 17 GLP  German Light Products GmbH Channel Function Time and Value  use channel 14 to select  use channel 15 so set step  use channel 16 to start / for speed Set Dimmer to soft mode 84..87 54..57 33..34...

  • Page 18: High Resolution/Extended-Mode (27 Dmx Channels)

    GLP  German Light Products GmbH 4.3 High Resolution/Extended-Mode (27 DMX Channels) Channel Function Time and Value 1) PAN High Pan coarse 0° - 660° 0..255 00..FF 0..100 2) PAN Low Pan fine 0..255 00..FF 0..100 3) Tilt High Tilt coarse 0°...
  • Page 19 GLP  German Light Products GmbH Channel Function Time and Value 0…255 00…FF 0…100 20) Pattern Direct activation of lenses 9 thru 16 Activation in binary style Section 2 0…255 00…FF 0…100 21) Pattern Direct activation of lenses 17 thru 19 Activation in binary style Section 3 0…255...
  • Page 20 GLP  German Light Products GmbH Additional Display Indications As a default you'll find the following additional information in the first row of the LCD display: Vxx/xx/xx/xx/x N = Normal Mode / C = Compressed Mode / H = High Res. Mode...

  • Page 21: Maintaining And Cleaning

    GLP  German Light Products GmbH 5 Maintaining and Cleaning L is a fixture of very low maintenance. It is only necessary to clean the air inlets and outlets as well as the optical LED lenses from time to time.

  • Page 22: Technical Specifications

    GLP  German Light Products GmbH 6 Technical Specifications Power supply Power consumption 1200 VA (Watt) Power Input ~100-240 V AC, 50-60 Hz (wide range input) Fuse protection Micro-fuse 5x20 mm, T12A Operational Parameters Max. Ambient 5° - 45°C (integrated overheating switch)

  • Page 23: Dimensions

    GLP  German Light Products GmbH 7 Dimensions PAN movement range: 660° Impression X4 XL manual (v1.0) from software version: v1.47...

  • Page 24: Index

    GLP  German Light Products GmbH 8 Index Mounting in sidewise Position ....... 10 Mounting on the Floor ........8 s ............ 6 BGV C1............7 Normal-Mode ..........14 Camlock ............8 Cleaning............22 Optical parts ..........22 Compress-Mode ..........17 Pan- Movement ..........
  • Page 25 GLP  German Light Products GmbH Impression X4 XL manual (v1.0) from software version: v1.47...
