Summary of Contents for GLP Impression X4 XL

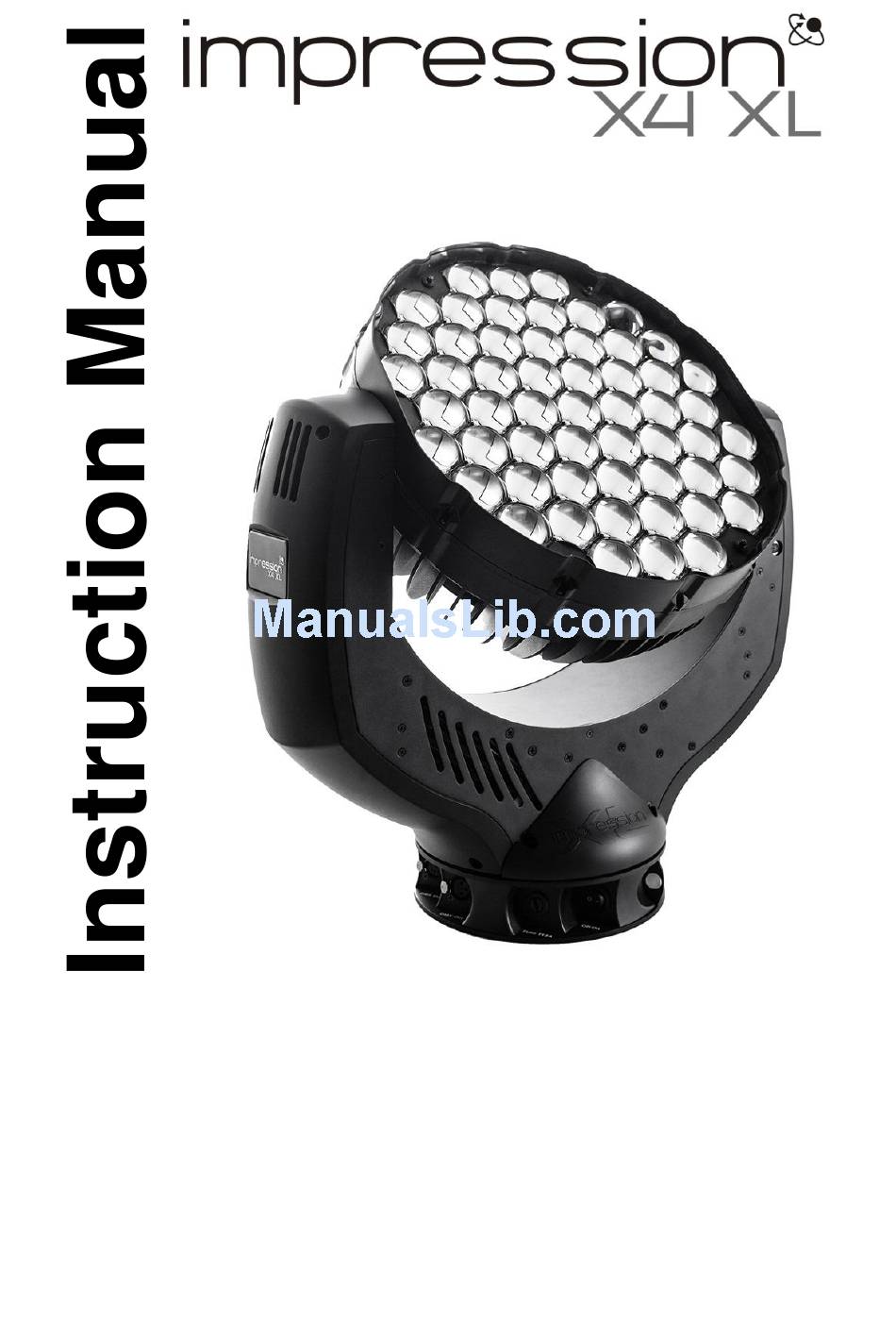

- Page 1 Field Test e-mail: service@glp.de Internet: http://www.glp.de...
- Page 2 Notes: GLP German Light Products GmbH Field Test Documentation...
-
Page 3: Table Of Contents
4.3 High Resolution/Extended-Mode (27 DMX Channels) ........16 Maintaining and Cleaning ..................18 5.1 Safety regulations ................... 18 5.2 Maintenance and Interval (rule-of-thumb) ............18 Technical Specifications ..................19 Dimensions ......................20 Index ........................21 GLP German Light Products GmbH Field Test Documentation... -
Page 4: Description Of Device
10. Blank panel (primed for Ethernet) 11. DMX- Input (3 pin) 12. DMX- Input (5 pin) 13. 2x Safety wire points Note: Only connect one cable to the DMX Input / Output at the same time! GLP German Light Products GmbH Field Test Documentation... -
Page 5: Safety Instructions
8. Repair, maintenance, and installation work shall be done by qualified or GLP certified staff only. You need to pay attention to the common rules of technology that are not explicitly mentioned in this manual. 9. Use only original GLP spare parts. Any structural modification of the system will terminate all warranty claims. -
Page 6: Preparation And Installation
Should you have any questions about the operation of your fixture then please contact your local GLP office, or their authorized distributor, a list of which can be found at http://www.glp.de. GLP German Light Products GmbH... -
Page 7: Mounting
You'll find dedicated connectors on the bottom side of the fixture which should be used. In addition the base is marked with a FRONT arrow allowing consistent orientation during installation. GLP German Light Products GmbH Field Test Documentation... -
Page 8: Mounting On The Floor (Upright)
Insert the two fasteners and turn each 90° to lock them. Do the opposite to release them again. On both sides you'll find eyelets to pull though a fixing strap. This allows for additional bracing of the fixture. GLP German Light Products GmbH Field Test Documentation... -
Page 9: Mounting In Hanging Position (Head Down) (Head Down)
Pay attention to a safe and proper fastening. The safety cable must comply with EN 60598-2-17 Section 17.6.6 and be capable of bearing a static suspended load that is ten times the weight of the fixture and all installed accessories. GLP German Light Products GmbH Field Test Documentation... -
Page 10: Connections
Manual control for Pattern Byte 1 LED 1 - 8 Byte 1 Pattern Manual control for Pattern channel / bank Zoom Manual control for Zoom Speed Manual control for Pan/Tilt movements Movements GLP German Light Products GmbH Field Test Documentation... - Page 11 Instantaneous value for Tilt Pattern Instantaneous value for Pattern Byte 3 Byte 3 Pattern Instantaneous value for Pattern Byte 2 Byte 2 Pattern Instantaneous value for Pattern Byte 1 Byte 1 GLP German Light Products GmbH Field Test Documentation...
- Page 12 4 unterhalb Position Switch automatic position feedback ON/OFF feedback Reverse Pan Invert Pan movements: ON/OFF Reverse Tilt Invert Tilt movements: ON/OFF Reset RESET and new calibration for all functions GLP German Light Products GmbH Field Test Documentation...
-
Page 13: Dmx Channel Selection (Dmx Protocol)
04..07 2..3 Change PWM frequency 100..200 64..C8 40..78 RESET 250..255 FA..FF 98..100 14) Move- No macros ment Movement Size Phase Use "Speed" to adjust macros 0° 01..01 01..01 90° 02..03 02..03 GLP German Light Products GmbH Field Test Documentation... - Page 14 Direct activation of lenses 47 thru 54 Activation in binary style Section 8 0…255 00…FF 0…100 26) Pattern Direct activation of lenses 55 thru 57 Activation in binary style Section 9 GLP German Light Products GmbH Field Test Documentation...
-
Page 15: Compress-Mode (14 Dmx Channels)
Pattern Block 2 See channel 14 4..7 04..07 2..3 Change PWM frequency 100..200 64..C8 40..78 RESET 250..255 FA..FF 98..100 14) Pattern No pattern 0..2 00..02 0..1 Pre-defined patterns 03..253 03..FD 2..99 GLP German Light Products GmbH Field Test Documentation... -
Page 16: High Resolution/Extended-Mode (27 Dmx Channels)
Direct activation of lenses 20 thru 27 Activation in binary style Section 4 0…255 00…FF 0…100 23) Pattern Direct activation of lenses 28 thru 35 Activation in binary style Section 5 GLP German Light Products GmbH Field Test Documentation... - Page 17 N = Normal Mode / C = Compressed Mode / H = High Res. Mode N = Tilt normal / I = Tilt inverted N = Pan normal / I = Pan inverted LED driver version Main CPU version GLP German Light Products GmbH Field Test Documentation...
-
Page 18: Maintaining And Cleaning
Attention: Never let optical parts come into contact with oil or fat. Before running the fixture wait until all parts are dry. Never tough lenses with bare fingers. GLP German Light Products GmbH Field Test Documentation... -
Page 19: Technical Specifications
260° in min. 1,5 seconds (Position Feedback) Weights and Measures Width of the base 521 mm Length of the base 361 mm height (head vertical) 519 mm (incl. standing foot/tripod) Weight (net) 31.0 kg GLP German Light Products GmbH Field Test Documentation... -
Page 20: Dimensions
7 Dimensions PAN movement range: 660° GLP German Light Products GmbH Field Test Documentation... -
Page 21: Index
