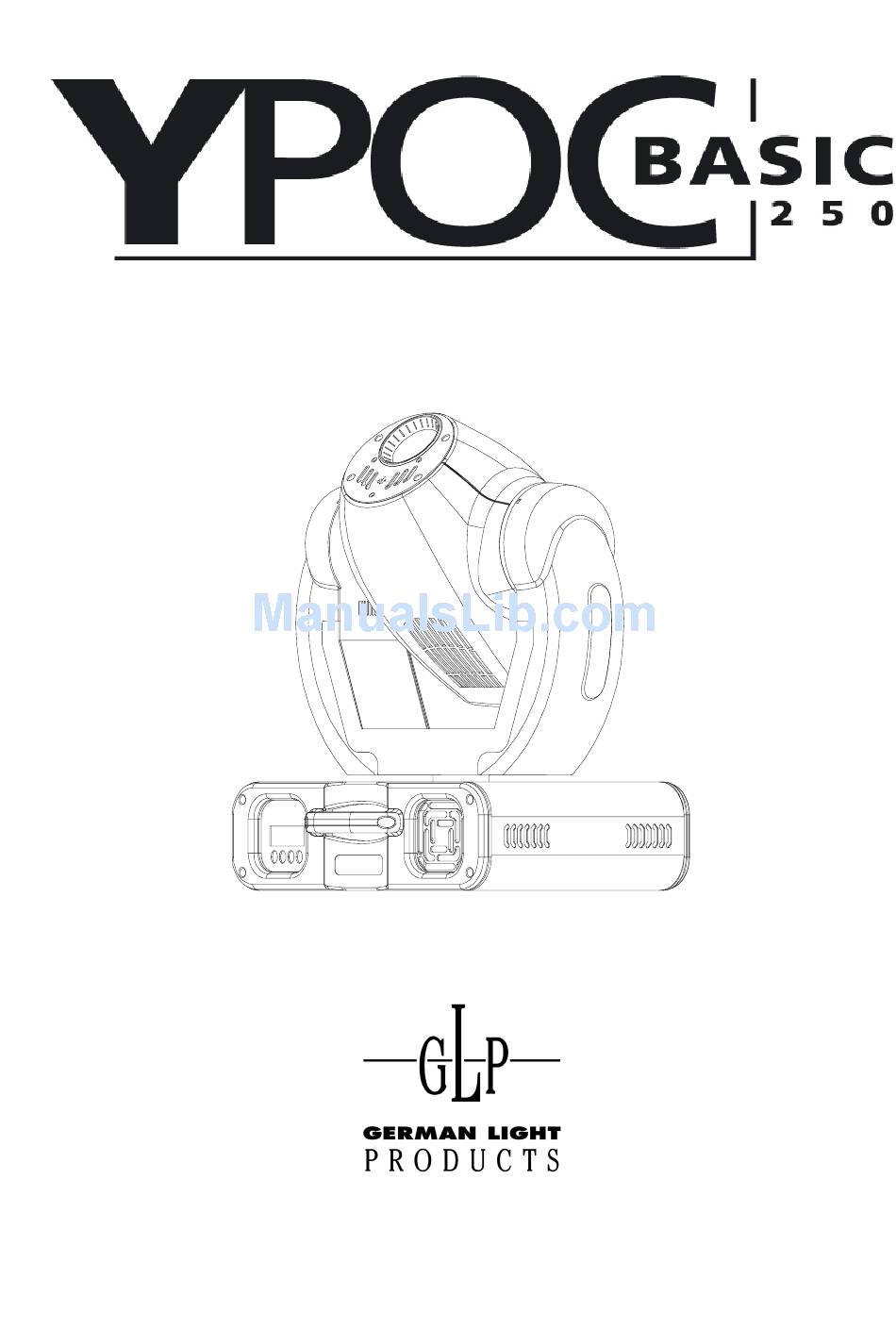

- Page 1 Instruction Manual from software version 1.0 (instruction version 1.05) e-mail: service@glp.de Internet: http://www.GLP.de...
- Page 2 This side is intentionally unlabelled. German Light Production (V1.05)
-
Page 3: Table Of Contents
Table of contents Description of Device ..................... 5 1.1 Safety Instructions.................... 6 Preparation and Installation .................. 7 2.1 Mounting ......................7 2.1.1 Clamps ....................7 2.1.2 Mounting plate ..................7 2.2 Secure the c ................8 2.3 Connections ..................... 9 2.3.1 Power supply .................. - Page 4 Change the Lamp....................20 5.1 Safety Regulations ..................20 5.2 Realize the Lamp Change................21 5.3 Lamp adjustment.................... 21 Change a Gobo ..................... 22 6.1 Safety Regulations ..................22 6.2 Realize the Gobo Change ................22 Maintenance and Cleaning the c ..........
-
Page 5: Description Of Device
Description of Device 1 Moving Head 2 Arm 3 Base 4 Focus Adjustment 5 Up- button 6 Down- button 7 Enter- button 8 Mode- button DMX IN DMX OUT POWER 210V~ FUSE: 230V~ T3.15A @250V 250V~ LAMP: 50H z MSD 250W 60H z 1 . -
Page 6: Safety Instructions
Safety Instructions c is a High-Tech Product. To guarantee a smooth operation, it is necessary to keep following rules. The manufacturer of this device will not take responsibility of damages through disregard of the information in this manual. Warranty adjustments will be canceled. 1. -
Page 7: Preparation And Installation
Preparation and Installation 2.1 Mounting c is fully operational whether it hangs or is mounted to the wall. It can also be operated while standing on the floor. Keep a safety distance of 0.5 m towards any easy inflammable materials (decoration etc.). Install a safety wire that can hold at least 10 times the weight of the fixture. -
Page 8: Secure The Y P Ocb C
2.2 Secure the Regardless of the rigging of the c you have to use a stipulated safety wire. Therefore you have to thread to safety wire through to two provided holes on the backside of the fixture and connect it with the truss-support. Pay attention to a safe and proper fastening. -
Page 9: Connections
2.3 Connections 2.3.1 Power supply 230 Volt, 50 Hz, Connected load 500W <=> 2,2 A (blind current compensation). or 115V, 60 Hz Connected load 500W <=> 4,4 A (blind current compensation). Please see printing on the case for the right Power supply ! 2.3.2 DMX DMX 512 Standard input/output. -
Page 10: The Menu Field
The Menu Field You find the control board on the side part of the base. It allows LED-Display you to make all necessary adjustments of the With the Mode-key you get into the main menu. Afterwards you can navigate through the menu with the Up/Down-keys. Push the Enter-key to get in the next menu level or to confirm your settings. -
Page 11: Adjust The Dmx- Address
(D001) 3.1 Adjust the DMX- Address Right after turning on the c you can see the current DMX- Address. If there is no DMX- Signal the display flashes. D001 For the address setting please follow this procedure: 1. Switch On the c and wait until the fixture reset has finished RESE ' is flashing in the display). -
Page 12: Lamp On/Off (Lamp)
If you want to run the systems simultaneously, one of the s must be switched as the master. All others must be "Slave" Master = OFF. Notice: The Audio function is only working if no DMX is connected. This function can work e.g. on small events or as an emergency program. -
Page 13: Special Functions (Spec)
This function allows you to invert the Tilt movement. Use the Up/Down-keys to select invert . Press Enter to confirm or Mode to cancel. (SPEC) 3.9 Special Functions SPEC This menu allows you to enter further special functions of the In detail they are: (MANU) 3.9.1 Manual Drive... -
Page 14: Lamp Off Via Dmx
(DLOF) 3.9.3 Lamp Off via DMX DLOF This function enables to switch off the lamp via DMX or not. Use the Up/Down-keys to select if you want to switch off the lamp via DMX or if you don't want this function. Press Enter to confirm or Mode to cancel and return to the menu. -
Page 15: Fixture Temperature (Temp)
(TEMP) 3.9.6 Fixture Temperature TEMP This function allows you to read out the actual temperature of the c . Press Enter to confirm or Mode to cancel. Inside temperatures below 80°C are not critical. 80°C and more lead the lamp being switched off at a critical point. -
Page 16: Default Settings (Dfse)
Function Value Remark COLO - 99 - + 99 Color wheel GOBO - 99 - + 99 Gobo wheel SHT1 - 99 - + 99 Shutter 1 SHT2 - 99 - + 99 Shutter 2 clre Adjustments in the internal circuit. (DFSE) 3.9.9 Default Settings DFSE... -
Page 17: Correction Of Faults
(EFLG) 3.9.11 Correction of faults EFLG (Function available for authorized persons only) 3.10 Error and Information Messages HEAt This message appears if you try to switch on the lamp within 5 minutes after having switched off (lamp too hot). The message will appear on the display if the lamp doesn’t ignite within 20 seconds. - Page 18 Channel Function Time and Value color 3 / color 4 (fast) 14..15 0E..0F color 4, Magenta (fast) 16..17 10..11 color 4 / color 5 (fast) 18..19 12..13 color 5, Pink (fast) 20..21 14..15 color 5 / color 6 (fast) 22..23 16..17 color 6, Orange (fast) 24..25...
- Page 19 Channel Function Time and Value Gobo 7 (fast) 24..27 18..1B 9..10 Gobo 8 (fast) 28..31 1C..1F 11..12 Gobo 9 (fast) 32..35 20..23 13..14 Gobo 1 (open, fast) 36..39 24..27 14..15 Gobo 1 (open, slow) Chaser from gobo to 40..65 28..41 16..25 gobo max.
-
Page 20: Change The Lamp
Channel Function Time and Value 270° 14..15 0E..0F 0° 16..17 11..11 90° 18..19 12..13 180° 20..21 14..15 270° 22..23 16..17 0° 24..25 18..19 90° 26..27 1A..1B 10,4 180° 28..29 1C..1D 11,2 270° 30..31 1E..1F TILT size / phase see also PAN 32..63 20..3F 13..25... -
Page 21: Realize The Lamp Change
Realize the Lamp Change 1. Pull out the main plug! 2. Open the upper shell of the head casing by loosening the 4 Phillips screws. Two on the front side and 2 on the back side of the head. 3. Open the 3 screws at the lamp sheet and remove it. 4. -
Page 22: Change A Gobo
LAMP 1. Strike the lamp (for example in the menu) and wait a while until full intensity of the lamp. 2. Direct the beam straight on a flat and bright surface/wall (beam open, white, no gobo, no effects). Remark: As the optimum distance of the lamp from lens was adjusted during the installation or changing the lamp (by turning the screw A), it is necessary to adjust only the second position by turning the screw B, in order to center the so-called 'Hot-Spot' (the brightest part of the beam). -
Page 23: Maintenance And Cleaningleaning The Y P O Cleaning
4. Change the gobo and fix it again under the spring. Pay attention on a safe fit. 5. Close the c in reverse order. Attention: If you use glass gobos, the non-vaporized side must be fitted towards the lamp direction. Maintenance and Cleaning the It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not built up on or within the fixture. -
Page 24: Cleaning The Optical System
suggestions from our practice experience. Position Interval In this way Outside optic weekly soft cloth and glass cleaning fluid Color filter monthly soft cloth and glass cleaning fluid Gobos yearly vacuum cleaner, airbrush, etc. Glass gobos monthly soft cloth and glass cleaning fluid Dimmer/Shutter yearly vacuum cleaner, airbrush, etc. -
Page 25: Technical Specification
Technical Specification Power supply Power consumption 500 Watt (blind current compensated) EU-model AC 230V / 50 Hz~ Fuse protection T3,15A, 250 BasicV, 5x20 mm (fine-wire fuse) US-model AC 115V / 60 Hz~ Fuse protection T6,3A, 115V, 5x20 mm (fine-wire fuse) Lamp Type 1 MSD 230V/250 BasicW, socket GY-9,5... - Page 26 Brilliant Blue Blue Blue Jade Purple Turquoise Magenta Italian Pink Blue Orange Canary German Light Production (V1.05)
-
Page 27: Index
Index Invert ..............12 Adjustments ...........15 aspheric lens ............24 Lamp adjustment ..........21 Audio ..............11 Maintenance ........... 23 BGV C1 ..............7 Measures ............25 Menu Field ............10 Mounting ............7 Calibrations ............15 Mounting plate ..........7 Change a Gobo..........22 Circumference..........23 Clamps ...............7 Pan- movement .......... - Page 28 German Light Production (V1.05)
