Summary of Contents for GLP impression X1

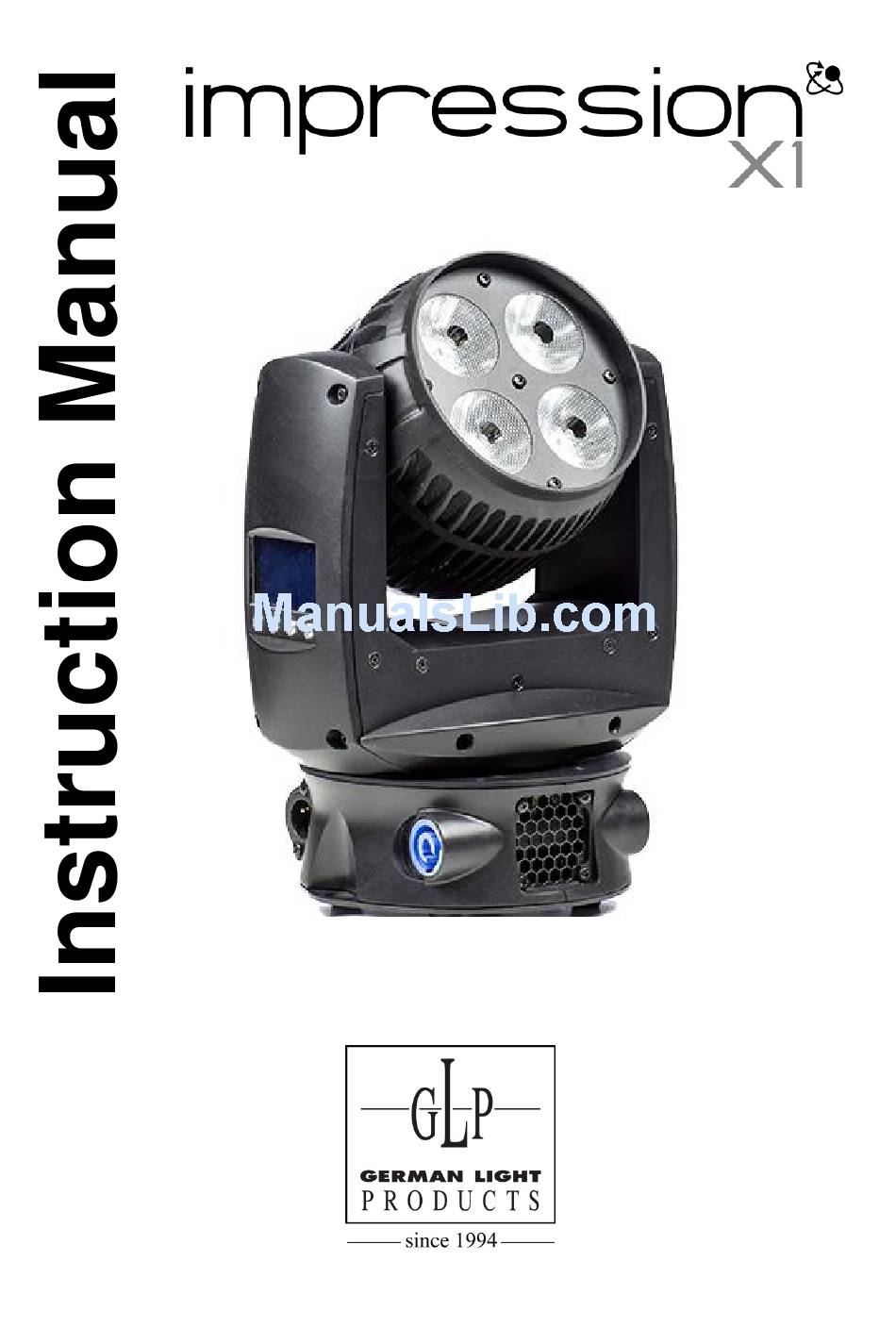

- Page 1 1.0 support@glp.de www.glp.de...
- Page 2 GLP German Light Products GmbH Notes: impression X1 manual (v1.0) from software version: 1.0...
-
Page 3: Table Of Contents
GLP German Light Products GmbH Table of contents Description of Device....................4 Safety Instructions ....................5 Mounting ........................7 3.1.1 Operating on the Floor (Upright) ............8 3.1.2 Mounting in hanging position ............... 8 3.1.3 Mounting in sideways Position ............. 9 3.2 Securing the Fixture .................. -
Page 4: Description Of Device
GLP German Light Products GmbH 1 Description of Device 1. Moving head (actively and passively cooled) 2. Arm of device 3. LCD-Display/Menu (data entry) 4. Base with various connectors, air in/outlets and mounting system 5. Fuse holder (on the bottom) -
Page 5: Safety Instructions
GLP German Light Products GmbH 2 Safety Instructions 1 is a High-Tech Product. To guarantee a smooth operation, it is necessary to respect the following rules. The manufacturer of this device will not take responsibility for damages through any disregard of the information provided in this manual. - Page 6 7. Repair, maintenance, and installation work shall be done by qualified or GLP certified staff only. You need to pay attention to the common rules of technology that are not explicitly mentioned in this manual. 8. Use only original GLP spare parts. Any structural modification of the system will terminate all warranty claims.
-
Page 7: Mounting
GLP German Light Products GmbH 3 Mounting 1 is fully operational whether it hangs or is mounted to the wall. It can also be operated while standing on the floor. Keep a safety distance of min. 0.5 m towards any easily inflammable materials (decoration etc.). -
Page 8: Operating On The Floor (Upright)
GLP German Light Products GmbH 3.1.1 Operating on the Floor (Upright) 1 is fitted with 4x solid rubber feet which allows a stable standing of the fixture. An additional securing is usually not required. Please pay attention to an even and gripping surface. -
Page 9: Mounting In Sideways Position
GLP German Light Products GmbH 3.1.3 Mounting in sideways Position To operate the 1 in a sideways position please use two half-couplers (clamps) attached to the bottom side of the base. They should be attached with M10 mm thread bolts (max. length 11mm). -
Page 10: Securing The Fixture
3.3.2 NEUTRIK powerCON The IMPRESSION X1 is fitted with NEUTRIK powerCON locking 3 conductor AC connectors. The grey connector must be used to draw AC mains power from the fixtures` throughput sockets and the blue connectors must be used to supply power at the fixtures` power input socket. -
Page 11: Dmx
GLP German Light Products GmbH Please note that there are two different generations of NEUTRIK powerCON connectors (Type NAC3FCA). Due to different mechanical dimensions, only the newer version of these two can be used for fixtures. You can identify the correct version by the imprint on the side and the ... -
Page 12: The Menu Field
GLP German Light Products GmbH 4 The Menu Field You’ll find the control board on the side part of the arm. It allows you to make all necessary adjustments of the . With the Mode-key you get into the main menu. Afterwards you can navigate through the menu with the Up/Down-keys. - Page 13 GLP German Light Products GmbH Diagnose of Boot-loader Diagnose Diagnose Diagnose fixture functions Temperature Read out head temperature Head Default full Reset all settings to factory defaults feature Display Auto switch-off display illumination after 10 Black out seconds DMX hold...
-
Page 14: Dmx Channel Selection (Dmx Protocol)
GLP German Light Products GmbH 5 DMX Channel Selection (DMX Protocol) 5.1 Normal Mode (18 DMX channels) Channel Function Time and Value 1 Pan - High Pan coarse 0° - 660° 0..255 2 Pan - Low Pan fine 0..255... - Page 15 GLP German Light Products GmbH 11 Intensity Dimmer 0 - 100% 0..255 12 CTO No CTO Applicable 0..7 Continuously 2,500k – 10,000k for ALL colors 8..255 13 Special RESET > 1 sec 250..255 14 Movement No macros 0..0 Macros...
-
Page 16: Compressed Mode (14 Dmx Channels)
GLP German Light Products GmbH 5.2 Compressed Mode (14 DMX channels) Channel Function Time and Value 1 Pan - High Pan coarse 0° - 660° 0..255 2 Pan - Low Pan fine 0..255 3 Tilt - High Tilt coarse 0°... - Page 17 GLP German Light Products GmbH 12 Special RESET > 1 sec 250..255 No rotation 0..5 rotation slow – fast Pan rotation CW 6..130 Pan rotation CCW fast - slow 131..255 No rotation 0..5 Tilt - rotation slow – fast Tilt rotation CW 6..130...
-
Page 18: Maintaining And Cleaning
GLP German Light Products GmbH 6 Maintaining and Cleaning 1 is a fixture of very low maintenance. It is only necessary to clean the air inlets and outlets as well as the optical LED lenses from time to time. -
Page 19: Technical Specifications
GLP German Light Products GmbH 7 Technical Specifications Power supply Power consumption 85 VA (Watt) Power Input Auto sensing 100-240 V AC, 50-60 Hz Power connectors NEUTRIK powerCON Power-in: NAC3FCA / NAC3MPA (blue) Power-out: NAC3FCB / NAC3MPB (grey) -
Page 20: Dimensions
GLP German Light Products GmbH 8 Dimensions impression X1 manual (v1.0) from software version: 1.0... -
Page 21: Index
GLP German Light Products GmbH 9 Index BGV C1............7 Optical parts ..........18 Cleaning............18 Pan- Movement ..........19 Power Supply ..........10 Description of Device ........4 Dimensions ............ 20 Safety distance ..........7 DIN VDE 0711-217 .......... 7 Safety Instructions .......... - Page 22 GLP German Light Products GmbH impression X1 manual (v1.0) from software version: 1.0...
