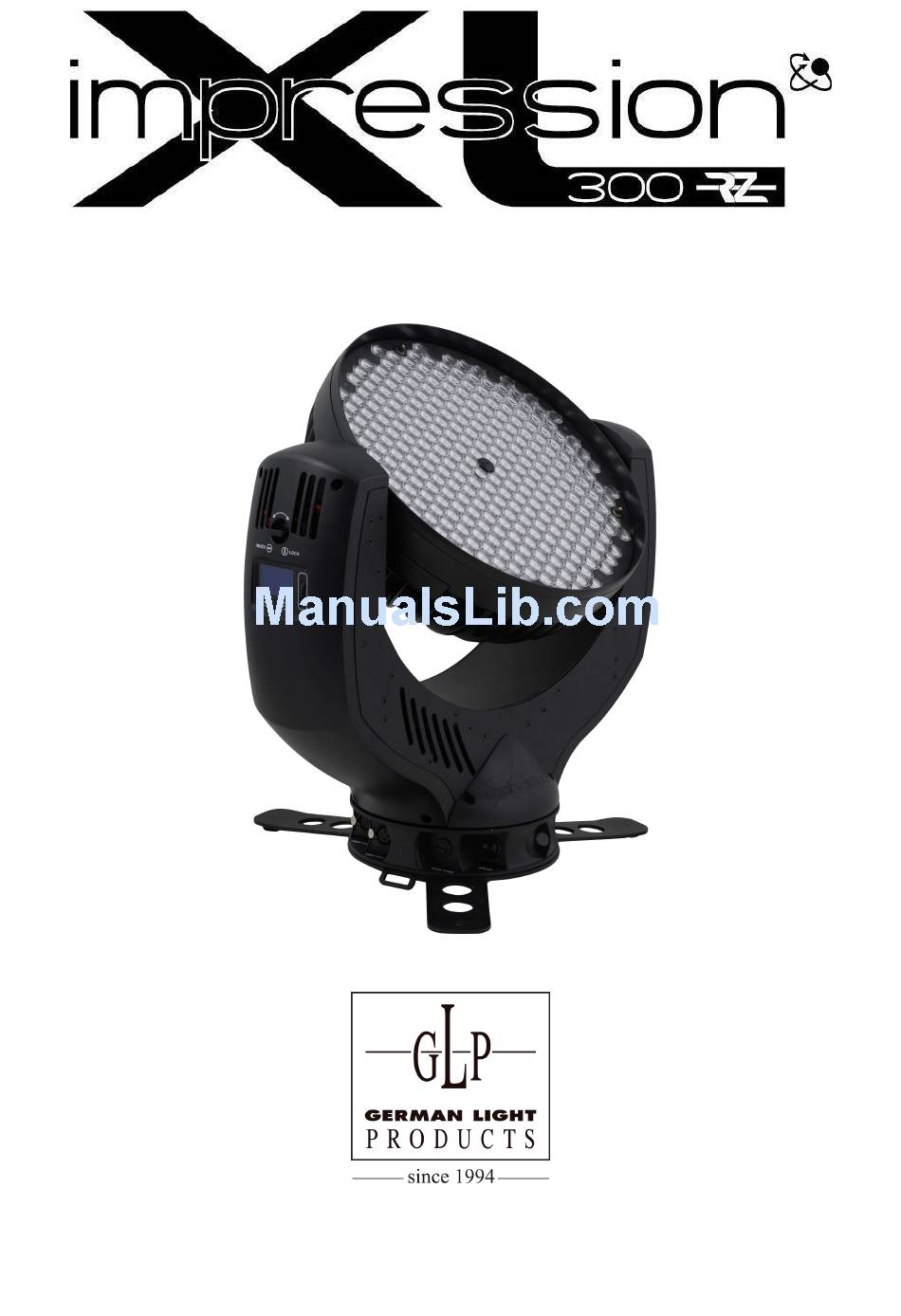

- Page 1 Instruction Manual from Software Version 1.01/03/02 (Manual Version 1.2) e-mail: service@glp.de Internet: http://www.glp.de...
- Page 2 For your notes: German Light Products GmbH (Manual Version 1.2) / from Software Version 1.01/03/02)
-
Page 3: Table Of Contents
Table of content Description of Device ......................4 Safety Instructions ........................5 Preparation and Installation....................6 Mounting ............................6 2.1.1 Mounting on the floor (upright) ..................7 2.1.2 Mounting in hanging position (Head down) ..............7 2.1.3 Mounting in sideway position ..................8 Securing the Device ........................9 Connections ..........................9 2.3.1 Power Supply .......................9... -
Page 4: Description Of Device
1 Description of Device 1. Moving head (actively and passively cooled) 2. Arm with various cooling vents 3. Tilt-lock to secure and lock the tilt movement see also 4. LCD-Display/Menu (data entry) 5. Base with various connectors and Camlock mounting system Safety eyelets b a se sid e 1... -
Page 5: Safety Instructions
Safety Instructions is an advanced technology product. To guarantee smooth operation, it is necessary to follow the following instructions. The manufacturer of this device will not take responsibility of damages through any disregard of the information in this user manual. Warranty claims will also be cancelled in the event of the system casing being opened. -
Page 6: Preparation And Installation
10. Repair-, maintenance- and installation work should only be performed by qualified or GLP certified staff. You need to pay attention to the common rules of technology that are not explicit mentioned in this manual. -
Page 7: Mounting On The Floor (Upright)
2.1.1 Mounting on the floor (upright) To operate the B in an upright position, please use the dedicated floor-stand which ships with all original fixtures. The floor stand is mounted to the base of the fixture using the two Camlock quarter turn fasteners. Line up and engage the camlock connectors from the floor stand into the base of the fixture and turn the two fasteners 90°... -
Page 8: Mounting In Sideway Position
To operate the L in a sideways position, please use an additional mounting bar, available from GLP or one of their agents.. This mounting bar is fixed via the four camlock quick-release connectors. Two half-couplers or clamps are then used to hang the mounting bar. This technique is necessary to cope with the additional torque in this mounting position. -
Page 9: Securing The Device
2.2 Securing the Device Regardless of the mounting method of the L you'll have to use a secondary safety wire. This safety wire can be attached to the fixture by threading it through one of the two holes provided on the base of the fixture. Ensure that the safety wire is securely fastened through the fixture and the fixtures mounting support. - Page 10 MODE - ENTER Level1 Level 2 Level 3 Level 4 Remark DMX Start Address Define the DMX start address Special Manual DMX Manual control of all system functions Manual control for Pan (X-movement) Speed Speed adjustment for Pan/Tilt movements Movements see also item below Pan/Tilt Manual control for Pan/Tilt movement...
- Page 11 LED PWM Shows Dimmer-1-Software Version Vers 1 LED PWM Shows Dimmer-2-Software Version Vers 2 LED PWM Shows Dimmer-3-Software Version Vers 3 Pos Feed Tilt Internal data and function diagnose Delta Temperature Indicates the present arm temperature Temperature Indicates the present head temperature Head PAN/TILT Switches power for Pan/Tilt ON or OFF...
-
Page 12: Dmx Channel Sheet
Zoom Instantaneous value for zoom Self Test Starts a self-test procedure of the device Indicates the overall operation time of the Live time system Display Adjust the display Blackout ON/OFF: Display OFF Select DMX Please select the desired DMX Mode Mode Fixture works in "Compressed"... - Page 13 Channel Function Time and Value White Color temperature 112..119 70..77 44..46,5 5600K White - CTB Color temperature 120..127 78..7F 47..49,5 7200K Rainbow Effect Stop Rainbow Effect slow - fast 129..223 81..DF 51..88 Rainbow Effect, random colors slow - fast 224.255 E=..FF 89..100 6) Red...
- Page 14 Channel Function Time and Value Lying eight size / phase see also PAN 192..223 C0..DF 76..87 Random movement size see also PAN 224..255 E0..FF 88..100 14) Speed Pan/Tilt relative movement 0..1 00..01 0..0,5 Pan/Tilt Pan/Tilt slow – fast Pan Min. 660° = 200s 2..255 02..FF 1..100...
- Page 15 Channel Function Time and Value White - CTO Color temperature 104..111 68..6F 41..43,5 3200K White Color temperature 112..119 70..77 44..46,5 5600K White - CTB Color temperature 120..127 78..7F 47..49,5 7200K Rainbow Effect Stop Rainbow Effect slow - fast 129..223 81..DF 51..88 Rainbow Effect, random colors slow - fast...
- Page 16 Channel Function Time and Value Up-dimming then Shutter closing slow - fast 48..79 30..4F 19..31,5 (random patterns) Shutter open then down-dimming slow - fast 80..111 50..6F 32..43 (random patterns) Up-dimming then down-dimming slow - fast 112..143 70..8F 44..56 (random patterns) Strobe effect pause 5s to 1s 144..199...
-
Page 17: Maintaining And Cleaning The I M P R E S S I O N
c) Standard Mode (Hold down the ENTER- button during power ON) After switching on the fixture, the DMX start address will be set to [001]. All other settings will remain unchanged. Additional Display Indications As a default you'll find the following additional information in the first row of the LCD display: XX/X/XX 06 = 600Hz / 12 = 1200Hz N = Normal Mode / C = Compressed Mode / H = High Res. -
Page 18: Technical Specifications
Attention: • Never let optical parts come into contact with oil or fat. • Before running the fixture wait until all parts are touch dry. • Never touch lenses with bare fingers. 6 Technical Specifications Power supply Power consumption 1200 VA (Watt) Power Input ~100-240 V AC, 50-60 Hz (auto sensing input) Fuse protection... -
Page 19: Index
7 Index Mounting in hanging Position ......7 Mounting in sidewise Position ......8 BGV C1............6 Mounting on the Floor ........7 Circumference ..........17 Normal-Mode ..........12 Cleaning............17 Compress-Mode ........14, 15 Optical parts ..........18 Description of Device ........4 DIN VDE 0711-217 .......... - Page 20 German Light Products GmbH (Manual Version 1.2) / from Software Version 1.01/03/02)
