HT-R290
Ref. No. 4260
022011
AV RECEIVER
HT-R290(B)
MODEL
RC-762M
HT-R290 for AVX-290 Black model
B MDC
120V AC, 60Hz

Advertisement

Table of Contents
loading

Related Manuals for Onkyo HT-R290

Summary of Contents for Onkyo HT-R290

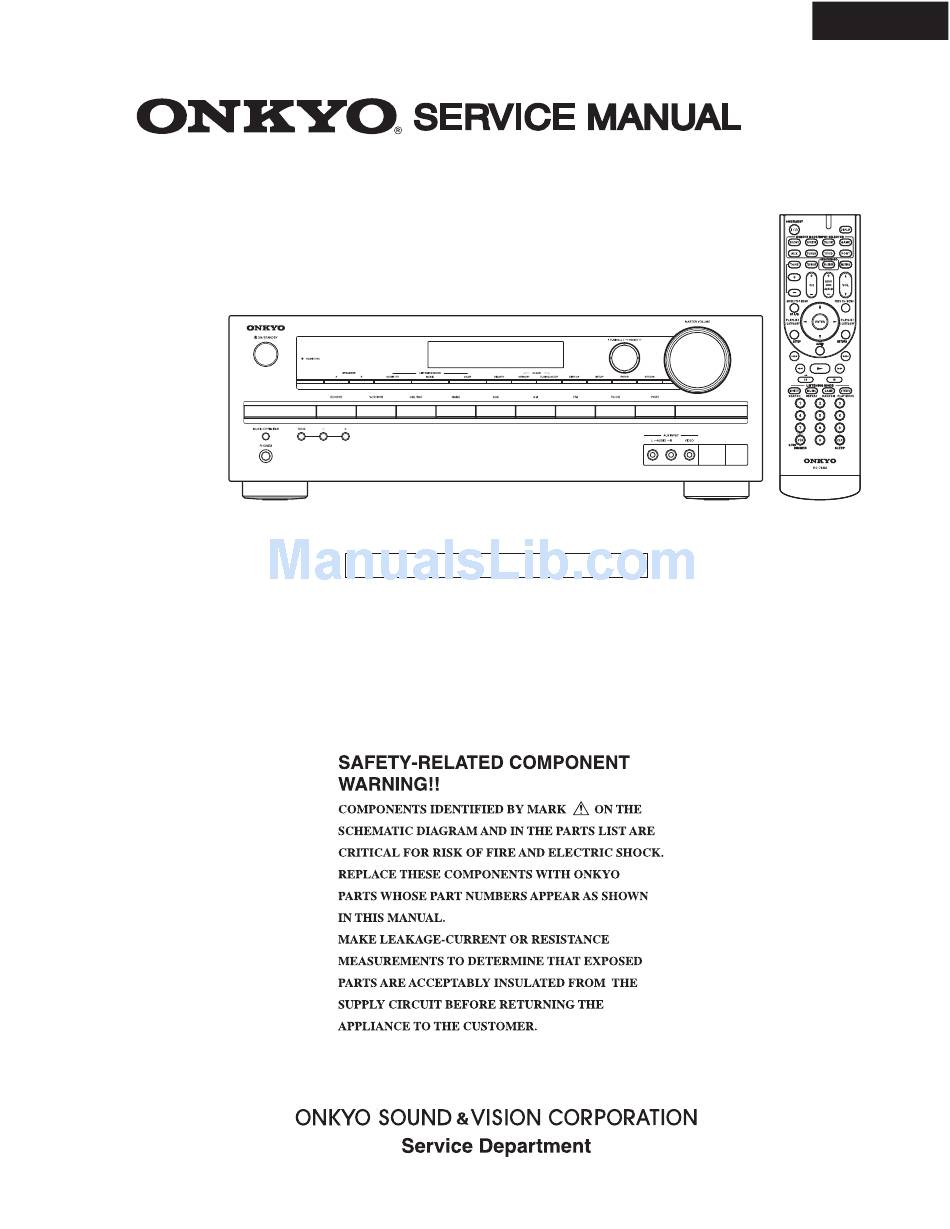

  • Page 1 HT-R290 Ref. No. 4260 022011 AV RECEIVER HT-R290(B) MODEL RC-762M HT-R290 for AVX-290 Black model B MDC 120V AC, 60Hz...

  • Page 2: Exploded Views

    HT-R290 EXPLODED VIEWS-1 A360 A103 A105 P901 x 5 pcs. x 23 pcs. A112 U0011 A056 A340 A342 x 9 pcs. A109 x 2 pcs. U0030 U010 P2800 A017 A112 P101 P8001 A055 L=40mm A101 A270 x 4 pcs. P2001...
  • Page 3 HT-R290 EXPLODED VIEWS-2 A112 P701 L=70mm P703 A268 A225 x 22 pcs. A112 A112 L=25mm L=40mm A060 U0016 A273 A201 A260 x 2 pcs. U0020 x 2 pcs. A221 A219 U0021 A216 A321 A207 A213 A214 A217 A211 A202 A214 A260 x 2 pcs.

  • Page 4: Schematic Diagram/ Block Diagram

    TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-1 TX-SR309/HT-R390/HT-R548/HT-RC330 BLOCK DIAGRAM-1 AUDIO Section ( PART-1 ) BADIS-0654 2/4 BLOCK DIAGRAM HEADPHONES AUDIO SECTION PART-1 Q4001 R2A15218FP TONE (FR) BADIS-0654 1/4 POWER AMPLIFIER SPEAKER TERMINALS (HT-R548 ONLY) (FR) MIC AMP...
  • Page 5 TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-2 BLOCK DIAGRAM(VIDEO) Model No. TX-SR309/509/609/TX-SA509/609/HT-R290/390/548/590/690/990/HT-RC330/360/DTR-20.3/30.3 SCHEMATIC DIAGRAM (PART-2) BLOCK DIAGRAM TX-SR309, TX-SR509, HT-R290, HT-R390, HT-R548, HT-R590, HT-RC330 VIDEO SECTION JAPAN Model TX-SR609, HT-R690, HT-R990, TX-SA609, HT-RC360, DTR-20.3, DTR-30.3 PART-2 TX-SR609, TX-SA609, DTR-30.3...
  • Page 6 TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-3 AUDIO INPUT SECTION PART-3 MODEL NO. TX-SR309/HT-R390/HT-R548/HT-RC330/HT-R290 SCHEMATIC DIAGRAM (PART-3) AUDIO INPUT U0010 BAAF-0614 FRONT UNIVERSAL PORT 1mm FFC CABLE P8001A P8002A TO BCVD-0656(PART 07) FROM PART09(DIS) TUNER FFC CABLE(1.25mm) 1mm FFC CABLE...
  • Page 7 TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-4 AMP. SECTION PART-4 NOTICE Q6001, Q6002, Q6003 and the surrounding parts have been changed as follows in the middle of production. How to identify the IC Change C6120, C6121 and C6122 at the same time when Q6001 is changed.
  • Page 8 TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-7 VIDEO SECTION PART-7 MODEL No. TX-SR309/ HT-R390/ HT-R548/ HT-RC330 SCHEMATIC DIAGRAM (Part-7) VIDEO SECTION U0022 BAVD-0656 FrontUSB need parts R2602 R2603 R2604 EXCEPT T3, H3, H54, H33, H5, T5 Q2600 (For HDMI Upcon)

  • Page 9: Display Section

    TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-9 Model No. TX-NR309/HT-R290/390/548/590/HT-RC330 Schematic Diagram (Part-9) Display Section DISPLAY SECTION PART-9 U0020 BADIS-0654 Q7002 16-BT-162GNK +3.3VMPU FLAC1 FLDCLK FLDSDO FLAC2 223K C7011 FLDCS R7007 +3.3VMPU KEYINT0 FLDRST KEYINT1 C7010 C7012 223K...
  • Page 10 TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-10 Model No. TX-NR309/HT-R290/390/548/590/HT-RC330 PS SECTION PART-10 Schematic Diagram (Part-10) PS Section HT59 MDD/MDC: UDZS3.9B U0024 HT59 MPP/MMO: UDZS5.6B D933 T3/HT29/HT33/HT39/HT54 MDD/MDC: UDZS4.3B BAPS-0659 T3/HT29/HT33/HT39/HT54 MPP/MMO: UDZS5.1B KDS4148U D935 D934 POFF NOTE...
  • Page 11 TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330 SCHEMATIC DIAGRAM/ Model No. TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330 Schematic Diagram (Part-14) MPU Section UPGRADE P753A P751A IMSA-9618S-09A BLOCK DIAGRAM-14 U0030 BAHDM-0678 to RB Section No USE INITIAL MPU SECTION PART-14 ***MPU INITIAL SETTING VALUE***...
  • Page 12 TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-15 HDMI SECTION PART-15 Nodel No. TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330/ HT-R590 Schematic Diagram (Part-15) HDMI Section U0030 BAHDM-0678 BAHDM-0680 to CODEC Section (Part-18) to DSP Section (Part-18) 390,290,548,590 only C8117 102J...
  • Page 13 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-18 DSP/ CODEC/ DAC SECTION PART-18 U0030 BAHDM-0678 Model No. TX-SR309 / HT-R290 / HT-R390 / HT-R548 / HT-RC330 Schematic Diagram (Part-18) DSP/CODEC/DAC Section to HDMI Section (Part-15) to MICON Section (Part-14) Boot Mode SPI1 Boot [7]...
  • Page 14 TX-SR309/ HT-R390/ HT-R290/ HT-RC330/ HT-R548 PRINTED CIRCUIT BOARD VIEWS-1 U001 BAAF-0614 A-side view U0014 U0016 POWER SUPPLY SECONDARY WIRING CIRCUIT PC BOARD CIRCUIT PC BOARD BAETC-0620 BAETC-0618 U0013 U0012 SPACER PC BOARD THERMAL SENSOR CIRCUIT BAETC-0617 PC BOARD BAETC-0616 U0010...
  • Page 15 TX-SR309/ HT-R390/ HT-R290/ HT-RC330/ HT-R548 PRINTED CIRCUIT BOARD VIEWS-1A QPWBCAF0614B1 QPWBCAF0614B1 S&O AXI/RAD 25140620 QPWBCAF0614B1 BCETC-0620 25140617 25140617 D961 BCETC-0617 BCETC-0617 U001 D960 R950 JL951B JL954A JL952A JL951A 25140618 BAAF-0614 BCETC-0616 BCETC-0618 R960 QPWBCAF0614B1 C950 C962 (U0010 to U0016) J950...
  • Page 16 TX-SR309/ HT-R390/ HT-R290/ HT-RC330/ HT-R548 PRINTED CIRCUIT BOARD VIEWS-1B QPWBCAF0614B1 U001 25140618 QPWBCAF0614B1 QPWBCAF0614B1 25140617 25140617 BAAF-0614 QPWBCAF0614B1 (U0010 to U0016) TP631 B-side view R4402 R4400 C4410 C4007 C4015 R4413 C4417 R4408 C4016 C4017 C4018 D4218 R4406 R4419 TU_LI +5VTU...

  • Page 17: U0021

    TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-R590/ HT-RC330 PRINTED CIRCUIT BOARD VIEWS-2 U002 BADIS-0654 (U0020 to U0024) A-side view U0020 DISPLAY CIRCUIT PC BOARD BADIS-0654 U0021 STANDBY SWITCH CIRCUIT PC BOARD BADIS-0655 U0022 U0024 VIDEO CIRCUIT PC BOARD PRIMARY WIRING CIRCUIT PC BOARD...
  • Page 18 TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-R590/ HT-RC330 PRINTED CIRCUIT BOARD VIEWS-2A S&O AXI/RAD U002 C7013 C7015 5.+3.3VMPU BADIS-0654 01.+5.0VDIS 09.MICDET 17.REMIN 4.FLAC2 Q7002 02.KEY0 10.GNDDG 18.KEYINT1 3.-VP TUN UP 03.KEY1 11.GNDDG 19.FLDRST 2.FLAC1 S7150 04.N.C 12.VOLB 20.KEYINT0 (U0020 to U0024) 1.+3.3VMPU C7033 05.GNDA_AUX...
  • Page 19 TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-R590/ HT-RC330 PRINTED CIRCUIT BOARD VIEWS-2B U002 01.+5.0VDIS 09.MICDET 17.REMIN 5.+3.3VMPU BADIS-0654 02.KEY0 10.GNDDG 18.KEYINT1 4.FLAC2 03.KEY1 11.GNDDG 19.FLDRST R7008 3.-VP 04.N.C 12.VOLB 20.KEYINT0 C7032 2.FLAC1 05.GNDA_AUX 13.KEY2 21.FLDCS 1.+3.3VMPU (U0020 to U0024) 06.LEDTHRU 14.VOLA 22.FLDSDO 07.AUX_V...
  • Page 20 TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330 PRINTED CIRCUIT BOARD VIEWS-3 U003 HDMI CIRCUIT PC BOARD BAHDM-0678 A-side view U0030 HDMI PC BOARD BAHDM-0678 U0030 HDMI PC BOARD BAHDM-0678...
  • Page 21 TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330 PRINTED CIRCUIT BOARD VIEWS-3A U003 HDMI CIRCUIT PC BOARD BAHDM-0678 (U0030 x 2) A-side pattern B-side pattern A-side view P751A C516 R301 P8101 P8105 P8104 P8103 P8102 R333 R304 R653 D8145 D8146 R305 R306 R650...
  • Page 22 TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330 PRINTED CIRCUIT BOARD VIEWS-3B U003 HDMI CIRCUIT PC BOARD BAHDM-0678 (U0030 x 2) A side pattern B-side view B side pattern C286 C285 C284 R615 Q281 C702 C521 C8950 D183 C271 C254 D182 Q703 C272...

  • Page 23: Exploded View Parts List

    1/53 PAGE HT-R290 <Note> Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. NOTE : THE COMPONENTS IDENTIFIED BY THE MARK ! ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE ONLY WITH PART NUMBER SPECIFIED.
  • Page 24 28210089A A340 COVER (B) (Not Bent) 28210089AZ A342 SCREW 3TTB+8B(3BC) 838430088GR A360 LABEL (COVER) 29390767 A362 LABEL HOOKUP-ONKYO 29363194 A364 CUSHION T5 x Φ12 x 6 28141867 [TRANS COIL] T901 P TRANS NPT-1603D 2302008 [SW TRM] F6901 FUSE 8A-T/UL-ST2 252261GR...
  • Page 25 U0030 x 2 BAHDM-0678-1C * 1B258578-1C U0030 HDMI PC board ass'y BAHDM-0678-1C 1B2585678-1C U010 TUNER UNIT KST-MW004MS1-S89S 240171 HT-R290 PACKING PROCEDURES PARTS LIST REF. NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS [PACKING] A601 PAD AS (AS)HTR290 L & R (29092579A)
  • Page 26 BATTERY R6/AA(UM-3) ( 2) 3010194 A885 WRNTY CARD (ONKYO) 29365135 HT-R290 PC BOARD PARTS LIST U001 U001 U001 U0010 + U0011 + U0012 + U0013 + U0014 + U0015 + U0016 U001 U0010 Power Amp / Audio Input Terminals PC board...
  • Page 27 5/53 PAGE D131 or C-DIODE KDS4148U ( 1) 223283R2 U001 D132 C-DIODE DA2J10100 223303R2 U001 D132 or C-DIODE KDS4148U ( 1) 223283R2 U001 D4171 ZENER D MTZJ6.8B 224470682T U001 D4172 ZENER D MTZJ6.8B 224470682T U001 D4300 DIODE RL1N4003 22380260T U001 D4300 or DIODE GP104003E...
  • Page 28 6/53 PAGE D6024 or C-DIODE 1SS355 ( 1) 223269R2 U001 D6024 or C-DIODE MA2J111 ( 1) 223279R2 U001 D6024 or C-DIODE KDS4148U ( 1) 223283R2 U001 D6027 C-DIODE DA2J10100 223303R2 U001 D6027 or C-DIODE 1SS352 ( 1) 223234R2 U001 D6027 or C-DIODE 1SS355 ( 1)
  • Page 29 7/53 PAGE D6901C SCREW 3P+10FN(3BC) 82143010GR U001 D6902 C-DIODE DA2J10100 223303R2 U001 D6902 or C-DIODE 1SS352 ( 1) 223234R2 U001 D6902 or C-DIODE 1SS355 ( 1) 223269R2 U001 D6902 or C-DIODE MA2J111 ( 1) 223279R2 U001 D6902 or C-DIODE KDS4148U ( 1) 223283R2 U001...
  • Page 30 8/53 PAGE Q4400 NJM4580M-D 22241448R2 U001 Q4401 2SC2235-Y(TPE6_F) 2211654T U001 [NOTICE] U001 Q6001, Q6002 and the surrounding parts have been changed as follows in the middle of production. Refer to SCHEMATIC-DIAGRAM-4(AMP. SECTION) U001 Change C6120, C6121 and C6122 at the same time when Q6001 is changed. U001 STK-443-530-E 222148...
  • Page 31 9/53 PAGE Q6024 2SA1163-BL(TE85L_F) 2216756R2 U001 Q6051 KRC105S 2217290R2 U001 Q6051 or RN1405 ( 1) 2214500R2 U001 Q6051 or DTC123JKA ( 1) 2216690R2 U001 Q6052 KRC105S 2217290R2 U001 Q6052 or RN1405 ( 1) 2214500R2 U001 Q6052 or DTC123JKA ( 1) 2216690R2 U001 Q6053...
  • Page 32 10/53 PAGE C142 C-CERA C CK725F1E-104Z1 332161040R1 U001 C143 C-CERA C CC725CH1H-330J1 342103304R1 U001 C144 C-CERA C CC725CH1H-330J1 342103304R1 U001 C145 UTSP C CE04W10V-220M(UTSP) 397532217T U001 C4003 UPZ C 2AUPZTF221JE 376332214T U001 C4004 UPZ C 2AUPZTF221JE 376332214T U001 C4007 C-CERA C CC725CH1H-221J1 342102214R1 U001...
  • Page 33 11/53 PAGE C4101 UTSP C CE04W50V 47M(UTSP) 397584707T U001 C4102 UTSP C CE04W50V 47M(UTSP) 397584707T U001 C4103 UTSP C CE04W50V 47M(UTSP) 397584707T U001 C4104 UTSP C CE04W50V 47M(UTSP) 397584707T U001 C4107 UTSP C CE04W50V-2.2M(UTSP) 397580227T U001 C4110 UTSP C CE04W25V-220M(UTSP) 397552217T U001 C4111...
  • Page 34 12/53 PAGE C4414 C-CERA C CK725F1A-105Z1 332181050R1 U001 C4415 C-CERA C CK725F1A-105Z1 332181050R1 U001 C4416 C-CERA C CC725CH1H-101J1 342101014R1 U001 C4417 C-CERA C CC725CH1H-101J1 342101014R1 U001 C4420 MKT C B32529C0332J289 376493324T U001 C4421 MKT C B32529C0332J289 376493324T U001 C4422 MKT C B32529C0332J289 376493324T U001...
  • Page 35 13/53 PAGE C6044 CERA C CC45CH50V-030D 345340302T U001 C6047 CERA C CC45CH50V-030D 345340302T U001 C6050 C-CERA C CK725B1H-472K1 332104725R1 U001 C6051 C-CERA C CK725B1H-472K1 332104725R1 U001 C6052 C-CERA C CK725B1H-472K1 332104725R1 U001 C6053 C-CERA C CK725B1H-472K1 332104725R1 U001 C6054 C-CERA C CK725B1H-472K1 332104725R1 U001...
  • Page 36 14/53 PAGE C6107 UTSP C CE04W63V-100M(UTSP) 397571017T U001 C6108 UTSP C CE04W63V-100M(UTSP) 397571017T U001 C6111 C-CERA C CC725CH1H-102J1 342101024R1 U001 C6112 C-CERA C CC725CH1H-102J1 342101024R1 U001 C6113 C-CERA C CC725CH1H-102J1 342101024R1 U001 C6115 C-CERA C CC725CH1H-102J1 342101024R1 U001 C6117 C-CERA C CC725CH1H-102J1 342101024R1 U001...
  • Page 37 15/53 PAGE R4017 C-CARBON R RN72K1J-331JE 435033314R1 U001 R4018 C-CARBON R RN72K1J-331JE 435033314R1 U001 R4019 C-CARBON R RN72K1J-331JE 435033314R1 U001 R4020 C-CARBON R RN72K1J-331JE 435033314R1 U001 R4023 C-CARBON R RN72K1J-000JE 435030004R1 U001 R4043 C-CARBON R RN72K1J-104JE 435031044R1 U001 R4044 C-CARBON R RN72K1J-104JE 435031044R1 U001...
  • Page 38 16/53 PAGE R4100 C-CARBON R RN72K1J-224JE 435032244R1 U001 R4101 C-CARBON R RN72K1J-224JE 435032244R1 U001 R4102 C-CARBON R RN72K1J-224JE 435032244R1 U001 R4103 C-CARBON R RN72K1J-224JE 435032244R1 U001 R4104 C-CARBON R RN72K1J-224JE 435032244R1 U001 R4107 C-CARBON R RN72K1J-222JE 435032224R1 U001 R4110 C-CARBON R RN72K1J-222JE 435032224R1 U001...
  • Page 39 17/53 PAGE R4405 C-CARBON R RN72K1J-223JE 435032234R1 U001 R4406 C-CARBON R RN72K1J-273JE 435032734R1 U001 R4407 C-CARBON R RN72K1J-273JE 435032734R1 U001 R4408 C-CARBON R RN72K1J-331JE 435033314R1 U001 R4409 C-CARBON R RN72K1J-331JE 435033314R1 U001 R4410 C-CARBON R RN72K1J-104JE 435031044R1 U001 R4411 C-CARBON R RN72K1J-104JE 435031044R1 U001...
  • Page 40 18/53 PAGE R4602 C-CARBON R RN72K1J-000JE 435030004R1 U001 R6010 C-CARBON R RN72K1J-102JE 435031024R1 U001 R6011 C-CARBON R RN72K1J-102JE 435031024R1 U001 R6012 C-CARBON R RN72K1J-102JE 435031024R1 U001 R6013 C-CARBON R RN72K1J-102JE 435031024R1 U001 R6014 C-CARBON R RN72K1J-102JE 435031024R1 U001 R6017 C-CARBON R RN72K1J-102JE 435031024R1 U001...
  • Page 41 19/53 PAGE R6082 C-CARBON R RN72K1J-123JE 435031234R1 U001 R6083 C-CARBON R RN72K1J-123JE 435031234R1 U001 R6084 C-CARBON R RN72K1J-123JE 435031234R1 U001 R6087 C-CARBON R RN72K1J-123JE 435031234R1 U001 R6100 C-CARBON R RN72K1J-333JE 435033334R1 U001 R6101 C-CARBON R RN72K1J-333JE 435033334R1 U001 R6102 C-CARBON R RN72K1J-333JE 435033334R1 U001...
  • Page 42 20/53 PAGE R6167 METAL O R RS2WBJ-0.22 442722294T U001 R6170 METAL O R RS2WBJ-0.22 442722294T U001 R6171 METAL O R RS2WBJ-0.22 442722294T U001 R6172 METAL O R RS2WBJ-0.22 442722294T U001 R6173 METAL O R RS2WBJ-0.22 442722294T U001 R6174 METAL O R RS2WBJ-0.22 442722294T U001...
  • Page 43 21/53 PAGE [SW TRM] U001 E6001 RETAINER MET37-0002 27142009T U001 F6901A FUSE HOL NSCT-1P2031 25052133T U001 F6901B FUSE HOL NSCT-1P2031 25052133T U001 F6902A FUSE HOL NSCT-1P2031 25052133T U001 F6902B FUSE HOL NSCT-1P2031 25052133T U001 JL501A WIRE HOL NSCT-3P874 25051087 U001 JL502A WIRE HOL NSCT-5P876...
  • Page 44 22/53 PAGE P8001A SOCKET NSCT-21P2412 25052515 U001 P8002A SOCKET NSCT-9P2400 25052503 U001 P8003B PLUG NPLG-7P0962 25056012 U001 RL660 RELAY NRL-2P5A-DC24-129 25065563A U001 RL660 or RELAY NRL-2P8A-DC24-144 ( 1) 25065590 U001 RL660 or RELAY NRL-2P5A-DC24-193 ( 1) 25065703 U001 RL662 RELAY NRL-2P5A-DC24-129 25065563A U001...
  • Page 45 23/53 PAGE D7002 or ZENER D UDZS8.2B ( 1) 224550820R2 U002 D7033 ZENER D DZ2J039M0L 224760390R2 U002 D7033 or ZENER D UDZS3.9B ( 1) 224550390R2 U002 D7152 SLI-343Y8C-TE7 225490T U002 D7301 C-DIODE DA2J10100 223303R2 U002 D7301 or C-DIODE 1SS352 ( 1) 223234R2 U002 D7301 or...
  • Page 46 24/53 PAGE D921 or C-DIODE 1SS355 ( 1) 223269R2 U002 D921 or C-DIODE MA2J111 ( 1) 223279R2 U002 D921 or C-DIODE KDS4148U ( 1) 223283R2 U002 D922 C-DIODE DA2J10100 223303R2 U002 D922 or C-DIODE 1SS352 ( 1) 223234R2 U002 D922 or C-DIODE 1SS355 ( 1)
  • Page 47 25/53 PAGE D934 or ZENER D UDZS4.7B ( 1) 224550470R2 U002 D935 C-DIODE DA2J10100 223303R2 U002 D935 or C-DIODE 1SS352 ( 1) 223234R2 U002 D935 or C-DIODE 1SS355 ( 1) 223269R2 U002 D935 or C-DIODE MA2J111 ( 1) 223279R2 U002 D935 or C-DIODE KDS4148U...
  • Page 48 26/53 PAGE L7031 CHOKE COIL LBC2518T2R2M 231364M022R2 U002 L7032 CHOKE COIL LBC2518T2R2M 231364M022R2 U002 L7201 CHOKE COIL LBC2518T2R2M 231364M022R2 U002 L7202 CHOKE COIL LBC2518T2R2M 231364M022R2 U002 L7203 CHOKE COIL LBC2518T2R2M 231364M022R2 U002 L7301 EMIFIL BK1608LM182-T 230958R1 U002 L7302 EMIFIL BK1608LM182-T 230958R1 U002 L9020...
  • Page 49 27/53 PAGE C2106 or JAMICON CE04W50V-2.2M ( 1) 398580227T U002 C2107 VR C CE04W50V-2.2M(VR) 394680227T U002 C2107 or JAMICON CE04W50V-2.2M ( 1) 398580227T U002 C2108 VR C CE04W6.3V-470M(VR) 394624717T U002 C2108 or JAMICON CE04W6.3V-470M ( 1) 398524717T U002 C2109 VR C CE04W6.3V-470M(VR) 394624717T U002...
  • Page 50 28/53 PAGE C2371 C-CERA C CC725CH1H-101J1 342101014R1 U002 C2377 UTSP C CE04W50V-10M(UTSP) 397581007T U002 C2378 UTSP C CE04W50V-10M(UTSP) 397581007T U002 C2380 C-CERA C CC725CH1H-101J1 342101014R1 U002 C2381 C-CERA C CC725CH1H-101J1 342101014R1 U002 C2382 C-CERA C CC725CH1H-101J1 342101014R1 U002 C2383 C-CERA C CC725CH1H-101J1 342101014R1 U002...
  • Page 51 29/53 PAGE C7022 C-CERA C CK725B1H-103K1 332101035R1 U002 C7031 C-CERA C CK725B1H-223K1 332102235R1 U002 C7032 C-CERA C CK725B1H-223K1 332102235R1 U002 C7033 ELECT C CE04W16V-10M(S) 353741009T U002 C7041 ELECT C CE04W16V-10M(S) 353741009T U002 C7042 C-CERA C CC725CH1H-102J1 342101024R1 U002 C7043 C-CERA C CC725CH1H-102J1 342101024R1 U002...
  • Page 52 30/53 PAGE C930 VR C CE04W16V-470M(VR) 394644717T U002 C930 or JAMICON CE04W16V-470M ( 1) 398544717T U002 C933 UTSP C CE04W50V-4.7M(UTSP) 397580477T U002 [RESISTOR] U002 R2001 C-CARBON R RN72K1J-220JE 435032204R1 U002 R2002 C-CARBON R RN72K1J-220JE 435032204R1 U002 R2003 C-CARBON R RN72K1J-105JE 435031054R1 U002 R2004...
  • Page 53 31/53 PAGE R2301 C-CARBON R RN72K1J-224JE 435032244R1 U002 R2302 C-CARBON R RN72K1J-224JE 435032244R1 U002 R2304 C-CARBON R RN72K1J-123JE 435031234R1 U002 R2305 C-CARBON R RN72K1J-123JE 435031234R1 U002 R2306 C-CARBON R RN72K1J-223JE 435032234R1 U002 R2307 C-CARBON R RN72K1J-223JE 435032234R1 U002 R2308 C-CARBON R RN72K1J-123JE 435031234R1 U002...
  • Page 54 32/53 PAGE R7007 C-CARBON R RN72K1J-221JE 435032214R1 U002 R7008 C-CARBON R RN72K1J-221JE 435032214R1 U002 R7021 C-CARBON R RN72K1J-103JE 435031034R1 U002 R7022 C-CARBON R RN72K1J-103JE 435031034R1 U002 R7023 C-CARBON R RN72K1J-103JE 435031034R1 U002 R7024 C-CARBON R RN72K1J-103JE 435031034R1 U002 R7033 C-CARBON R RN72K1J-820JE 435038204R1 U002...
  • Page 55 33/53 PAGE R9014 C-CARBON R RN72K1J-104JE 435031044R1 U002 R9030 THERMISTOR FUSB090F 4000252T U002 R921 METAL O R RS1/2WBJ-47 443524704T U002 R922 C-CARBON R RN72K1J-823JE 435038234R1 U002 R934 C-CARBON R RN72K1J-104JE 435031044R1 U002 [SW TRM] U002 E7201 TRM-423(SCREW) NEJITANSI ST3 25060495 U002 E7301A RETAINER...
  • Page 56 34/53 PAGE RL901 or RELAY NRL-1P10A-DC9-188 ( 1) 25065693 U002 S7002 R ENCODE EC12E2425WITH WASHER 25065655W U002 S7102 PUSH SW NPS-111-S681 25035718T U002 S7104 PUSH SW NPS-111-S681 25035718T U002 S7106 PUSH SW NPS-111-S681 25035718T U002 S7108 PUSH SW NPS-111-S681 25035718T U002 S7113 PUSH SW...
  • Page 57 35/53 PAGE [SEMI CONDUCTOR] U003 D110 C-DIODE DA2J10100 223303R2 U003 D110 or C-DIODE 1SS352 ( 1) 223234R2 U003 D110 or C-DIODE 1SS355 ( 1) 223269R2 U003 D110 or C-DIODE MA2J111 ( 1) 223279R2 U003 D110 or C-DIODE KDS4148U ( 1) 223283R2 U003 D111...
  • Page 58 36/53 PAGE D701 or C-DIODE MA2J111 ( 1) 223279R2 U003 D701 or C-DIODE KDS4148U ( 1) 223283R2 U003 D702 C-DIODE DA2J10100 223303R2 U003 D702 or C-DIODE 1SS352 ( 1) 223234R2 U003 D702 or C-DIODE 1SS355 ( 1) 223269R2 U003 D702 or C-DIODE MA2J111 ( 1)
  • Page 59 37/53 PAGE Q752 or RN2402 ( 1) 2214530R2 U003 Q753 KRA107S 2216350R2 U003 Q753 or RN2407(TE85L_F) ( 1) 2216360R2 U003 Q754 KRC102S 2216190R2 U003 Q754 or RN1402 ( 1) 2214470R2 U003 Q755 KRA107S 2216350R2 U003 Q755 or RN2407(TE85L_F) ( 1) 2216360R2 U003 Q756...
  • Page 60 38/53 PAGE L254 CORE BLM18PG181SN1D 2350005R1 U003 L255 CORE BLM18PG121SN1D 2350006R1 U003 L281 CORE BLM18PG181SN1D 2350005R1 U003 L301 EMIFIL BK1608LM182-T 230958R1 U003 L302 EMIFIL BK1608LL241-T 230959R1 U003 L303 CHOKE COIL LBC2518T4R7M 231364M047R2 U003 L304 CHOKE COIL LBC2518T4R7M 231364M047R2 U003 L305 CHOKE COIL LBC2518T4R7M 231364M047R2...
  • Page 61 39/53 PAGE L8971 or CHOKE COIL SWRH8D43C-100MT ( 1) 231445M100R2 U003 L8972 CORE BLM18PG181SN1D 2350005R1 U003 L8973 CORE BLM18PG181SN1D 2350005R1 U003 L8974 CORE BLM18PG181SN1D 2350005R1 U003 X201 CRYSTAL HC-49SMD24.000MHz 3010479R2 U003 X301 CRYSTAL HC-49SMD24.576MHz+/-50ppm 3010494R2 U003 X501 CERA LOCK CSTCR5M00G53-B0 3010356R2 U003 X8100...
  • Page 62 40/53 PAGE C231 C-CERA C CK725B1A-105K0 332001055R1 U003 C232 C-CERA C CK725B1A-105K0 332001055R1 U003 C233 C-CERA C CK725B1A-105K0 332001055R1 U003 C234 C-CERA C CK725B1A-105K0 332001055R1 U003 C235 C-CERA C CK725B1A-105K0 332001055R1 U003 C236 C-CERA C CK725B1A-105K0 332001055R1 U003 C237 C-CERA C CK725B1A-105K0 332001055R1 U003...
  • Page 63 41/53 PAGE C290 C-CERA C CK725B1A-105K0 332001055R1 U003 C293 C-CERA C CK725B1H-102K0 332031025R1 U003 C294 C-CERA C CK725B1H-102K0 332031025R1 U003 C295 C-CERA C CK725B1H-102K0 332031025R1 U003 C296 C-CERA C CK725B1H-102K0 332031025R1 U003 C301 C-CERA C CC725CH1H-180J0 342031804R1 U003 C302 C-CERA C CC725CH1H-180J0 342031804R1 U003...
  • Page 64 42/53 PAGE C509 C-CERA C CK732B16V-106K 332071065R2 U003 C511 C-CERA C CK725B1H-102K0 332031025R1 U003 C512 C-CERA C CK725B1H-102K0 332031025R1 U003 C513 C-CERA C CC725CH1H-101J0 342031014R1 U003 C514 C-CERA C CK725B1C-104K0 332011045R1 U003 C515 C-CERA C CK725B1C-104K0 332011045R1 U003 C516 C-CERA C CK725B1C-104K0 332011045R1 U003...
  • Page 65 43/53 PAGE C8109 C-CERA C CK725B1C-104K0 332011045R1 U003 C8110 C-CERA C CK725B1H-102K0 332031025R1 U003 C8111 C-CERA C CK725B1C-104K0 332011045R1 U003 C8112 C-CERA C CK725B1H-102K0 332031025R1 U003 C8113 C-CERA C CK725B1C-104K0 332011045R1 U003 C8114 C-CERA C CK725B1H-102K0 332031025R1 U003 C8115 C-CERA C CK725B1C-104K0 332011045R1 U003...
  • Page 66 44/53 PAGE C8148 C-CERA C CK725B1C-104K0 332011045R1 U003 C8149 C-CERA C CK725B1H-102K0 332031025R1 U003 C8151 C-CERA C CK725B1C-104K0 332011045R1 U003 C8152 C-CERA C CK725B1H-102K0 332031025R1 U003 C8153 C-CERA C CK725B1C-104K0 332011045R1 U003 C8154 C-CERA C CK725B1H-102K0 332031025R1 U003 C8155 C-CERA C CK725B1C-104K0 332011045R1 U003...
  • Page 67 45/53 PAGE C8952 C-CERA C CK725B1E-106K 332221065R2 U003 C8953 C-CERA C CK732B16V-106K 332071065R2 U003 C8954 C-CERA C CK732B16V-106K 332071065R2 U003 C8955 C-CERA C CK732B16V-106K 332071065R2 U003 C8956 CHIP ELECT C CEWX16V-100M 398141017R2 U003 C8957 C-CERA C CK725B1C-104K0 332011045R1 U003 C8958 C-CERA C CK725B1E-223K0 332022235R1...
  • Page 68 46/53 PAGE R209 C-CARBON R RN72K1J-470JE 435034704R1 U003 R210 C-CARBON R RN72K1J-470JE 435034704R1 U003 R211 C-CARBON R RN72K1J-470JE 435034704R1 U003 R212 C-CARBON R RN72K1J-103JE 435031034R1 U003 R213 C-CARBON R RN72K1J-103JE 435031034R1 U003 R214 C-CARBON R RN72K1J-331JE 435033314R1 U003 R215 C-CARBON R RN72K1J-103JE 435031034R1 U003...
  • Page 69 47/53 PAGE R255 C-CARBON R RN72K1J-221JE 435032214R1 U003 R256 C-CARBON R RN72K1J-470JE 435034704R1 U003 R257 C-CARBON R RN72K1J-470JE 435034704R1 U003 R262 C-CARBON R RN72K1J-103JE 435031034R1 U003 R263 C-CARBON R RN72K1J-103JE 435031034R1 U003 R264 C-CARBON R RN72K1J-103JE 435031034R1 U003 R265 C-CARBON R RN72K1J-221JE 435032214R1 U003...
  • Page 70 48/53 PAGE R356 C-CARBON R RN72K1J-220JE 435032204R1 U003 R357 C-CARBON R RN72K1J-220JE 435032204R1 U003 R359 C-CARBON R RN72K1J-220JE 435032204R1 U003 R360 C-CARBON R RN72K1J-220JE 435032204R1 U003 R361 C-CARBON R RN72K1J-331JE 435033314R1 U003 R362 C-CARBON R RN72K1J-000JE 435030004R1 U003 R365 C-CARBON R RN72K1J-104JE 435031044R1 U003...
  • Page 71 49/53 PAGE R562 C-CARBON R RN72K1J-221JE 435032214R1 U003 R565 C-R NET RM7LJ470X04 43484747004R2 U003 R566 C-CARBON R RN72K1J-103JE 435031034R1 U003 R568 C-CARBON R RN72K1J-103JE 435031034R1 U003 R570 C-CARBON R RN72K1J-103JE 435031034R1 U003 R572 C-CARBON R RN72K1J-103JE 435031034R1 U003 R573 C-CARBON R RN72K1J-221JE 435032214R1 U003...
  • Page 72 50/53 PAGE R638 C-CARBON R RN72K1J-470JE 435034704R1 U003 R639 C-CARBON R RN72K1J-103JE 435031034R1 U003 R640 C-CARBON R RN72K1J-470JE 435034704R1 U003 R642 C-CARBON R RN72K1J-221JE 435032214R1 U003 R644 C-CARBON R RN72K1J-221JE 435032214R1 U003 R646 C-CARBON R RN72K1J-221JE 435032214R1 U003 R650 C-CARBON R RN72K1J-221JE 435032214R1 U003...
  • Page 73 51/53 PAGE R693 C-R NET RM7LJ470X04 43484747004R2 U003 R701 C-CARBON R RN72K1J-000JE 435030004R1 U003 R712 C-CARBON R RN72K1J-102JE 435031024R1 U003 R713 C-CARBON R RN72K1J-222JE 435032224R1 U003 R714 C-CARBON R RN72K1J-103JE 435031034R1 U003 R715 C-CARBON R RN72K1J-103JE 435031034R1 U003 R716 C-CARBON R RN72K1J-470JE 435034704R1 U003...
  • Page 74 52/53 PAGE R8162 C-CARBON R RN72K1J-680JE 435036804R1 U003 R8166 C-CARBON R RN72K1J-102JE 435031024R1 U003 R8167 C-CARBON R RN72K1J-000JE 435030004R1 U003 R8169 C-CARBON R RN72K1J-473JE 435034734R1 U003 R8172 C-CARBON R RN72K1J-103JE 435031034R1 U003 R8177 C-CARBON R RN72K1J-101JE 435031014R1 U003 R8178 C-CARBON R RN72K1J-101JE 435031014R1 U003...
  • Page 75 53/53 PAGE P751Aor SOCKET 09FMN-SMT-A-TF ( 1) 25052826R2 U003 P752A SOCKET NSCT-9P2472 25052575R2 U003 P8001B SOCKET IMSA-9618S-21A 25053346R2 U003 P8001Bor SOCKET 21FMN-SMT-A-TF ( 1) 25052838R2 U003 P8002B SOCKET IMSA-9618S-09A 25053334R2 U003 P8002Bor SOCKET 09FMN-SMT-A-TF ( 1) 25052826R2 U003 P8003A SOCKET NSCT-7P2187 25052290 U003...
  • Page 76 ONKYO EUROPE ELECTRONICS GmbH Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/ ONKYO EUROPE ELECTRONICS GmbH (UK BRANCH) The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK Tel: +44-(0)1628-473-350 Fax: +44-(0)1628-401-700 ONKYO CHINA LIMITED Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.
