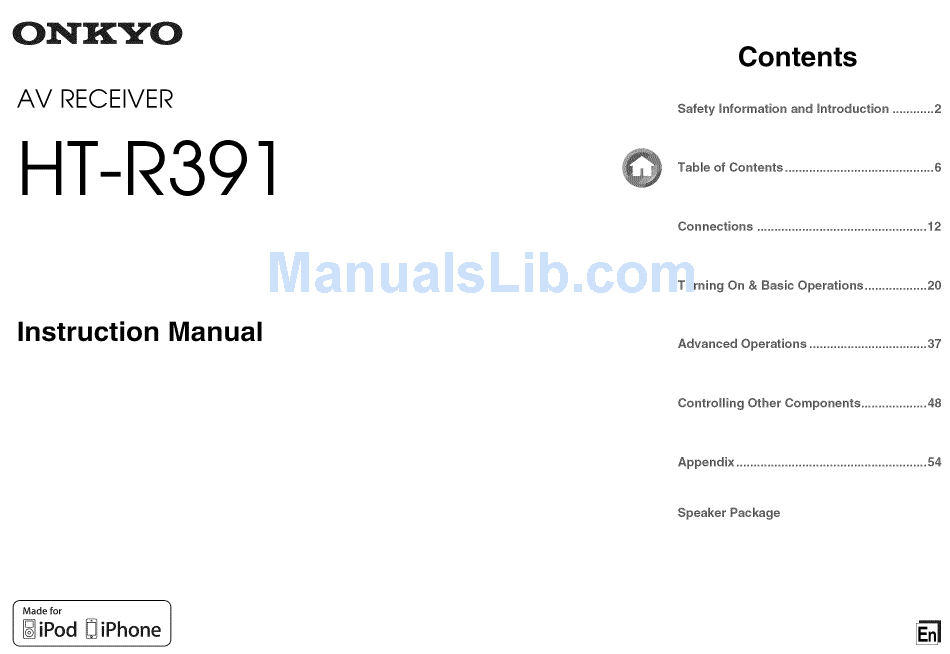

Instruction Manual
Contents
Safety mnfo_mafion and mntroduction ............ 2
Tabme of Contents
...........................................
8
Connections
.................................................
12
Turning
On & Basic
Operations
..................
20
Advanced
Operations
..................................
37
Controlling
Other Components
................... 48
Appendix
.......................................................
54
Speaker Package

Advertisement

Table of Contents
loading

Related Manuals for Onkyo HT-R391

Summary of Contents for Onkyo HT-R391

  • Page 1 Contents AV RECEIVER Safety mnfo_mafion and mntroduction .... 2 HT R391 Tabme of Contents ........... Connections ..........Turning On & Basic Operations ....Instruction Manual Advanced Operations ........Controlling Other Components ....48 Appendix ............Speaker Package...
  • Page 2 Safety Information and Introduction Do not defeat the safety purpose of the polarized or D. If the apparatus does not operate normally by grounding-type plug. A polarized plug has two blades following the operating instructions. Adjust only WARNING: with one wider than the other. A grounding type plug those controls that are covered by the operating TO REDUCE THE RISK OF FIRE OR ELECTRICSHOCK, has two blades and a third grounding prong.
  • Page 3 If water or any other liquid gets inside water. Dry the unit immediately afterwards with a reasonable protection against harmful intederence in a this unit, have it checked by your Onkyo dealer. clean cloth. Don't use abrasive cloths, thinners, residential installation.
  • Page 4 Safety Information and Introduction Canadian Models NOTE: THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003. For models having a power cord with a polarized plug: CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

  • Page 5: Connections

    Thank you for purchasing an Onkyo AV Receiver. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver.
  • Page 6 Connecting Components with HDM! ......Audio Adjust .............. Connecting You r Components ........Source Setup ............Connectir_g Onkyo R I Components ......Hardware ..............Connecting a Recording Component ......18 HDM! Setup .............. Connecting the Antermas .......... Using the Audio Settings ..........
  • Page 7 Safety Information and Introduction Connections Features • 4 HDMI Inputs and 1 Output Amplifier • Onkyo f'_ll-IIO for System Control • 3 Digital Inputs (2 Optical/l Coaxial) • 110 Watts/Channel @ 6 ohms (FTC) • Component Video Switching (2 Inputs/1 Output) •...
  • Page 8 Safety Information and Introduction Front & Rear Panels (North American and Brazilian models) (Asian models) © I ..zF_'_ _,,,. I 0_ © For detailed information, see the pages in parentheses. DISPLAY button (34) USB port (17) (&) _ON/STANDBY button (20) (_) SETUP button (37) (_ RT/PTY/TP button (Asian models) (26) _) HDMI THRU indicator...
  • Page 9 Safety Information and Introduction II HDMIM.Opt =, m PLR Neo:6 =, ',AUTO !_TUNED_I ,,MUTING °-----------iii--i-i;--i i;---ii----;.-_--------------_-_-----i-i-;;:--;--:4--;-:--.-- ..i Io "##### ###_# ##### ####_ #€### _### ##### ###€# _#### ####_ ##_## ##_## ##### ###_# ##### For detailed information, see the pages in parentheses. A and B speaker indicators (38)
  • Page 10 Safety Information and Introduction (North American and Asian models) (Brazilian models) ONK'_ HT-R391 o.%% SURROUND _BWOOfER tEmPTER FRONT A FRONTR B (_ DIGITAL IN COAXIAL and OPTICAL jacks (_ Composite video and analog audio jacks (BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN, (_ COMPONENT VIDEO IN and OUT jacks GAME IN, TV/CD IN) (_) HDMI IN and OUT jacks...
  • Page 11 Safety Information and Introduction Remote Controller m Controlling the tuner To control the AV receiver's tuner, press AM or FM (or RECEIVER). &/¥ buttons (25) D.TUN button (25) DISPLAY button CH +/- button (26) For detailed information, see the pages in parentheses. Number buttons (25) (_ (b button (20) REMOTE MODE/INPUT SELECTOR buttons (21)
  • Page 12 Connections Connecting the AV Receiver Passive Surround Surround Subwoofer left right Connecting the Speaker Cables The following illustration shows how to connect the speakers to each pair of terminals. m Using a Passive Subwoofer FRONT Cornerl "_osition 1/3 of wall position To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by...
  • Page 13 Connections Speaker Configuration Connecting the Speaker Cables The speaker terminals are color-coded for identification The tbllowing table indicates the channels you should use purpose. depending on the number of speakers that you have. No matter how many speakers you use, a passive subwoofer is recommended tbr a really powerful...
  • Page 14 Connections Speaker Connection Precautions • Don't connect more than one cable to each speaker terminal. Doing so may damage the AV receiver. Read the following before connecting your speakers: • Don't connect one speaker to several terminals. • You can connect speakers with an impedance of between...
  • Page 15 Connections AV Cables and Jacks m Optical digital audio Optical digital connections allow you to enjoy digital NHDMI sound such as PCMq, Dolby Digital or DTS. The audio Connecting AV components quality is the same as coaxial. HDMI connections can carry digital video and audio. HDMI cable : Video &...
  • Page 16 Connections VCR or DVD recorder/digital video recorder 1" E ti ...._222_222Z:::_ Game console {vc"d ovo) TV, projector, etc. Satellite/cable set-top box, etc. Blu-ray DIsc/DVD player See also: N Audio Return Channel (ARC) function * ff your TV doesn't support Audio Return Channel...
  • Page 17 Connections "1 When input is selected, you can input video signals from the AUX INPUT VIDEO jack. Video signals input from AUX INPUT VIDEO will be output from the MONITOR OUT jack. *2 Do not connect the AV receiver's port to a USB port on t,/: Assignment can be changed...
  • Page 18 Connections See "Recording" IY_r d etails on recording (3 page 36). Make sure that each Onkyo component connected with an analog audio cable (connection [] in the hookup examples) (3 page 17). Make the fill connection (see the illustration). If you're...
  • Page 19 Connections This section explains how to connect the supplied indoor FM antenna and AM loop antenna. (Brazilian models) The AV receiver won't pick up any radio signals without any antenna connected, so you must connect the antenna to use Connect the supplied power cord...

  • Page 20: Turning On & Basic Operations

    Turning On & Basic Operations Turning On/Off the AV Receiver Press _bON/STANDBY on the front panel. Press _bON/STANDBY on tile front panel. OON/STANDBY Press RECEIVER followed by (3 on the remote Press RECEIVER followed by O on tile remote controller. controller.
  • Page 21 USB" page • "Playing a USB Device" page • "Listening to AM/FM Radio" page • "iPod/iPhone Playback via Onkyo Dock" (3 page • "Controlling Other Onkyo Components" (3 page To adjust the volume, use VOL A/V. Select a listening...
  • Page 22 Turning On & Basic Operations ]TOP MENU _RANDOM This button displays the top menu for each media or service. ® ENTER l/¥ These buttons navigate through the menus. _'_t_!1 _'_t_!l_Tbuttou i_sTbtlttou repeatedly to cycle through the repeat _I/_ This button cycles through pages.
  • Page 23 Turning On & Basic Operations Use A/¥ to select a music file, and press ENTER _-_ to start playback. This section describes icons that appear on the AV receiver's display during media playback. • While the message "Connecting..." appears on theAV receiver's Folder This section explains...
  • Page 24 Turning On & Basic Operations This section explains how to play music files from a USB device (e.g., USB flash drives and MP3 players). See also: • "USB Features" (_ page 63). Press USB to select the "USB" input. Plug your USB device into the AV receiver's port.
  • Page 25 Turning On & Basic Operations N Manual tuning mode Tuning into Radio Stations In manual tuning mode, FM stations will be in mono. N Auto tuning mode Press TUNING MODE so that the AUTO indicator Press TUNING MODE so that the AUTO indicator goes off on the AV receiver's display.
  • Page 26 Turning On & Basic Operations N Selecting Presets Using RDS (excluding North American Presetting AM/FM Stations Brazilian models) You can store a combination of up to 40 of your favorite To select a preset, use PRESET on the AV AM/FM radio stations as presets. receiver, or the remote controller's...
  • Page 27 -Fuming On & Basic Operations m Listening to Traffic News (TP) RDS program types (PTY) • [n some cases, the text characters displayed on the AV receiver You can search for stations that broadcast traffic news. None None may not be identical to those broadcast by the radio station.
  • Page 28 Turning On & Basic Operations MOVIE/TV button Using Basic Functions This button selects the listening modes intended for use with movies and TV. MUSIC button This button selects the listening modes intended for use Selecting Listening Modes with music. GAME button See "About Listening Modes"...
  • Page 29 Turning On & Basic Operations About Listening Modes Input Source Speaker Layout The following audio formats are supported by the listening The illustration shows which speakers are activated in each The AV receiver's listening modes can transform your mode. channel. See "Sp Config (Speaker Configuration)"...
  • Page 30 Turning On & Basic Operations m Onkyo-Original DSP Listening Modes Nmrg31Nm T-D (Theater- With this mode you can enjoy a virtual Dimensional)_ surround sound even with only two or three Orchestra Suitable for classical or operatic music, this speakers. This works...
  • Page 31 Turning On & Basic Operations m Listening Modes rg31Nm DSD2 [n this mode, audio from the input source output without surround-sound processing. Direct [n this mode, audio from the input source The speaker configuration (presence output without surround-sound processing. Dolby Digital speakers), crossover...
  • Page 32 Turning On & Basic Operations "1 These listening modes cannot be selected during or iPod playback. Dolby Pro Logic II Dolby Pro Logic II expands any 2-channel *2 The AV receiver can input the DSD signal from HDM[ IN. Setting the output setting on the player...
  • Page 33 Turning On & Basic Operations m Info_ You can view the information of the following The Home menu provides quick access to frequently used You can use two sets of front speakers with the AV items: "Input" and "Output". settings. You can change settings and view the current receiver: Speakers A for up to 5.1-channel...
  • Page 34 Turning On & Basic Operations With the sleep timer, you can set the AV receiver to turn You can display various information about the current You can adjust the brightness of the AV receiver's display. off automatically alter a specified period. input source as follows.
  • Page 35 Optimizer function enhances the sound quality You can temporarily mute the output of the AV receiver. When you connect an [zt !_capable Onkyo component, of compressed music files. must configure the input display so that [Ztl can work Press RECEIVER followed by MUTING.
  • Page 36 Turning On & Basic Operations This section explains how to record the selected input Connect a pair of stereo headphones with a source to a component with recording capability. plug (1/4 inch or 6.3 ram) to the PHONES standard jack. AV Recording Audio sources can be recorded to a recorder (e.g., cassette •...

  • Page 37: Advanced Operations

    Advanced Operations On-screen Setup Explanatory Notes The setup menus provides a convenient way to change AV receiver's various settings. Settings are organized into Remote indicator @-----N Subwoofer 10 categories. _---_ @ Menu selection (_) Setting target @ Setting options (default setting underlined) Menu SETUP...
  • Page 38 Advanced Operations Level Cal Left (3 page 41) Center Right BD/DVD HDMI Input (3 page 39) Surround Right VCR/DVR Surround Left CBL/SAT Subwoofer GAME Audio Adjust Input Ch (Mux) (3 page 42) Input Ch (Mono) TV/CD Panorama BD/DVD Component (3 page 39) Dimension VCR/DVR Center...
  • Page 39 Advanced Operations • If no video component is connected to HDM[ output (even if the HDM[ input is assigned), the AV receiver selects the video 4 _/_;_' 5 6 _÷_. source based on the setting of "Component (Component Video SETUP Input)".
  • Page 40 Advanced Operations m Front Small: Large: Select based on the cone diameter. SETUP _ <J_ • If the "Subwoofer" setting is set to "No", this setting is fixed to "Large". If you connect a component to a digital audio input, you This section explains how to specify which speakers are connected and their sizes.
  • Page 41 Advanced Operations • For a more accurate setting, look up the frequency response ill the manuals supplied with your speakers and set accordingly. • Choose a higher crossover frequency if you want more sound from your subwoofer. N Double Bass Here you can specify the distance from each speaker...
  • Page 42 Advanced Operations Dolby N Neo:6 Music N PL II Music (2ch Input) These settings apply to only 2-channel stereo sources. Center Image SETUP Panorama _Oto2to5 With this setting, you can specify by how much the front left and right channel output is attenuated in order to create With the Audio...
  • Page 43 Advanced Operations Audio Selector Preset Name For Input Selector m Name m Audio Selector ARC: - - -, Blu-ray, DVD, HD DVD, VCR, DVR, Tivo, _3 _ , 4 _J;_, 5 _¢ 6 _', CableSTB, SAT STB, PS3, Wii, Xbox, PC, TV, CD, The audio signal from your TV tuner can be sent to the HDMI OUT...
  • Page 44 _1,2, signal type in "Fixed Mode". Normally, the AV receiver detects the signal format When several Onkyo components are used in the same N Auto Standby automatically. However, if you experience either of the room, their remote ID codes may overlap.
  • Page 45 Advanced Operations N Audio TV Out • When the source equipment is connected with the 1-41 connection, it ruay rualfuuctiou if "HDMI Ctrl (RIHD)" is set to "On', 3 _,_ 4 _' Through This preference determines whether the incoming audio N HDMI SETUP J_'>...
  • Page 46 Advanced Operations m Audio Return Ch (ARC) Speaker Levels _Off m Subwoofer Level Auto: You can change various audio settings from the Home menu (_ page 33). The audio signal from your TV tuner can be sent to -15 dB to 0 dB to +12 dB in 1 dB steps the HDMI OUT of the AV receiver.
  • Page 47 Advanced Operations EX.BASS Late Night Music Optimizer m EX.BASS N Music Optimizer N Late Night _Off For Dolby Digital and Dolby Digital Plus sources, options are: EX.BASS is a technology that have developed by The Music Optimizer function enhances the sound quality Low: experiments and listening tests to reproduce a natural of compressed music files.

  • Page 48: Controlling Other Components

    System Function N Operating Notes System • Use the AV receiver's voltune control to adjust the playback via Onkyo Dock volume. When you turn on the AV receiver, the RI Dock and iPod/iPhone turn on automatically. In addition, when RI •...
  • Page 49 81993 (with 14 I). instruction manual of the R[ Dock. ® "1 This button does not turn the Onkyo DS-A2 or DS-A2X m With the RI Control Dock on or off. Also, your iPod/iPhoue may not respond...
  • Page 50 Onkyo components that are connected via f-41are You can use the AV receiver's remote controller to control controlled by pointing the remote controller at the AV your other Onkyo AV components. This section explains Look up the appropriate remote control code in the receiver, not the component.
  • Page 51 Controlling Other Components Controlling Onkyo components without r4 I If you want to control an Onkyo component by pointing You can reset a REMOTE MODE button to its default You can reset the remote controller to its default settings. remote...
  • Page 52 MODE button first, I Press the appropriate REMOTE By pressing the REMOTE MODE button that's been programmed with the remote control code for your _) TOP MENU component, you can control Onkyo component as ® ilVl41_, ENTER described below. @ SETUP For details on entering a remote control code for other components, see "Entering Remote Control Codes"...
  • Page 53 Controlling Other Components m CD player / CD recorder / MD recorder operation MODE button first, ress the appropriate REMOTE ® A1¥141_, ENTER ® SETUP ® P.-, I I, II, -.<-<, _, I_1_1, I_I_I ® SEARCH REPEAT RANDOM MODE m Cassette tape deck operation ®...

  • Page 54: Appendix

    If smoke, smell or abnormal noise is produced by the AV receiver, unplug the power cord from the wall outlet immediately and contact your Onkyo dealer. Make sure that none of the connecting cables To reset the remote controller to its factory defaults, bent, twisted, or damaged.
  • Page 55 Appendix N There's no sound with a certain signal format N About DTS signals Check the digital audio output setting on the When DTS program material ends and the DTS connected device. On some game consoles, such as bitstream stops, the AV receiver remains in DTS m Only the front speakers produce sound...
  • Page 56 Appendix N Can't control other components [f it' s an Oukyo component, make sure that the 1"-41 m There's no picture m Reception is noisy, FM stereo reception is noisy, cable and analog audio cable are connected properly. or the FM STEREO indicator doesn't light Connecting only an 1"-41cable won't...
  • Page 57 Appendix m The AV receiver's remote controller doesn't N The following settings can be made for the control my iPod/iPhone composite video inputs N Can't access the music files on a USB device must use the buttons on the unit to make these Make...
  • Page 58 In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least five seconds, and then plug it back in. Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused the unit's malfunction.
  • Page 59 Appendix Connection Tips and Video Signal Path Video components can be connected by using any one of Audio components can be connected by using any of the the following video connection formats: composite video, following audio connection formats: analog, optical, The AV receiver supports several connection formats for coaxial, or HDMI.
  • Page 60 HDMI, is the name of the system control function found on • The AV receiver will enter standby mode when the power • Sharp TV Onkyo components. The AV receiver can be used with of the TV is turned to standby. CEC (Consumer Electronics Control), which allows m Players/Recorders •...
  • Page 61 Appendix m How to connect and setup Change each item in the "HDMI Setup" menu Operate with the remote controller. according to the following settings: For buttons that can be operated (_ page 50). Confirm connecting setting. • HDMI Ctrl (RIHD): Connect the HDMI jack...
  • Page 62 Appendix About HDMI The AV receiver supports HDCP (High-bandwidth Digital Designed to meet the increased demands of digital TV, • 2-channel linear PCM (32-192 kHz, 16120/24 bit) Content Protection)% a copy-protection system for digital HDMI (High Definition Multimedia Interface) is a new •...
  • Page 63 • WMA DRM/Pro/Voice formats are not supported. • Protected music files on an MP3 player cannot be played. m AAC (.aac/.m4a/.mp4/.AAC/.M4A or .MP4) • Onkyo accepts no responsibility whatsoever for the loss or stands for MPEG-2/MPEG-4 Audio. damage to data stored...
  • Page 64 Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories. Music Optimizer "lMis a trademark of Onkyo Corporation. H_::_rirll| ° "HDM[, the HDM[ Logo, and High-Definition Multimedia [nterface are trademarks or registered trademarks HDM[...
  • Page 65 Appendix NHDMI Video Section Specifications Input IN 1, IN 2, IN 3, IN 4 Input Sensitivity/Output Level and Impedance Amplifier Section Output 1 Vp-p/75 f_ (Component Video Resolution 1080p 0.7 Vp-p/75 f) (Component PB/CI3,PIJCI0 Audio Format Dolby TrueHD, DTS-HD Master Audio, 1 Vp-p/75 f_ (Composite) Rated Output...
  • Page 66 Appendix Memo ©© En-66...
  • Page 67 Appendix Memo ©© En-67...
  • Page 68 Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.onkyochina.com/ ONKYO CHINA PRC 1301,555 Tower, No.555 West NanJin Road, Jin an, Shanghai, China 200041, Tel: 86-21-52131366 Fax: 86-21-52130396 http://www.cn.onkyo.com/ Yl112-1 SN 29401049 (C) Copyright 2012 ONKYO SOUND & VISION CORPORATION Japan. All rights reserved. *29401 049*...
  • Page 69 O:NKYO HTP-391 5.Ich Home Theater Speaker Package Surround speaker (SKR-391) Make sure you have the following accessories. Front speaker (SKF-391) Keyhole slot Surround speakers Speaker cables 26 ft. (8.0 m) Speaker terminals Subwoofer (SKW-391) SKF-391/SKR-391 Speaker terminals Front speakers Speaker cables 10 ft. (3.0 m) SKC-391/ SKC-391C 20 rubber stoppers _1...
  • Page 70 Using the Floor Pads for Subwoofer To mount the center speaker horizontally, use the two keyhole slots shown to hang the speaker on two screws that If the subwoofer is placed on a hard floor (wood, vinyl, are securely screwed into the wall. tile, etc.) and playback is very loud, the subwoofer's feet Using the Rubber Stoppers for a More Stable...

  • Page 71: Precautions

    The Home Theater means that you can enjoy surround Speaker Connection Precautions sound with a real sense of movement in your own home -- Read the following before connecting your speakers: just like being in a movie theater or concert hall. •...
  • Page 72 N Center Speaker N Surround Speakers (SKR-391) SKC-391 (North American and Brazilian) Type Full Range Bass-reflex m Passive Subwoofer (SKW-391) Type Full Range Bass-reflex Impedance 6 f_ Impedance 6 f). Maximum input power 120 W Type Bass-reflex type Passive subwoofer Maximum input power...
  • Page 73 HTP-391 Ensemble d'enceinfes d u Home cinema 5.1can. Enceinte surround (SKR-391) Assurez-vous que le carton contient bien les accessoires suivants. _Encoche en trou Enceinte avant (SKF-391) de serrure Enceintes surround C&bles d'enceinte 8,0 m ' Bornes d encelnte Subwoofer (SKW-391) SKF-391/SKR-391 - (Blanc) (Rouge)
  • Page 74 Utilisation des tampons de protection pour Pour fixer l'enceinte centrale de faqon horizontale, utilisez le subwoofer les deux encoches en trou de serrure indiqu&s pour accrocher l'enceinte _ deux vis bien fix_es au mur. Si le subwoofer est plac_ sur un sol dur (bois, vinyle, Utilisation des bouchons en caoutchouc Encoche en trou de serrure pour la fixation au mur carrelage,...
  • Page 75 Precautions concernant le branchement des enceintes Grfice au Home Cinema, vous pouvez profiter d'un son surround tr_s r_aliste _ votre domicile -- comme si vous _tiez dans une salle de cinema ou de concert. Lisez ce qui suit avant de brancher vos enceintes : •...
  • Page 76 Borne )x ressort et "t code couleur Disponible Encoche en trou de serrure Grille Fixe Disponible Autre Protection non-magndtique Grille Fixe Autre Protection magndtique Yl112-1 SN 29400972 (C) Copyright 2012 ONKYO SOUND & VISION CORPORATION Japan. All rights reserved. *29400972*...
