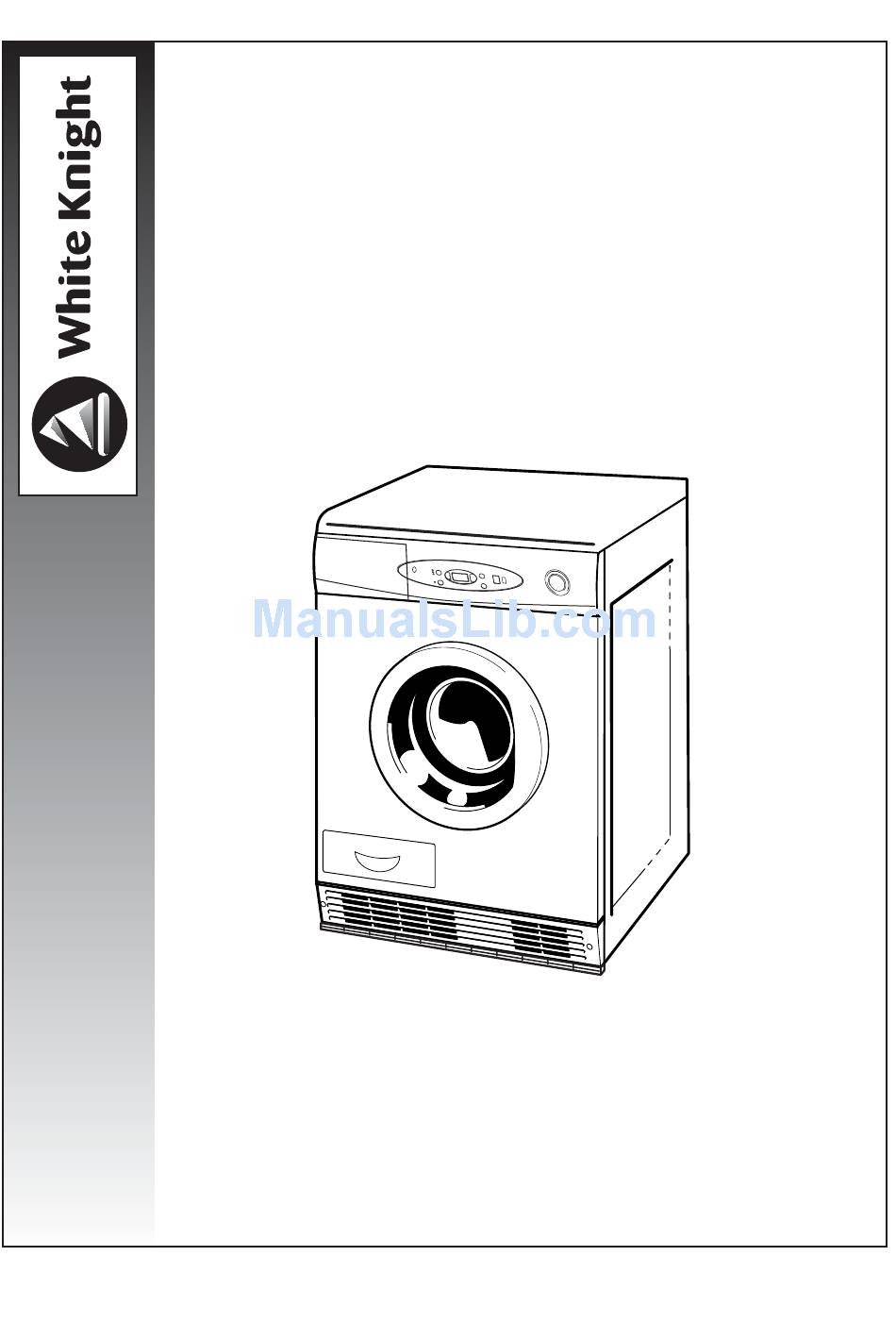

- Page 1 SERVICE MANUAL White Knight Electronic Sensing Condenser 0312 96A 15000 - 96AW Wiring Diagram Exploded Views Parts List May 2013...
- Page 2 White Knight Electronic Sensing Condenser Dryer - Exploded View 1 203a 184 397...
- Page 3 White Knight Electronic Sensing Condenser Dryer - Exploded View 2 445b 445a...
- Page 4 Condenser Dryer - Exploded View 3 White Knight...
- Page 5 White Knight Electronic Sensing Condenser Dryer - Exploded View 4...
- Page 6 Wiring Diagram...
- Page 7 White Knight Electronic Sensing Condenser - Parts List Item Description Part Number Expl.View Motor + 8µf Capacitor Assembly 4213 092 21001 Capacitor Assembly 8µf 4213 092 08091 Drive Belt 4213 092 19501 Mains Cable 4213 076 35123 Terminal Block 4213 078 44621...
- Page 8 White Knight Electronic Sensing Condenser - Parts List Seal Clamp Kit 4213 092 27661 Condenser Housing Assembly 4213 092 21151 Slip Ring Assembly 4213 092 05731 Sensing Strip Assembly 4213 092 05691 Banjo /Seals/Clips/Beaing Pads Assembly 4213 092 21161 Front Seal...
