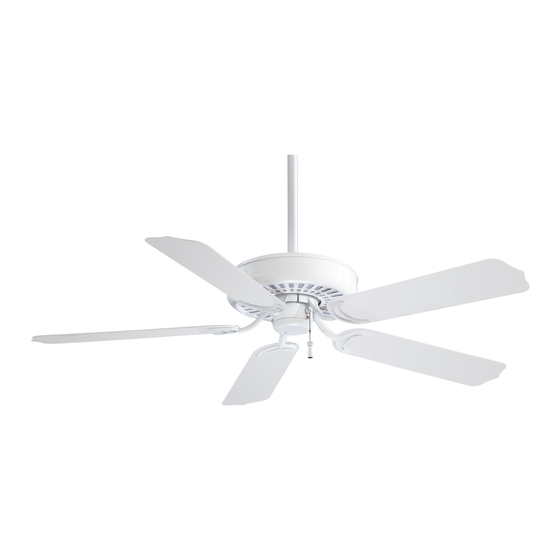

Summary of Contents for minkaAire sundance

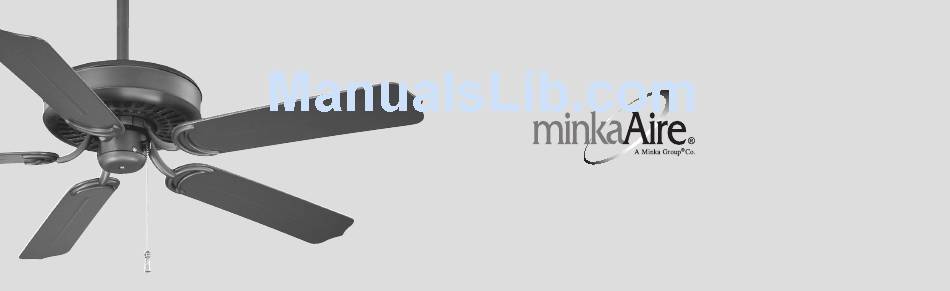

- Page 1 SUNDANCE INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 3 Minka-Aire warrants to the original owner that this fan will be free from defects in material and workmanship for one ® year from the date of purchase, excluding the motor. Minka-Aire warrants to the original owner that the motor in this fan ®...
- Page 4 This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as a result of the removal of the fan from the origial installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which the fan was not designed.
-
Page 5: Table Of Contents
SAFETY FIRST ATTACHING THE FAN BLADES CONTENTS PACKAGE CONTENTS INSTALLING THE SWITCH CAP BEGIN INSTALLATION OPERATING YOUR FAN HANGING THE FAN MAINTENANCE ELECTRICAL CONNECTIONS TROUBLESHOOTING FINISHING THE INSTALLATION SPECIFICATIONS 1151W. Bradford Court, Corona CA 92882 For Customer Assistance Call: 1-800-307-3267 LISTED... -
Page 6: Safety First
SAFETY FIRST 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2.Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE:The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Fan blade screws (2 pcs) Pull Chain Fb (1pc.) 2. Coupling cover #10-12X38mm wood Wire Nuts (3 pcs.) 3. Fan motor/housing ass'y screws (2 pcs) Balancing Kit 4. -
Page 9: Begin Installation
Tools Required: Phillips screw driver; slotted screw driver;pliers;wire cutters; electrical tape. BEGIN INSTALLATION MOUNTING OPTIONS CEILING JOIST PARALLEL WOOD BRACE (MIN. 2" THICK) If there isn' t an existing outlet box, then read the following instructions. Shut the CROSS BRACE OUTLET power off at the circuit breaker or fuse box. -
Page 10: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 4. Carefully feed fan wires up through the downrod and then hanger bracket and hanger ball have been provided for your safety through the holes in the rubber cap on the top of the downrod. Insert and the proper installation of your new ceiling fan. - Page 11 RUBBER CAP OUTLET BOX SET SCREW DOWNROD CROSS CANOPY SET SCREW COUPLING SET SCREW COVER LOCK PIN LOCK PIN REGISTRATION SLOT HITCH PIN HANGER BRACKET HITCH PIN Fig.6 Fig.7 Fig.9 Fig.5 Fig.8...
-
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS REMEMBER to shut the power off at the circuit breaker or fuse (and the blue wire if light kit is installed)are on the other side of the box. outlet box. Turn splices upward and tuck them carefully into outlet box. Follow the steps below to connect the fan to your house supply wires. - Page 13 FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY PULL CHAIN. HOUSE WIRE SUPPLY WHITE (NEUTRAL) GREEN (GROUND) BLACK (HOT) CEILING WALL WHITE (NEUTRAL) BLUE (OPTIONAL LIGHT) BLACK (MOTOR) GROUND- (CONNECT TO GROUND WIRE ON HANGER BRACKET IF NO HOUSE GROUND WIRE EXISTS.) Fig.10...
- Page 14 FAN CONTROLLED BY WALL CONTROL, LIGHT KIT CONTROLLED BY LIGHT SWITCH. FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY WALL SWITCH. HOUSE WIRE SUPPLY HOUSE WIRE SUPPLY WHITE (NEUTRAL) WHITE (NEUTRAL) GREEN (GROUND) GREEN (GROUND) BLACK (HOT) BLACK (HOT) CEILING CEILING LIGHT...
-
Page 15: Finishing The Installation
FINISHING THE INSTALLATION Step 1. Slide canopy up against ceiling. Align key holes in canopy with screws on hanger bracket and rotate canopy clockwise to lock it into place. Secure canopy to OUTLET BOX hanger bracket by tightening the two screws. (Fig. 13) HANGER BRACKET HANGER... -
Page 16: Attaching The Fan Blades
ATTACHING THE FAN BLADES Step 1. Attach the fan blade to the blade FAN MOTOR bracket using rubber washer and screws provided. RUBBER WASHERS Tighten screws securely. Repeat for remaining blades. (Fig. 14) FAN BLADE Step 2. Remove and discard the rubber stops from FAN BLADE the motor.Align holes in blade bracket and motor and secure with proper screws. -
Page 17: Installing The Switch Cap
INSTALLING THE SWITCH CAP Step 1. Remove the screws from the switch housing. SWITCH HOUSING Step 2. Insert the switch cap into the switch housing, align slot from switch cap with the slide switch in the switch housing and push firmly in place. Step 3. -
Page 18: Operating Your Fan
OPERATING YOUR FAN Restore power to ceiling fan and test for Warm weather- (Forward) The pull chain on your fan controls the speed proper operation. settings as follows: A downward air flow creates a cooling effect Speed settings for warm or cool weather as shown in Figure 17.This allows you to set depend on factors such as the room your air conditioner on a warmer setting... - Page 19 WINTER OPERATION SUMMER OPERATION Fig.17 Fig.18...
-
Page 20: Maintenance
MAINTENANCE Here are some suggestions to help you maintain your fan. 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachemets twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2. -
Page 21: Troubleshooting
TROUBLESHOOTING P P roblem Solution Problem Problem Problem Fan will not start. Fan sounds noisy. Fan Wobble Solution Solution Solution 1. Check fuses or circuit breakers. 1. Allow a 24-hour "break-in" period. Most 1.Make sure your hanger bracket and outlet box are noises associated with a new fan go away secure. -
Page 22: Specifications
SPECIFICATIONS Fan Size Speed Volts AMP Watts N.W. G.W. F572 0.22 10.3 1500 42" 0.33 23.4 2700 11.99LBS 14.19LBS 1.28' These are typical readings. Your actual fan may vary. They High 0.47 55.8 4200 do not include amps or wattage used by the light kit. Fan Size Speed Volts...
