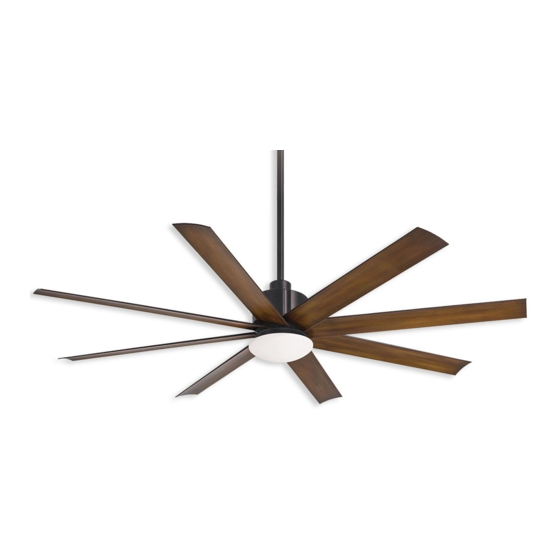

minkaAire Slistream Instruction Manual
  1. Manuals
  2. Brands
  3. minkaAire Manuals
  4. Fan
  5. Slistream
  6. Instruction manual

minkaAire Slistream Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

SLIPSTREAM
A
INSTRUCTION MANUAL WARRANTY CERTIFICATE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Slistream and is the answer not in the manual?

Questions and answers

Related Manuals for minkaAire Slistream

Summary of Contents for minkaAire Slistream

  • Page 1 SLIPSTREAM INSTRUCTION MANUAL WARRANTY CERTIFICATE...
  • Page 2 This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws. Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
  • Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
  • Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.

  • Page 5: Table Of Contents

    CONTENTS SAFETY RULES................... INSTALLING THE MOUNTING PLATE............. PACKAGE CONTENTS................INSTALLING THE LIGHT BULB & GLASS SHADE ......INSTALLING THE FAN................OPERATING THE REMOTE CONTROL/WALL CONTROL..... HANGING THE FAN................CARE OF YOUR FAN..................ELECTRICAL CONNECTIONS.............. TROUBLESHOOTING................... FINISHING THE INSTALLATION............SPECIFICATIONS.................... ATTACHING THE FAN BLADES............1151 W.

  • Page 6: Safety Rules

    SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
  • Page 7 ATTENTION: ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the ceiling fan's light kit will shut off automatically. NOTE: NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.

  • Page 8: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. 13. Hand held remote + holder + 2 You should have the following items: mounting screws 14. 12V MN21/A23 battery 1. Fan blades (8) 2. Blade support plates (8) 15. Balancing kit 3.

  • Page 9: Installing The Fan

    INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. PARALLEL WOOD BRACE CEILING (MIN. 2" THICK) MOUNTING OPTIONS JOIST OUTLET CROSS BRACE If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers.

  • Page 10: Hanging The Fan

    HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) Thread hanger bracket and hanger ball have been provided for your safety and Downrod into the Coupling until the holes are lined up and secure with the proper installation of your new ceiling fan.
  • Page 11 DOWNROD DOWNROD RUBBER COVER COUPLING OUTLET BOX CANOPY *OMIT COUPLING DOWNROD CROSS PIN COVER WHEN THE MINIMUM-LENGTH CANOPY SET SCREWS DOWNROD COVER HITCH LOCK HANGER SUPPLY REGISTRATION BALL SET SCREW SET SCREWS WIRES SLOT DOWNROD HANGER BRACKET Fig. 5 Fig. 6 Fig.

  • Page 12: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical shock be sure electricity is turned off at the main fuse or breaker box before wiring. NOTE: The Aire Control ® System for this DC motor fans is equipped with a learning FREQUENCY frequency function which has 32 code combinations to prevent potential interference from other remote units.
  • Page 13 Step 1. Motor to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the motor. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the motor. Secure all wire connections with the plastic wire nuts provided.

  • Page 14: Finishing The Installation

    FINISHING THE INSTALLATION OUTLET BOX Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half a turn from the screw head. HANGER BRACKET Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow HANGER section of the key holes.

  • Page 15: Attaching The Fan Blades

    ATTACHING THE FAN BLADES SLOT Insert one fan blade into the blade slot on the motor housing and secure with the blade support plate, rubber washers, and screws. Securely tighten screws. Repeat process with other blades. (Fig 14) Secure the last screw through the blade hole.

  • Page 16: Installing The Mounting Plate

    600-1 INSTALLING THE MOUNTING PLATE (PL019) PL-190C Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Step 2. Place the key holes from the mounting plate over the 2 screws previously loosened from the mounting ring, turn mounting plate until it locks in place at the narrow section of the key holes.

  • Page 17: Installing The Light Bulb & Glass Shade

    600-1 (PL019) PL-190C INSTALLING THE LIGHT BULB & GLASS SHADE 600-1 (PL019) ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the ceiling fan' s light kit will shut off automatically. Step 1.

  • Page 18: Operating The Remote Control/Wall Control

    OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. IMPORTANT: THIS REMOTE CONTROL & DC FAN MOTOR ARE DESIGNED TO PERFORM A ONE TIME SELF CALIBRATION TEST. THIS TEST WILL IMPORTANT: THIS REMOTE CONTROL &...
  • Page 19 Note: The auto learning function will only shut off when the self calibration test has power after 30 seconds if interruption occurs. mandate within 60 seconds when turning the finished. The total self calibration test will last Please remove obstacles before re-set. fan’s AC power ON.
  • Page 20 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: Wait for the fan to stop before reversing the direction of the blade rotation. Warm Weather (forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 19.

  • Page 21: Care Of Your Fan

    CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4. Use a lint free lightly damp cloth or duster to remove dust from the blades. 1. Because of the fan's natural movement some connections may become loose.

  • Page 22: Troubleshooting

    TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers.
  • Page 23 SYMPTOM SYMPTOM Fan Wobble Lights shut off and will not come back on. SOLUTION SOLUTION NOTE: All blade sets are grouped by weight. Because wood and This unit is equipped with a wattage limiting device. Lamping in excess of 190 watts will disable your ceiling fan’s light kit. To reset plastic blades vary in density, the fan may wobble even though blades are matched.
  • Page 24 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.

  • Page 25: Specifications

    SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts N.W. G.W. C.F. They do not include amps and wattage used by the 0.092 4826 light(s). Medium Low 0.120 5523 11.13 12.81 11.0 6335 Medium 0.158 65"...
  • Page 26 4826 818.0 5523 682.0 6335 11.0 576.0 7107 14.5 490.0 7734 19.5 397.0 8778 27.6 318.0...
