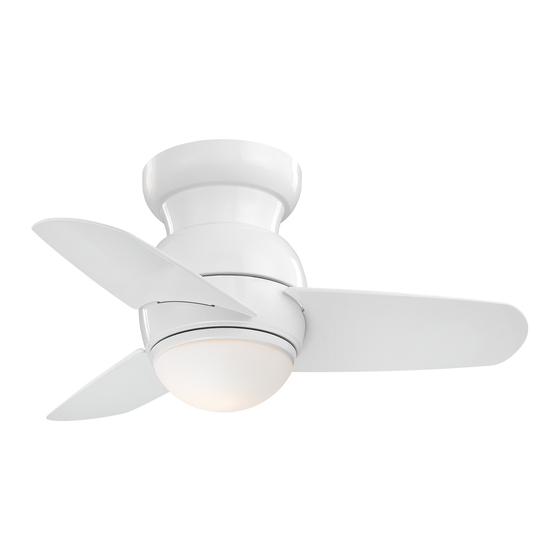

- Page 1 SPACESAVER INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 ©2017 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
- Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
- Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES..................ATTACHING THE FAN BLADES............PACKAGE CONTENTS..............INSTALLING THE MOUNTING PLATE ..........INSTALLING THE LED LIGHT KIT ............INSTALLING THE FAN..............HANGING THE FAN................. INSTALLING THE GLASS SHADE ............. ELECTRICAL CONNECTIONS............OPERATING YOUR FAN................ INSTALLING THE WALL CONTROL.......... CARE OF YOUR FAN................ -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Fan blades (3) A. Mounting hardware: 2. Blade support plates (3) #10 x 1.5" Wood screws (2 PCs.) 3. Mounting bracket #8 x 3/4" Machine screws (2 PCs.) 4. -
Page 9: Installing The Fan
INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. PARALLEL WOOD BRACE CEILING (MIN. 2" THICK) MOUNTING OPTIONS JOIST OUTLET CROSS BRACE If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. -
Page 10: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the hanger bracket and hanger ball have been provided for your safety and the proper installation of your new ceiling fan. The use OUTLET BOX of other parts, hardware or components not supplied by Minka ®... -
Page 11: Electrical Connections
ELECTRICAL CONNECTIONS Follow the steps below to connect the fan to your house supply wires. Use the wire nuts supplied with your fan. Secure the wire nuts by wrapping the connection with electrical tape. Step 1. Disconnect the power and remove the existing wall plate and switch from the wall junction box. (Fig. 6). Step 2. - Page 12 SUPPLY CIRCUIT OUTLET BOX SWITCH WALL PLATE BLACK/ GROUND CONDUCTOR WHITE SCREWS SCREWS OUTLET BOX BLUE GREEN GROUND LEAD BLACK GROUND TO DOWNROD Fig. 6 Fig. 7...
-
Page 13: Installing The Wall Control
INSTALLING THE WALL CONTROL SWITCH OUTLET BOX SCREWS WALL PLATE Remember to shut the power off at the circuit breaker or fuse box. SCREWS WARNING: HOOK UP IN "SERIES ONLY" DO NOT CONNECT THE HOT AND NEUTRAL WIRES OF ELECTRIC CIRCUIT TO THE WALL CONTROL - DAMAGE TO THE SWITCH AND POSSIBLE FIRE COULD OCCUR. -
Page 14: Finishing The Installation
FINISHING THE INSTALLATION Move fan into position over the mounting bracket and secure with the four screws provided (Fig. 9). SCREWS SCREWS Fig. 9... -
Page 15: Attaching The Fan Blades
ATTACHING THE FAN BLADES Insert one fan blade into the blade slot on the motor housing and secure with the blade support plates, screws and washers. Securely tighten screws. Repeat process with other blades. (Fig. 10) SLOT FAN BLADE BLADE RUBBER SUPPORT WASHERS... -
Page 16: Installing The Mounting Plate
INSTALLING THE MOUNTING PLATE Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Step 2. Place the key holes from the mounting plate over the 2 screws previously loosened from the mounting ring, turn mounting plate until it locks in place at the narrow section of the key holes. -
Page 17: Installing The Led Light Kit
INSTALLING THE LED LIGHT KIT CAUTION: Before starting installation, make sure power is turned off at the circuit breaker. CAUTION: The light source is designed for this specific application and can overheat if serviced by unrtained personnel. If any servicing is required, the product should be returned to an authorized service facility for examination or repair. -
Page 18: Installing The Glass Shade
INSTALLING THE GLASS SHADE Step 1. Raise the glass shade up against the mounting plate and secure it to the fan by turning the glass shade clockwise until snug. DO NOT OVERTIGHTEN. (Fig. 13) MOUNTING PLATE GLASS SHADE Fig 13... -
Page 19: Operating Your Fan
OPERATING YOUR FAN Restore power to ceiling fan and test for proper operation. 1. The fan 4-speed control is used to set the fan speed as follows: 0= Turns the fan off 1= High Speed 2= Medium High Speed REVERSE 3= Medium Speed SWITCH 4= Low Speed... - Page 20 Warm weather - (Forward) A downward airflow creates a cooling effect as shown in Fig. 15. This allows you to set your air conditioner on a warmer setting without affecting your comfort. Cool weather - (Reverse) An upward airflow moves warm air off the ceiling area as shown in Fig.
-
Page 21: Care Of Your Fan
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4. Use a lint free lightly damp cloth or duster to remove dust from the blades. 1. Because of the fan's natural movement some connections may become loose. -
Page 22: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check fuses or circuit breakers. Allow a 24-hour "break-in" period. Most noises as sociated with a new fan go away during this time. Check wall control connections. Make sure all motor housing screws are snug. Check line wire connections to fan and switch wire connections in switch housing. - Page 23 SYMPTOM Fan Wobble SOLUTION Check that all blade and blade holder screws are secured. Use the balancing kit provided if the wobble is excessive. (follow instructions included with balancing kit.) NOTE: All Blade sets are grouped by weight. Because blades vary in density, the fan may wobble even though blades are weight matched.
-
Page 24: Specifications
SPECIFICATIONS Fan Size Speed Volts Amps Watts N.W. G.W. C.F. These are typical readings. Your actual fan may vary. They do not include amps and wattage used by the 0.127 26" 5.52 6.13 0.89' light(s). High 0.292... - Page 25 PERFORMANCE AND ENERGY INFORMATION FAN SPEED AIRFLOW POWER USE AIRFLOW EFFICIENCY (CFM)* (Watts) (CFM/Watt) High 1992 Ceiling fan airflow is measured in cubic feet per minute (CFM). Estimated Airflow Power use is measured in watts. To maximize energy savings: 1,223 Yearly Energy Cost •...
