PG-FP5 Flash Memory Programmer
Setup Manual
Thank you for purchasing the PG-FP5 flash memory programmer.
This manual helps you to grasp the overview of preparation and startup for using the PG-FP5 and support for the product,
so please read this manual thoroughly before using the product.
Note the following point before reading this manual.
Access one of the following websites for "Renesas Electronics website" that appears in this manual.
Except for Europe area: https://www.renesas.com/pg_fp5
For Europe area: http://www.renesas.eu/update → Section PG-FP5-EE
The above pages provide the latest versions of the following software and the user's manual.
• Programming GUI (including USB driver)
• User's manual
• PG-FP5 parameter file
• Firmware file
• FPGA file
Chapter 1 OVERVIEW .............................................................................................................................. 2
1.1 Checking the Package Contents ....................................................................................................... 2
1.2 User's Manual ................................................................................................................................... 2
Chapter 2 SETUP ...................................................................................................................................... 3
2.1 Obtaining Software ............................................................................................................................ 3
2.2 Installation ......................................................................................................................................... 3
2.3 System Connection ........................................................................................................................... 3
2.4 PG-FP5 Startup ................................................................................................................................. 4
2.5 Startup of Programming GUI ............................................................................................................. 4
2.6 Check and Update of Version ........................................................................................................... 6
2.7 Completion of Setup .......................................................................................................................... 7
R20UT0930EJ0400 Rev.4.00
Oct 03, 2016
R20UT0930EJ0400
Rev.4.00
Oct 03, 2016
Page 1 of 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG-FP5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renesas PG-FP5

Summary of Contents for Renesas PG-FP5

  • Page 1: Table Of Contents

    Thank you for purchasing the PG-FP5 flash memory programmer. This manual helps you to grasp the overview of preparation and startup for using the PG-FP5 and support for the product, so please read this manual thoroughly before using the product.

  • Page 2: Chapter 1 Overview

    User’s Manual The PG-FP5 package does not include the user’s manual. Download the Renesas Electronics website. This manual is installed and registered in the Windows Start menu when the Programming GUI is installed. Adobe Reader is required to view the PDF files. See the website of...

  • Page 3: Chapter 2 Setup

    Connect a USB cable (or serial cable) to the USB port (or serial port) on the host PC, and the other side of the cable to the USB connector (or serial connector) on the PG-FP5. Plug in the AC adapter and then connect to the PG-FP5 power supply connector.

  • Page 4: Pg-Fp5 Startup

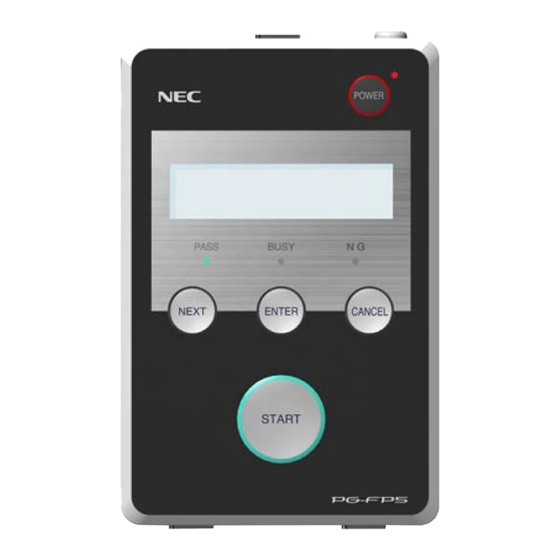

    PG-FP5 Startup After the cables are connected, press the POWER button on the PG-FP5. When the PG-FP5 is correctly started, the POWER LED is turned on and “Commands >” is displayed in the message display. If not, the cause may be a defect in the PG-FP5, contact your local distributor.
  • Page 5 PG-FP5 Flash Memory Programmer Setup Manual (4) The Setup dialog box will be displayed. Click the Cancel button. (5) The following message will be displayed. Click the OK button. R20UT0930EJ0400 Rev.4.00 Page 5 of 7 Oct 03, 2016...

  • Page 6: Check And Update Of Version

    Use of the latest versions of the Programming GUI, firmware and FPGA is recommended. Versions can be checked as shown below. For how to update, refer to 3.4 Update of Programming GUI, firmware and FPGA in the PG-FP5 User’s Manual.

  • Page 7: Completion Of Setup

    Completion of Setup This completes the PG-FP5 setup. The Programming GUI can now be used. For how to perform the setup specific to the device or to perform programming with the target system connected, refer to the PG-FP5 User’s Manual and the user’s manual for the target device.
