Intel LAN1–4 Enable [Enabled]
Allows you to enable or disable the Intel LAN.
Configuration options: [Disabled] [Enabled]
Intel LAN ROM Type [PXE]/[Disabled]
Allows you to select the Intel LAN ROM type.
Configuration options: [Disabled] [PXE] [iSCSI]

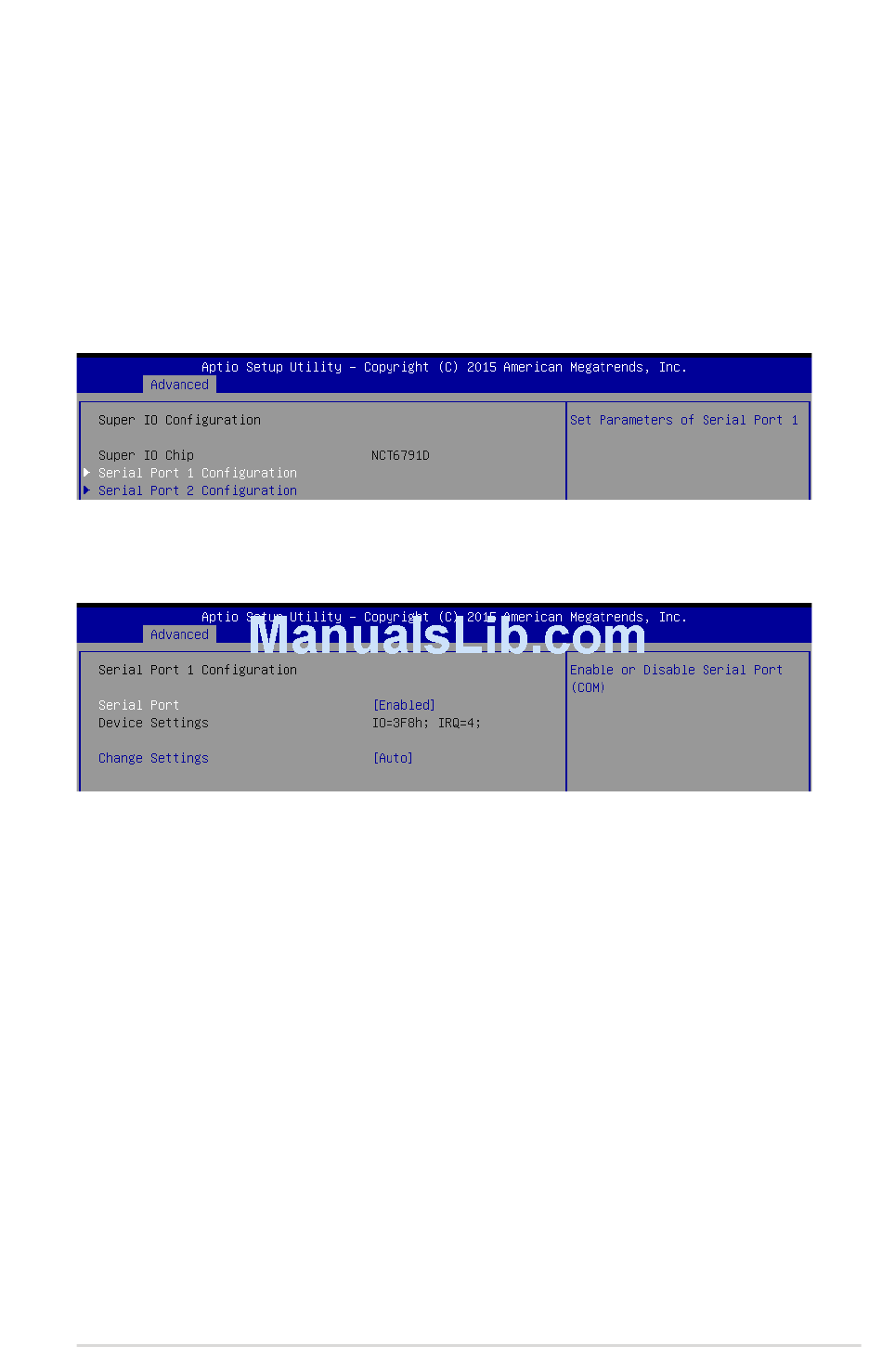

Super IO Configuration

Serial Port 1 Configuration
Allows you to set the parameters of Serial Port 1.
Serial Port [Enabled]
Allows you to enable or disable Serial Port (COM).
Configuration options: [Disabled] [Enabled]
Change Settings [Auto]
Allows you to choose the setting for Super IO device.
Configuration options: [ Auto] [IO=3F8h; IRQ=4;]
ASUS P10S-C/4L
[IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;]
[IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;]
[IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;]
[IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;]
