Page 1: User Manual
Version User Manual IT-Infrastructure IF1000 series... -
Page 2: Table Of Contents
Eventlog Display / Keypad Managed Switch Service Equipment Versions Scope of Delivery Environmental Conditions 4 Mounting External Device Dimensions Mounting Dimensions Mounting options 4.3.1 Top Hat Rail Mounting 4.3.2 Wall mounting © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... - Page 3 Manual Network adapter configuration Settings for use with Internet Explorer 8 Calling up the Device Web Interface 7 Technical Details 8 Service & Support ads-tec Support Company adress 9 Declaration of CE-Conformity © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
-
Page 4: Remarks
Any reproduction, translation as well as electronic and photographic archiving and modification shall only be permitted after explicit written authorisation by ads-tec GmbH. Any party in violation of this provision shall be obliged to damage compensation. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 5: Standards
EMC legislation. For this reason, screened bus and LAN cables including screened connectors must be used and installed according to the instructions in this user manual. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 6: Notes On Operation & Safety
Note: Only the ads-tec original firmware / software is allowed for any of the adjustments and features described in this User’s Guide. Deployment of any firmware / software that has not been released by ads-tec will terminate all warranty conditions. -
Page 7: Operation Location
2.4 Warranty / Repair During the warranty period, any repair must only be carried out by the manufacturer or by a person authorised by the manufacturer. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 8: Introduction
The tool offers you for example the possibility of defining individual parameters or whole groups of parameters at a Server device and to transfer your settings to a limited selection and/or to all ads-tec devices of same design and version, without having to make these configurations time- consuming at each individual device. -
Page 9: Settings For Use With Internet Explorer

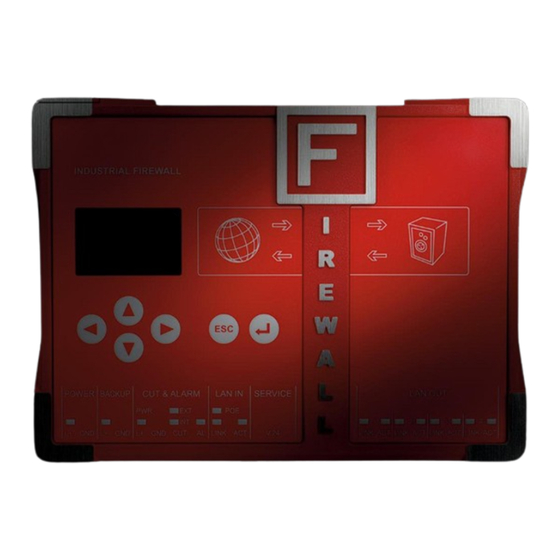

1 x Industrial Firewall 2 x 2 pole Plug 1 x 4 pole.Plug Ethernetcable 1m Quick Guide Inbetriebnahme / Quick Guide Montage GNU General Public License Service-CD © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 10: Environmental Conditions
The unit can be put into operation and used under the following conditions. Failure to observe any one of the specified data will immediately terminate all warranty conditions. ads-tec cannot be held liable for any damages arising due to improper device or unit use and handling. -
Page 11: Mounting
IF1000 series 4 Mounting 4.1 External Device Dimensions Abb. 1: © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 12: Mounting Dimensions
IF1000 series 4.2 Mounting Dimensions Abb. 2: © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 13: Mounting Options
3. The Firewall must firmly snap into place on the top hat rail. Abb. 3: Note: Check to make sure that the Firewall will not detach itself from the top hat rail by lightly tugging the underside forward. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 14: Wall Mounting
170mm. 2. Attach on the Firewall by way of the appropriate cavities as illustrated. Abb. 4: To release the unit from the DIN rail, proceed in reverse order. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 15: Systemfeatures
ASCII code. However, a space character is assigned for simplification of first-time operation of the DOWN navigation direction option. If the key is pressed a second time, the system proceeds with ASCII character strings. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... - Page 16 (RIGHT) the UP and DOWN arrow keys. Note: To carry out changes in the LCD menus, the following character set is available. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
-
Page 17: Example Configuration Ip-Adresss And Contactname
Press ENTER to activate the iput mode. -> The input focus will be active on the first digit. Press the RIGHT direction arrow key six times -> The input focus will be active on the 2 © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... - Page 18 If the input mode is exited by pressing ESC, the changes are overruled/ abandoned. Press the ESC key to exit this menu. All the changes entered have been duly stored. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
- Page 19 If the input mode is exited by pressing ESC, the changes are overruled/ abandoned. Press the ESC key to exit this menu. All the changes entered have been duly stored. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
-
Page 20: Lc-Display
Settings/ LCD menu/ Language Confirm your selection by pressing ENTER. (Selection will be marked by an X.) Then leave the menu by pressing ESC. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 21: Menu-Overview Settings
IF1000 series 5.3 Menu-Overview Settings © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 22: Description Of Individual Menu Items
IP-Router = LAN-In/LAN-Out Settings.. LAN-Einstellungen Depending on the selected operational mode, IP address assignment can be configured under LAN Settings. Available options are: Static IP address, DHCP, DHCP fallback and PPPoE/DHCP. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... - Page 23 This item serves as a unique identifier of the responsible contact person and their location. A contact location can be specified/changed here. In addition to the name of the contact person, you may also specify their location. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
- Page 24 When the Firewall is turned off and on again, the lock will still be active and the PIN needs to be re-entered. Unlocked By default, neither keys nor display are locked. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
- Page 25 PIN may be up to 14 digits long. Reboot Selection Action Display The reboot option allows re-starting the Firewall via the LCD menu. Confirm selection of this option by pressing the down key . © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
-
Page 26: Menu-Overview Status
IF1000 series 5.4 Menu-Overview Status © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 27: Description Of Individual Menu Items
Use the menu item IPsec to display all IPsec-related information and settings. The display screen can be used to monitor the IPsec status. Settings can be changed directly via the LCD menu. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... - Page 28 AL will continue to flash until the alarm is either switched off or acknowledged automatically. Perform this test to check the alarm output for correct functioning. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
- Page 29 IP address form in the appropriate entry field. It is furthermore necessary to enter the packet quantity required to be sent. Said quantity is limited to a maximum of 10 packets. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
-
Page 30: Operational Led Status Display
POWER and is ready for operation. BACKUP Signal Action The device is not supplied with a backup power. The device is provided with voltage via POWER and is ready for operation. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... - Page 31 The device is provided with voltage via PoE and is ready for operation. LINK The interface is connected to a remote station and is ready for operation. Displays the traffic between the firewall and remote. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
-
Page 32: Lan-Out
IF1000 series 5.5.2 LAN-OUT Abb. 6: LAN-OUT Signal Action LINK The interface is connected to a remote station and is ready for operation. Displays the traffic between the firewall and remote. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 33: Operational Led Status Displays
The factory default keys must be pressed once, briefly in order to start the set-back to default settings process 5.6.3 Status display activities with Firmware Updates A firmware update can be made by using the web interface. The actual process of updating might take a few minutes. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 34: Interface Overview
The supply voltage implements a lead-through terminal with screw connection (the illustration shows the jack provided in the device)) Pin-Number Signal-Name 24V DC 0 V DC PIN 1: = L+ 24V DC Power Supply PIN 2: = GND Ground © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 35: Cut & Alarm
RX - PoE/-48V PoE/-48V 5.7.4 LWL Fibre Optic An MTRJ fibre optic plug is implemented for the LWL fibre optic connection.62.5/125µm multimode cable from the MTRJ plug to the Duplex plug. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 36: Serial Interface Com (Rs232)
RS232 for connection of an analogue, ISDN or GPRS standard modem unit Pin-Number Signal-Name 5.7.6 SMARTCARD READER NACH ISO 7816 The SIM card reader serves for the storage of the configuration data. Pin-Number Signal-Name VCC 5 Volt RESET CLOCK © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 37: Commissioning
For initial installation it is essential to establish a connection between this device and a PC by using a RJ45 network cable. To connect the device with a PC: Device HOST connector <-> PC LAN connector © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 38: Manual Network Adapter Configuration
Once the IP address is entered, you have to input the Subnet mask address. If you click into the Subnet mask box, the correct address is automatically entered. Subnet Mask: 255.255.255.0 You can now close the dialogue boxes by pushing the "OK" button. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 39: Settings For Use With Internet Explorer 8
Then click on Advanced. Abb. 10: In the Add this website to the zone address line, enter the device IP address and confirm this step with Add. Default IP address: http://192.168.0.254 © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... - Page 40 IF1000 series The entered IP address should now appear in the list under Websites. Abb. 11: © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
-
Page 41: Calling Up The Device Web Interface
It often occurs that also local subnet addresses ( e.g. 192.168.x.x) are diverted to a proxy server. In this case it is possible to select the “Bypass proxy server for local addresses” option to enter the © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... - Page 42 IF1000 series address in question. Finally, the device web interface will come up on screen. Abb. 13: © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
-
Page 43: Technical Details
Max. Power consumption max.12 Watt (typ.)bei 24V DC Environmental temperature during operation -0°C ... + 60°C during storage 0°C ... + 50°C (UL) Note: Detailed information for the device, see our website http://www.ads-tec.de. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 44: Service & Support
For devices not directly purchased from ads-tec, we cannot be responsible for the support. In this case, the support is provided by our partner company. -
Page 45: Declaration Of Ce-Conformity
IF1000 series 9 Declaration of CE-Conformity IF1100 © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... - Page 46 IF1000 series IF1110 © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
