Monogram ZEK7000SHSS Installation

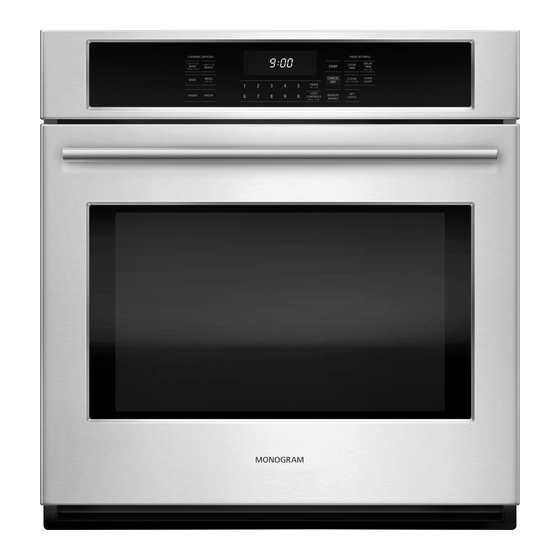

MONOGRAM 27" BUILT-IN SINGLE OVEN

SPECIFICATIONS

Overall Width
Overall Height
Overall Depth
Including Handle
Oven Door Clearance
Overall Oven
Interior Capacity
Oven Interior Dimensions
(W x H x D)
Minimum Cabinet Width*
Minimum Cabinet Depth*
Minimum Base Support
Cutout Width*
Cutout Height*
Cutout Depth*
Volts/Hertz/Amps
Conduit Length
Electrical Rating
Shipping Weight
* Additional space will be needed for flush installation.
ATTENTION ELECTRICIAN:
A 240/208V, 60Hz, 20 Amp circuit is required.
An individual properly grounded branch
circuit or circuit breaker is required. Hardware
junction box is required for built-in product.
26-3/4" (68.0 cm)
28-13/16" (72.2 cm)
26-5/8" (67.6 cm)
20-9/16" (52.2 cm)
4.3 cu. ft. (121.8 liters)
21-1/2" x 17-1/4" x 20"
(54.6 x 43.8 x 50.8 cm)
27" (76.2 cm)
24" (61.0 cm)
220 lbs. (99 kg)
25" (63.5 cm) Min
25-1/4" (64.1 cm) Max
27-5/8" (70.2 cm) Min
28-1/8" (71.4 cm) Max
23-1/2" (59.7 cm) Min
240/208 V AC, 60 Hz, 20A
40" (72" available special
order: WB18T10398)
2.7 kW at 208V
3.6 kW at 240V
140 lbs. (64 kg)

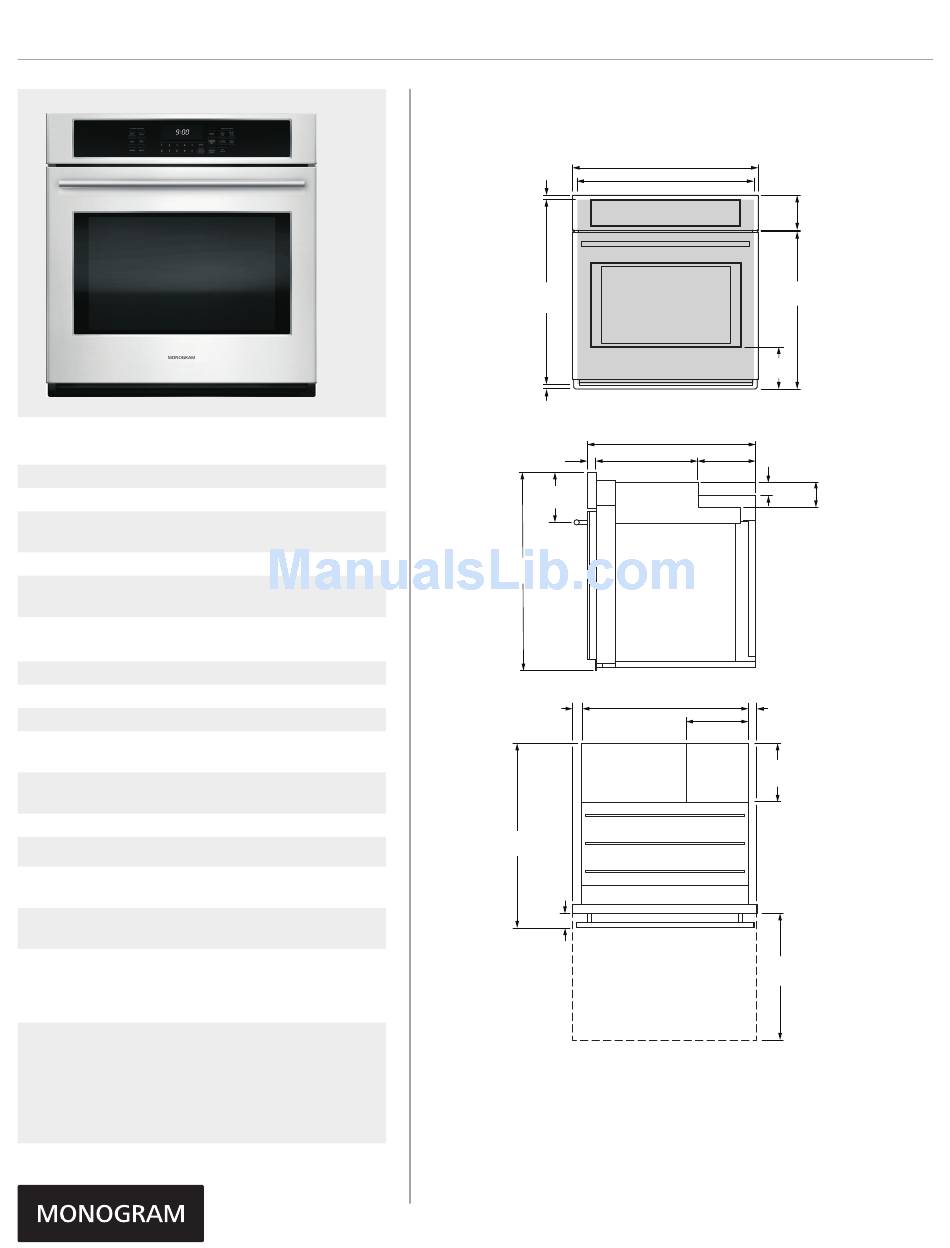

OVERALL DIMENSIONS
ZEK7000SHSS
3/4"
(1.9)
27 5/8"
(70.2) min
cutout height
7/16"
(1.1)
FRONT VIEW (SHOWING CUTOUT OVERLAP)
1 5/16"
(3.3)
7 1/4"
(18.4)
28 13/16"
(73.2)
15/16"
(2.4)
26 5/8"
(67.7)
2"
(5.1)
SHOWING DOOR CLEARANCE
Dimensions in parentheses are in centimeters unless
otherwise noted. Actual product dimensions may vary
due to manufacturing tolerances.
ZEK7000SHSS
26 3/4"
(68.0)
25"
(63.5)
min cutout width
23 1/4"
(59.1)
6 3/8"
(16.2)
24 5/8"
(62.6)
14 15/16" 8 3/8"
(38.0) (21.3)
1 7/8"
(4.7)
SIDE VIEW
24 7/8" 15/16"
(63.2)
(2.4)
9 3/8"
(24.0)
8 3/8"
(21.4)
TOP VIEW
20 9/16"
(52.2)
min
OPEN OVEN DOOR
Product Specification Revised 9/16
5 1/4"
(13.4)
3 1/2"
(8.8)
