Monogram ZEK938BM Dimensions And Installation Information

ZEK938SM/BM

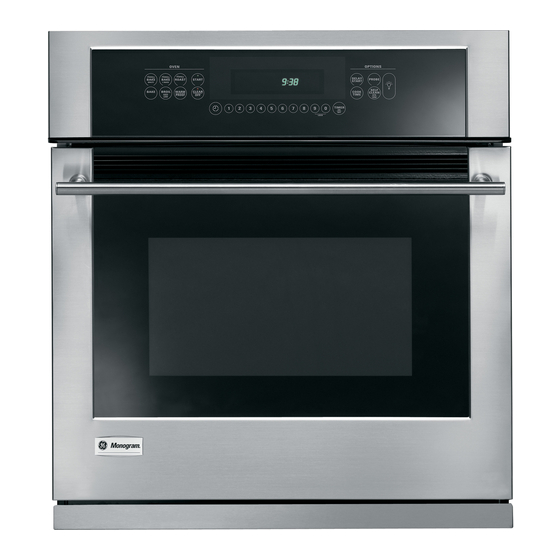

Monogram 27" Built-In Single Oven
Dimensions and Installation Information (in inches)
KW Rating
240V 3.4
208V 2.6
Breaker Size
240V 20 Amps
208V 20 Amps
Installation Flexibility
These ovens may be installed below a countertop and
beneath approved cooktops. They may also be installed
in combination with an Advantium oven and a warming
drawer. This oven is not approved for stackable, one over
another installations, or side-by-side installations.
Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a 194°F
temperature rating.
Installation Information: Before installing, consult
installation instructions packed with product for current
dimensional data.
For answers to your Monogram
questions, visit our website at monogram.com
or call GE Answer Center
®
800.626.2000.
appliance
®
service,
23-1/2"
Min.
23-1/2"
Min.
25" Min.
27-5/8" Min.
25-1/4" Max.
28-1/8" Max.
25" Min.
27-5/8" Min.
25-1/4" Max.
28-1/8" Max.
32-1/2"
32-1/2"
27"
27"
The solid bottom or runners must be level with the bottom of the
cutout, or the bottom trim may not install correctly and could
interfere with the door opening. If the cabinet does not have a
solid bottom, two braces or runners must be installed level with
the bottom of the cutout to support the weight of the oven. The 605Dia94
runners and braces must support 150 lbs. (68 kg).
605Dia94
Per Advantium or
Microwave Oven
Requirement
Per Warming Drawer
Requirement
Locate Electrical Outlet Within 10"
of Left Side of Opening 22" Above
Cutout Floor or 5" Below Cutout Floor
Locate Electrical Outlet Within 10"
of Left Side of Opening 22" Above
Cutout Floor or 5" Below Cutout Floor
26-5/8"
23-1/4"
Recessed
Depth
23-1/4"
Recessed
Depth
2 (5.1 cm) Min.
2 (5.1 cm) Min.
Note: Install the
oven only with
specific models
listed on the label
located on top of
the oven.
Listed by
Underwriters
Laboratories
Specification Revised 5/07
29"
29"
26-5/8"
