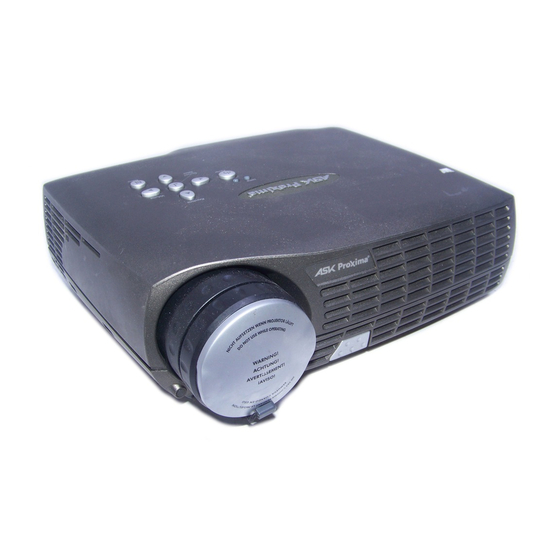

Ask Proxima M2+ User Manual

Hide thumbs Also See for M2+:
Table of Contents

Advertisement

Quick Links

> > > > > > >
User's
Guide
Downloaded From projector-manual.com ASK Manuals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2+ and is the answer not in the manual?

Questions and answers

Related Manuals for Ask Proxima M2+

Summary of Contents for Ask Proxima M2+

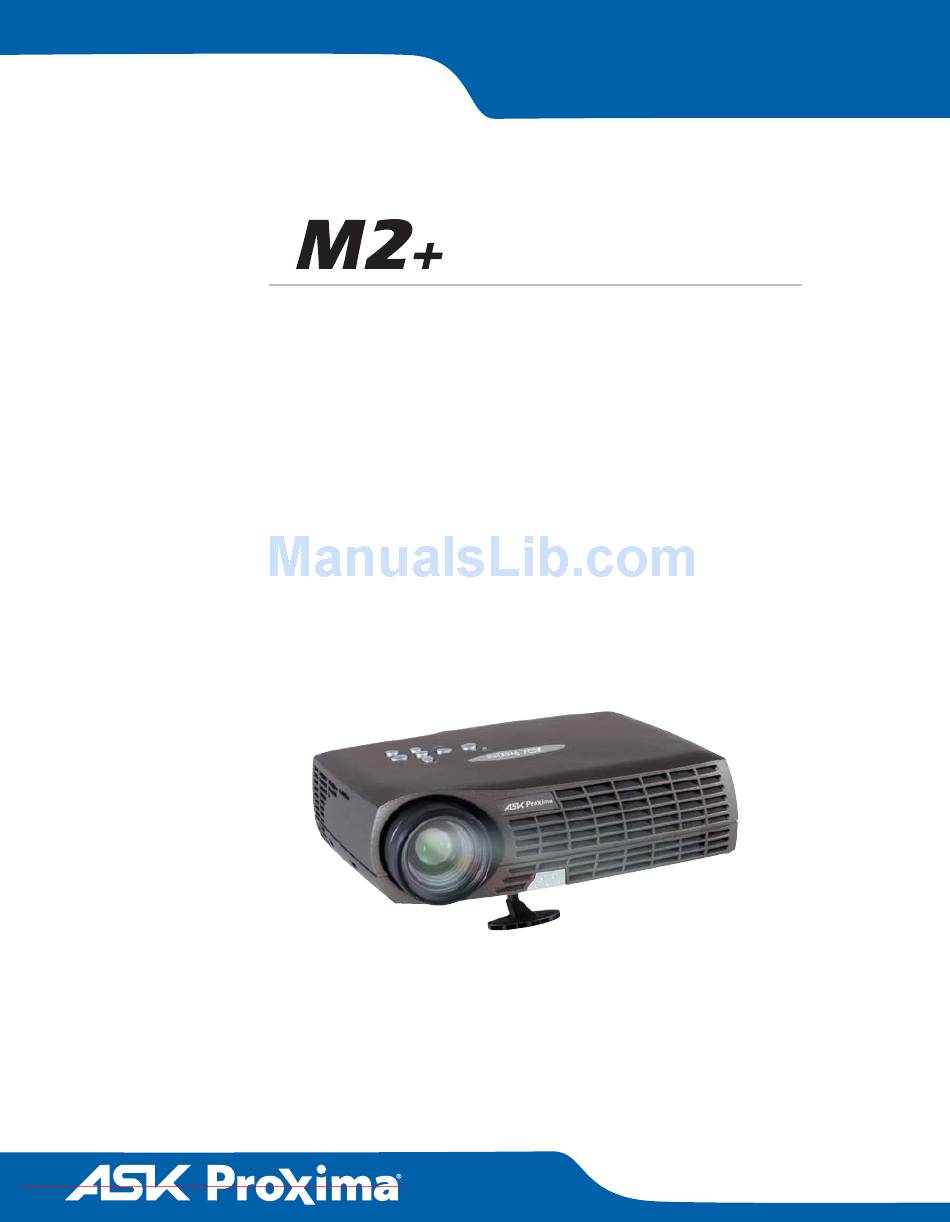

  • Page 1 > > > > > > > User’s Guide Downloaded From projector-manual.com ASK Manuals...
  • Page 2 FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 Declaration of Conformity Manufacturer: InFocus Corporation 27700B SW Parkway Ave. Wilsonville, Oregon 97070 USA European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands We declare under our sole responsibility that the projector conforms to the follow- ing directives and norms: Directive 89/336/EEC, Amended by 93/68/EEC EMC: EN 55022 EN 55024...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Safety Instructions Introduction Image Resolution Compatibility Unpacking the Projector Usage Guidelines If You Need Assistance Warranty Setting up the Projector Connecting a Computer Connecting a Video Player Powering up the Projector Turning Off the Projector Using the Projector Basic Image Adjustment Adjusting the Projector Using the Remote Control...
  • Page 5 Downloaded From projector-manual.com ASK Manuals...

  • Page 6: Safety Instructions

    SAFETY INSTRUCTIONS Please read and follow all safety instructions provided BEFORE using your new projector. Failure to comply with safety instruc- tions may result in fire, electrical shock, or personal injury and may damage or impair protection provided by equipment. Please save all safety instructions.
  • Page 7 Caution: Don’t set liquids on the projector. Spilled liquids may • damage your projector. Caution: Don’t place the projector on a hot surface or in direct • sunlight. Caution: Do not drop the projector. Transport the projector in • an approved case; see page 37 for a list of cases. Important Operating Considerations for Safety Place the projector in a horizontal position no greater than 15 •...

  • Page 8: Introduction

    INTRODUCTION The ASK Proxima M2+™ is a projector specifically designed for portability, connectivity, and collaboration. It is easy to connect, easy to use, easy to transport, and easy to maintain. Image Resolution The XGA resolution of the projected image is 1024x768. The pro- jector is compatible with screen resolutions up to 1280x1024.
  • Page 9 IGURE Shipping box contents Projector + lens cap Audio cable Remote control with batter- Computer cable User’s Guide, Quick Start SCART adapter * card, and CD Audio/Video (A/V) cable Power cord * * country-dependent Downloaded From projector-manual.com ASK Manuals...
  • Page 10 zoom ring keypad focus ring remote control sensor (IR) IGURE Front view of projector connectors remote control sensor (IR) power connector security lock IGURE Rear view of projector foot release speaker lamp housing adjustable foot leveling foot IGURE Downloaded From projector-manual.com ASK Manuals Bottom view of projector...

  • Page 11: Usage Guidelines

    Usage Guidelines Do not look directly into the projection lens when the projector • is turned on. The bright light may harm your eyes. Do not block the grills on the projector. Restricting the air flow • can cause it to overheat and turn off. If this happens, you must wait a minute before attempting to turn it back on.

  • Page 12: Setting Up The Projector

    SETTING UP THE PROJECTOR 1 Place the projector on a flat surface. The projector must be within 6 feet (1.8 m) of your power • source and your computer. If you want to project from behind a translucent screen, set •...
  • Page 13 Computer NOTE: Before you continue, S-video make sure the projector and all other equipment is turned off. If you’re connecting a computer, make sure the distance between it Audio in Composite video and the projector is 6 feet or less. IGURE Connector panel Wireless Projection...

  • Page 14: Connecting A Computer

    Connecting a Computer The projector ships with an analog computer cable. If your com- NOTE: Many laptop computers puter has a digital output, you can order the optional digital com- do not automatically turn on their puter cable. Using a digital source generates the highest quality external video port when a sec- and brightest image possible.
  • Page 15 Do you want to advance slides in PowerPoint with the projector’s remote? 1 Plug the USB end of the computer cable into the mouse con- nector on your computer. NOTE: The USB mouse is You must have the appropriate USB drivers installed on your supported for use with computer to use the USB feature.

  • Page 16: Connecting A Video Player

    Connecting a Video Player If your video device (VCR, DVD player, video camera) uses a round, one-prong composite video connector, use the composite audio/video (A/V) cable. If your video device uses a round, four-prong S-video con- • nector, use an S-video cable, ordered separately. S-video generates a higher quality image.
  • Page 17 S-video audio audio S-video IGURE Connecting the projector to a VCR using the S-video cable and A/V cable 3 Plug the A/V cable’s white connector into the left “audio out” connector on your video device. Plug the cable’s red connec- CAUTION: Your video player tor into the right “audio out”...

  • Page 18: Powering Up The Projector

    Powering up the Projector 1 Remove the lens cap. NOTE: Always use the power cord 2 Plug the power cord into the side of the projector, then plug it into your electrical outlet. A surge-protected power strip is that shipped with the projector. recommended.
  • Page 19 Uncheck any checked boxes, then click Next. Windows auto- matically locates the driver. If this driver has been removed, reload the driver using your Windows operating system CD. When Windows finds the driver, you are ready to install it. Click Next. Downloaded From projector-manual.com ASK Manuals...
  • Page 20 Click Finish when installation is complete. 6 The computer image should display on the projection screen. If it doesn’t, press the button on the keypad or Source/Select button on the remote to display your com- Computer puter’s image. Make sure your laptop’s external video port is activated; •...

  • Page 21: Turning Off The Projector

    Turning Off the Projector To turn off the projector, press the button. A dialog box Power appears, asking for confirmation. Press again to turn the Power lamp off. The fans continue to run and the LED blinks orange for about 90 seconds, then the projector shuts off. The LED then stays on solid orange until the power cord is removed from the projec- tor.

  • Page 22: Using The Projector

    USING THE PROJECTOR This section describes how to use and make adjustments to the projector. It also provides a reference to the keypad and remote buttons and the options available from the on-screen menus. Basic Image Adjustment 1 Make sure you have powered up your equipment in the right order (page 11).
  • Page 23 The projector is equipped with a self-locking, quick-release foot and a leveling foot. To raise the projector: 1 Raise the projector to the height you want, then press and hold the foot release button. Release the button to lock the foot into position (Figure 11).

  • Page 24: Using The Remote Control

    Using the Remote Control To advance PowerPoint slides with the projector’s remote, you must connect the USB cable on the projector’s computer cable to the computer. See page 8 for more information. Point the remote control at the projection screen or at the front or rear of the projector (not at the computer).

  • Page 25: Using The Keypad And Remote Buttons

    Using the Keypad and Remote Buttons While the menus are displayed, the buttons Keystone Volume on the keypad and the arrow buttons on the remote and the Select but- act as menu navigation and adjustment buttons. See “Using the On-Screen Menus” on page 20 for details. IGURE Keypad and remote buttons Menu...
  • Page 26 Volume, Mute Press the buttons to adjust the volume and the but- Volume Mute ton to silence the sound. Arrow buttons Use these to navigate through and make adjustments to the on-screen menus. See “Using the On-Screen Menus” on page 20 for details.

  • Page 27: Using The On-Screen Menus

    Blank Press this button to display a blank screen instead of the current image. Using the On-Screen Menus The projector has menus that allow you to make image adjust- ments and change a variety of settings. To open the on-screen menus, press the button on the Menu keypad or remote.

  • Page 28: Basic Menu

    Basic Menu IGURE Basic menu Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image. 1 Use the up and down arrows to highlight Contrast, press , use the arrows to adjust the contrast from 0 to 100 in Select the slider bar, then press...
  • Page 29 Keystone This option helps to keep the image square as the angle of projec- tion is changed. Use this feature to adjust the image vertically and make a squarer image. See page 19 for details on keystone adjustments. 1 Press the down button to highlight Keystone, then press .

  • Page 30: Setup Menu

    Setup menu IGURE Setup and Picture menus Picture menu : The default is 4:3. Click 16:9 if you are watching • Aspect Ratio videos in widescreen format. Click Native to display the image in its native format. Highlight Aspect Ratio, press , use Select the up and down arrows to highlight your selection, then press...
  • Page 31 System menu Turn the features in the System menu on and off by highlighting them and pressing . A checkmark in the box indicates the Select feature is on; an empty box means the feature is off. IGURE System menu : This reverses the image so you can project from behind a •...
  • Page 32 Language menu You can display the on-screen menus in German, English, Span- ish, French, Italian, Norwegian, Portuguese, Japanese, Chinese, or Simplified Chinese. Highlight the desired language, then press . The menus redraw immediately. Select IGURE Language menu Effect menu This menu allows you to assign a different effect to the but- Effect ton on the remote.
  • Page 33 Service menu IGURE Service menu : This resets all options (except rear, language, and • Factory reset lamp time) to the original factory settings. Highlight it, then press . A confirmation dialog box appears. Press Select Select reset, or press the right arrow button to highlight No, then press if you don’t want a reset.
  • Page 34 User’s logo menu This menu allows you to display a blank blue or black screen instead of the default screen at startup and when no source is detected. It also allows you to capture and display a custom logo. IGURE User’s logo menu Highlight the desired color (black or blue), then press •...
  • Page 35 PiP (Picture in Picture) allows you to overlay a smaller window showing the video source on top of the larger computer source window. You must have both a computer and video source con- nected to use PIP. You can’t show a computer image in the smaller PiP window, only a video image.

  • Page 36: Maintenance & Troubleshooting

    MAINTENANCE & TROUBLESHOOTING This section describes how to: clean the lens • clean the lamp filter screens • replace the projection lamp • replace the batteries in the remote • use the security lock feature • troubleshoot the projector • Cleaning the Lens Follow these steps to clean the projection lens: 1 Apply a non-abrasive camera lens cleaner to a soft, dry cloth.

  • Page 37: Replacing The Projection Lamp

    & Replacing the Projection Lamp The lamp hour timer in the Service Info menu counts the number of hours the lamp has been in use. When the timer reaches 2900 WARNING: To avoid burns, hours, the Lamp LED lights red, indicating that it is time to allow the projector to cool for at change the lamp.
  • Page 38 IGURE Inserting the screwdriver into the lamp housing tab 5 Carefully remove the lamp housing. Dispose of the lamp in an environmentally proper manner. WARNING: Do not drop the lamp module or touch the glass bulb! The glass may shatter and cause injury.

  • Page 39: Replacing The Batteries In The Remote Control

    & Replacing the Batteries in the Remote Control The life of the batteries depends on how often and how long you use the remote. Symptoms of low battery charge include erratic responses when using the remote and a reduced range of opera- tion.

  • Page 40: Troubleshooting

    Troubleshooting LEDs The Lamp LED on top of the projector (Figure 13 on page 18) will alert you to certain problems. A solid red Lamp LED means it is time to change the lamp. • See page 30. A blinking red Lamp LED means the projector is overheat- •...
  • Page 41 & Problem: Only the start-up screen displays Verify that the cables are connected correctly. See page 7 for • connection procedures. Make sure that the cables do not have any bent pins. • Verify that the proper input source is connected. See “Com- •...
  • Page 42 Problem: Image is too wide or narrow for screen Adjust the zoom or projector placement. • Adjust the width of the image. See page 23. • Problem: Image is out of focus Turn the projection lens to focus the image. •...
  • Page 43 & Problem: Lamp shuts off A minor power surge may cause the lamp to shut off. Turn off • the projector, wait at least a minute, then turn it back on. Make sure the vents on the projector are not blocked. •...

  • Page 44: Appendix

    APPENDIX Accessories Standard Accessories (ship with the projector) Part Number Quick Start card 009-0640-xx User’s Guide 010-0538-xx 010-0539-xx Shipping Box (with packaging) 111-0005-xx Computer Cable 6 ft (1.8 m) 210-0185-xx Audio/Video Cable 6 ft (1.8 m) 301379B Audio Cable 6 ft (1.8 m) 210-0118-xx Power Cord, US* 210-0255-xx...

  • Page 45: Projected Image Size

    Projected Image Size Use the table to help you determine projected image sizes. Table 1: Image Size, Width and Height for Lens at Maximum Image Size Distance to Diagonal Width Height Screen (feet/m) (inches/m) (inches/m) (inches/m) 4.9/1.5 40/1 32/.8 24/.6 7.4/2.3 60/1.5 48/1.2...

  • Page 46: Index

    IBM-compatible 1 INDEX Macintosh 1 computer cable 2, 6, 7 computers About 22 compatible 1 accessories, ordering 37 connecting 6, 7 adjusting connecting brightness 21 computer 6, 7 color 21 power cord 11 contrast 21 video player 9–10 height of projector 15 Connector panel 6 image position 23 contrast, adjusting 21...
  • Page 47 IBM-compatible computers Macintosh computers compatibility 1 compatibility 1 connecting 6, 7 connecting 6 image Magnify 25 adjusting 11, 15 magnifying the image 19 colors don’t match computer’s 35 maintenance 29 focusing 15 menus. See on-screen menus freezing 25 monitor, projected colors don’t match has lines or spots 35 not centered 34 Mute 25...
  • Page 48 safety guidelines iii User’s logo menu 27 security lock 32 Service Code 26 vertical lines displayed 35 Service menu 26 video cable Setup menu 21, 22 connecting 9 Sharpness 23 Volume Shipping box contents 2 remote 19 shutting off the projector 14 sound no sound 35 wireless projection 6...
