GB
Instructions for myintercom
Operation

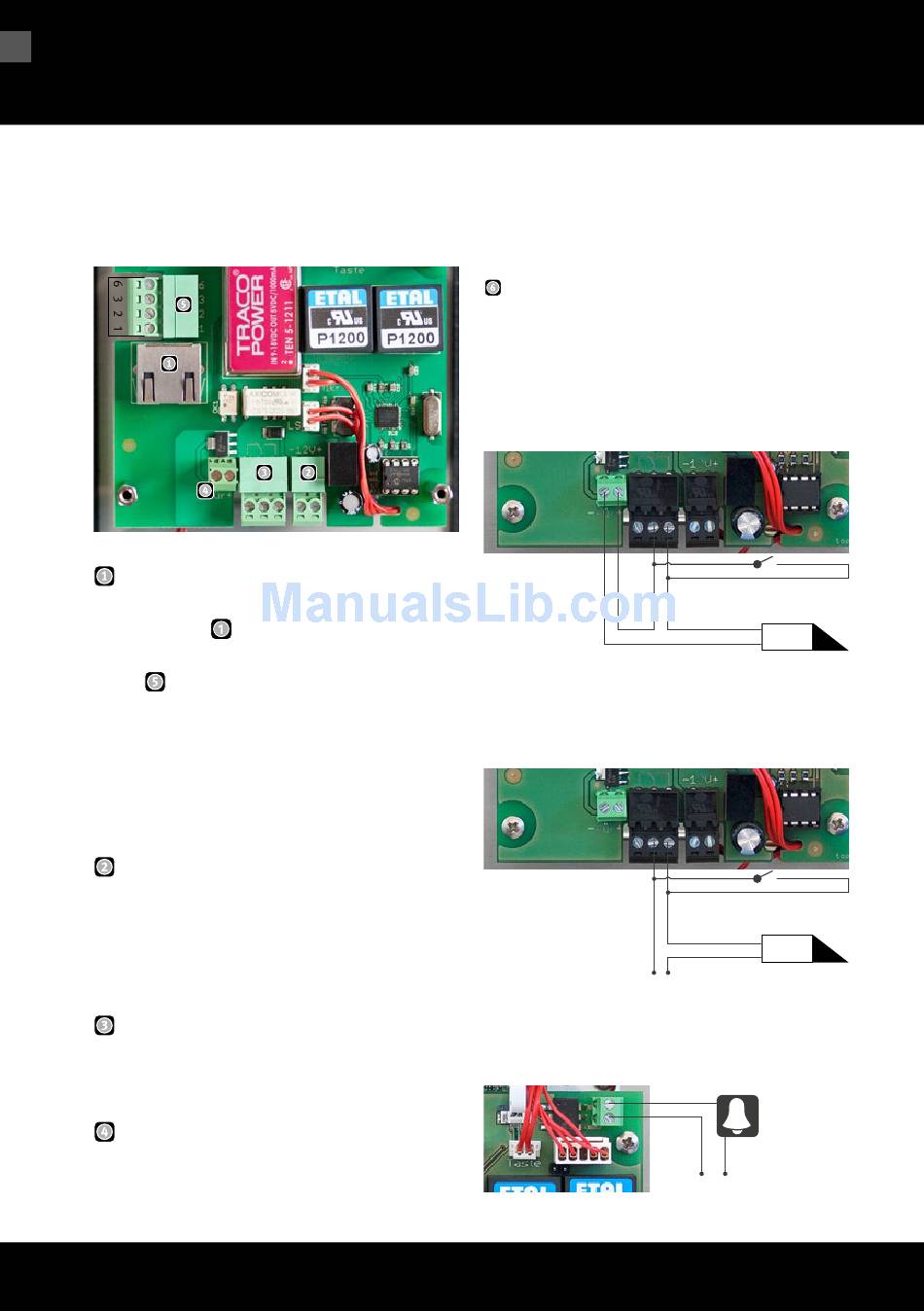

1.9. Connecting the myintercom video door intercom
LAN connection
The LAN connection is generally in the form of
an RJ-45 plug (
nect the individual leads directly to a terminal
strip (
); in accordance with EIA/TIA 568 B,
the network is connected to the terminals as
follows: 3 (green-white), 6 (green), 1 (orange-
white) and 2 (orange) whereby the number
denotes the respective pin of the RJ-45 plug
or socket.
Power supply
Power is supplied to the myintercom video
door intercom via the Behnke 15V wall-plug
power supply. The use of any other power
supply is not permitted.
Switch output
Potential-free output for controlling a door
opener, maximum load 24V, 2A.
12V ~ 1A output
Power supply for door opener
32
). It is also possible to con-
Switch output
Potential-free output for controlling an exter-
nal door bell, maximum load 20V, 2A
If power supply for door opener is not available
on site:
*
TÖ = Door opener
If power supply for door opener is available
on site:
*
TÖ = Door opener
Connecting an external door bell:
Ext. door open button
(on site)
TÖ
Ext. door open button
(on site)
TÖ
Ext. door opener power
supply, Max. 24V, 2A
door bell
(on site)
bell transformer (on site)
