Aruba 610 Series Campus Access Points
Installation Guide
The 610 Series Campus Access Points Access Points are high-performance, multi-radio wireless devices that can be
deployed in either controller-based (AOS-W) or controller-less (AOS-W Instant) modes in hospitality and branch or
teleworker deployments. The Aruba 610 Series campus Access Points support the full 802.11ax (Wi-FI 6) featureset with
dual 2x2 MIMO radios, deliver locationing functions, and can serve as a flexible IOT gateway, delivered through the built-
in BLE and 802.15.4 radio.
A variety of mounting scenarios are supported by a range of mount kits (sold separately). Make sure to purchase the
correct mount kit for the intended deployment of the AP.
Hardware Overview
The following sections describe the hardware components of the 610 Series access point.

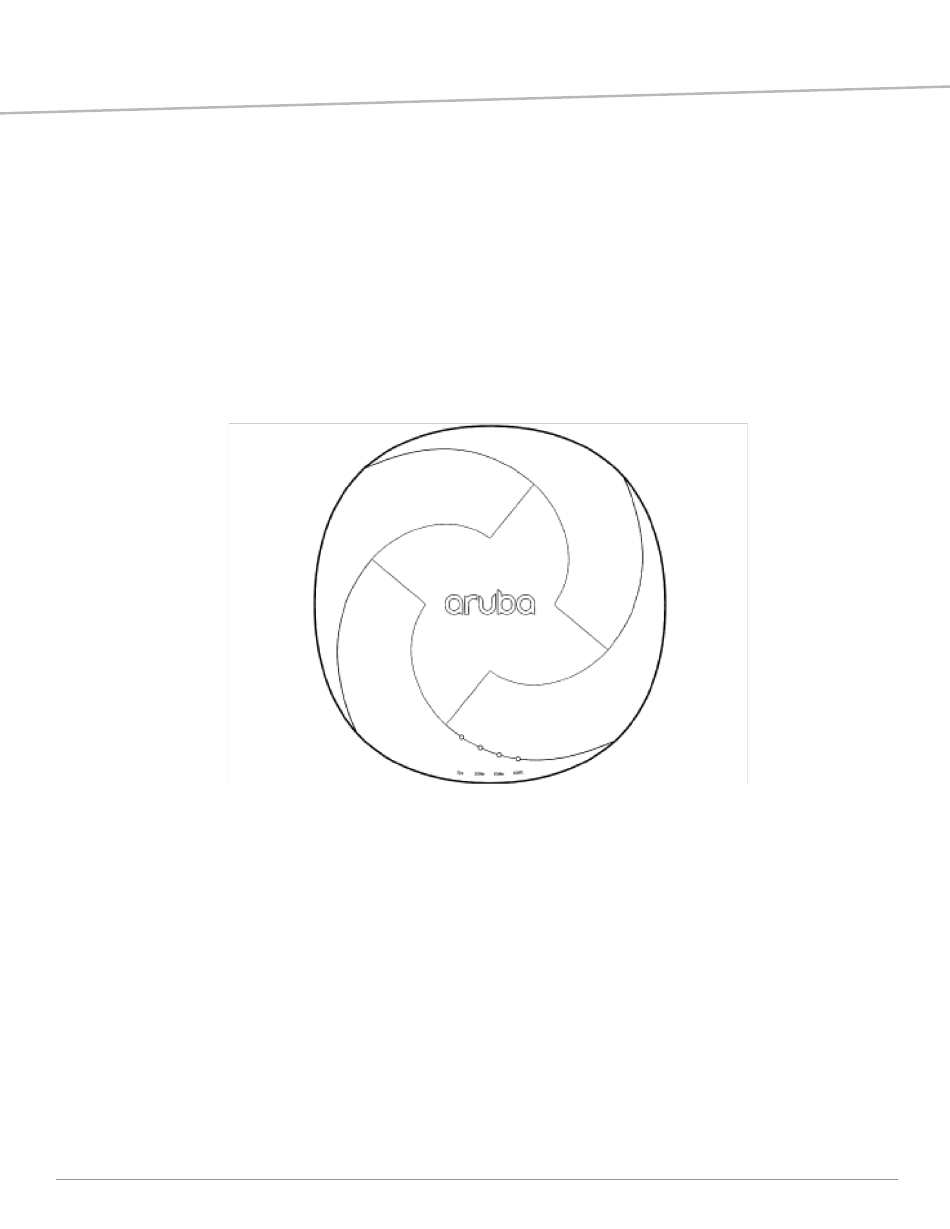

AP-615 (front view)
Figure 1
Installation Guide | May 2023
1
Advertisement
Table of Contents
Related Manuals for Aruba 610 Series
Summary of Contents for Aruba 610 Series
- Page 1 (AOS-W) or controller-less (AOS-W Instant) modes in hospitality and branch or teleworker deployments. The Aruba 610 Series campus Access Points support the full 802.11ax (Wi-FI 6) featureset with dual 2x2 MIMO radios, deliver locationing functions, and can serve as a flexible IOT gateway, delivered through the built- in BLE and 802.15.4 radio.
- Page 2 610 Series Campus Access Points (side view) Figure 2 AP-615 Access Point Bottom View Figure 3 E0 Ethernet Port E1 Ethernet Port Access Point Rear View Figure 4 Aruba 610 Series Campus Access Points | Installation Guide...
- Page 3 The console port is a Micro-B connector is located on the back of this device. Use the proprietary AP-CBL-SERU cable or AP-MOD-SERU module (sold separately) for direct management of this device when connected to a serial terminal or laptop. | Installation Guide Aruba 610 Series Campus Access Points...
- Page 4 5: GND Ethernet Ports The 610 Series access points are equipped with two active Ethernet ports (E0 and E1). Both ports are 100/1000/2500/5000 Base-T, auto-sensing MDI/MDX, which supports uplink connectivity when linked by an Ethernet cable. Refer to Figure 6 for a detailed port pin-out.
-
Page 5: Before You Begin
FCC for immediate termination of operation and may be subject to forfeiture (47 CFR 1.80). Pre-Installation Checklist Before installing your 610 Series access point, be sure that you have the following (not included with the access point): A mount kit compatible with the AP and mount surface ... -
Page 6: Access Point Installation
Otherwise, degradation of the performance of this equipment could result. Access Point Installation All Aruba access points should be professionally installed by an Aruba-Certified Mobility Professional (ACMP). The installer is responsible for ensuring that grounding is available and meets applicable national and electrical codes. -
Page 7: Verifying Post-Installation Connectivity
Software Aruba 610 Series requires ArubaOS or Aruba Instant8.10.0.0 or later. For instructions on choosing operating modes and initial software configuration, refer to the AP Software Quick Start Guide. Aruba access points are classified as radio transmission devices, and are subject to government regulations of the host country. -
Page 8: Regulatory Information
AP-615 RMN: APIN0615 Aruba Networks provides a multi-language document that contains country-specific restrictions and additional safety and regulatory information for all Alcatel-Lucent Enterprise access points.This document can be viewed or downloaded at arubanetworks.com. Changes or modifications to this unit not expressly approved by the party responsible for regulatory compliance could void the user’s authority to operate this equipment. - Page 9 Equpment Regulations 2017/UK is available for viewing at: www.hpe.com/eu/certificates. Select the document that corresponds to your device’s model number as it is indicated on the product label. Compliance is only assured if the Aruba approved accessories as listed in the ordering guide are used. https:// www.arubanetworks.com/assets/og/OG_610Series.pdf.
- Page 10 May 24, 2017, No. 355. The full text of the UA declaration of conformity is available at the following internet address: https://certificates.ext.hpe.com/public/certificates.html. Х’ЮЛЕТТ ПАКАРД ЕНТЕРПРАЗ, 6280 АМЕРИКА ЦЕНТР Д-Р, САН-ХОСЕ, КАЛІФОРНІЯ 95002, США Taiwan 第十二條 Aruba 610 Series Campus Access Points | Installation Guide...
- Page 11 2. Connect to only IEC 60950-1 or IEC 60601-1 3rd edition certified products and power sources. The end user is responsible for the resulting medical system complies with the requirements of IEC 60601-1 3rd edition. | Installation Guide Aruba 610 Series Campus Access Points...
-
Page 12: Contact Aruba
WW Corporate Headquarters 1701 E Mossy Oaks Rd Spring, TX 77389 United States of America. Warranty This hardware product is protected by an Aruba warranty. For more details visit www.hpe.- com/us/en/support.html Aruba 610 Series Campus Access Points | Installation Guide...
