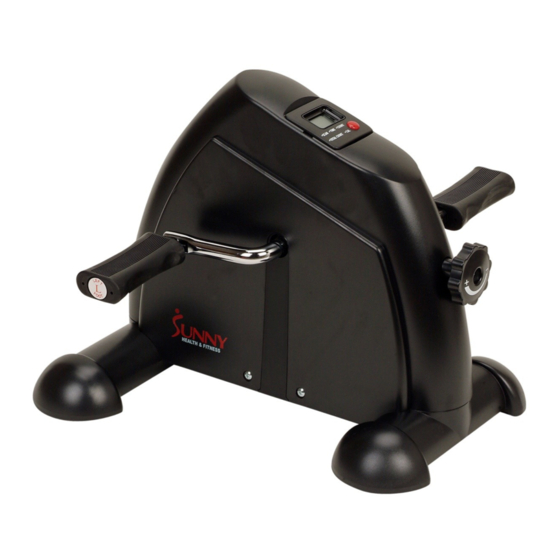

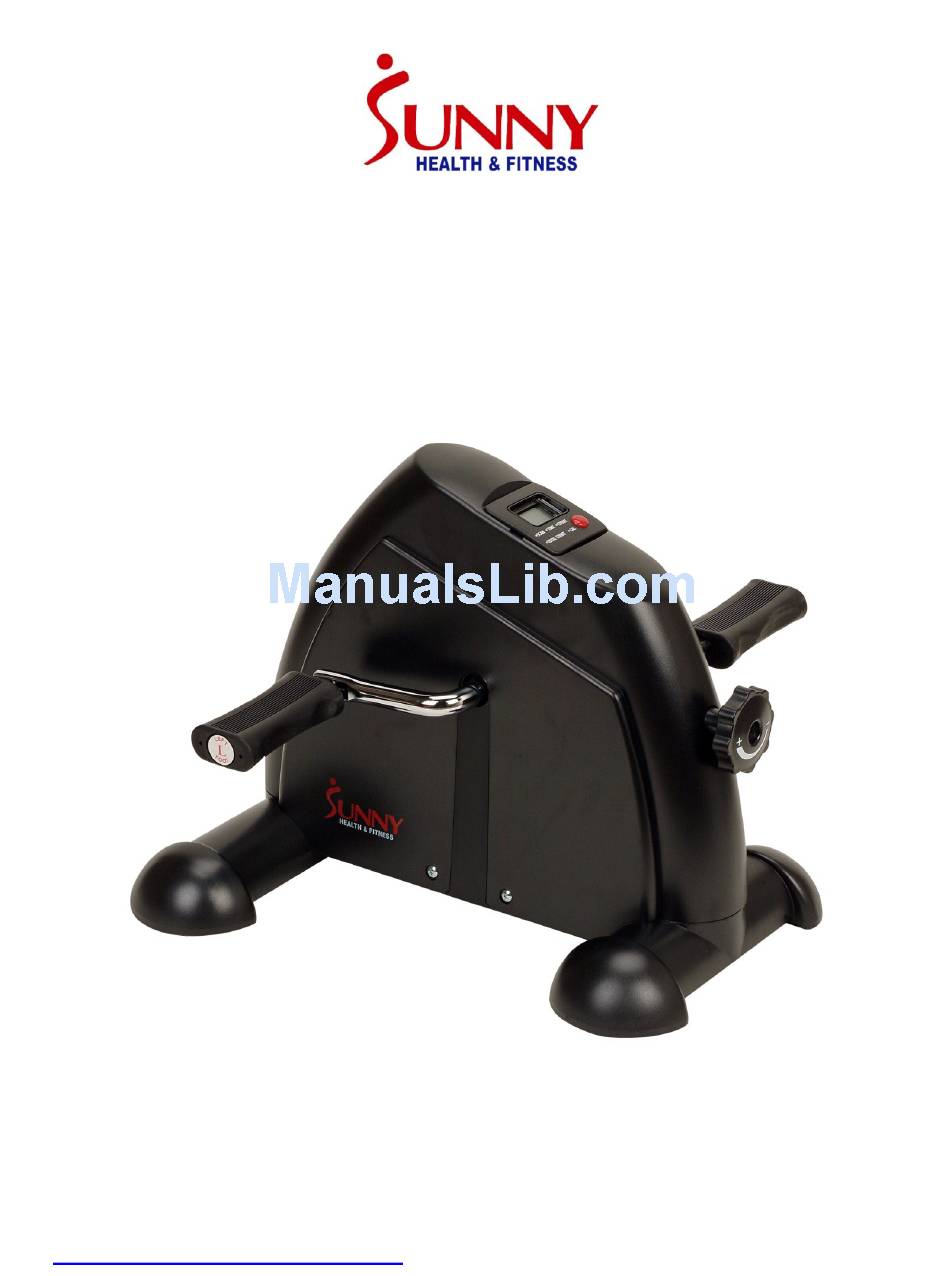

- Page 1 MINI CYCLE NO. 030 IMPORTANT: Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...
-
Page 2: Important Safety Instructions
12. You must take care of yourself when lifting and moving the equipment so as not to injure your back. Always use proper lifting technique and seek assistance if necessary. 13. This equipment is designed for indoor and home use only! It is not intended for commercial use! WARNING: Do not stand on the Mini Cycle! -
Page 3: Exploded Drawing
EXPLODED DRAWING PARTS LIST DESCRIPTION Main Frame Front Stabilizer Rear stabilizer Right Pedal Left Pedal M6 Hex Bolt Washer Computer Base Reinforcement Tension Knob Knob Screw Crank Arm... -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP: 1 Attach the Front Stabilizer (No. 2) to the Main Frame (No. 1) using 2 Hex Bolts (No. 6) and 2 Washers (No. 7), tighten and secure with wrench. STEP: 2 Attach the Rear Stabilizer (No. 3) to the Main Frame (No. - Page 5 FIGURE 1 NOTE: When removing the Computer (No. 8), the wire from connecting the computer to the Main Frame (No. 1) of the Mini Cycle may become disconnected. Before re-inserting the computer back onto the Main Frame (No. 1), ensure that the wires are connected to each other as shown to the right of the page in (Fig 2.).
- Page 6 EXERCISE COMPUTER KEY FUNCTIONS: MODE: Press to select function; (Time, Count, Total Count, Calories and Scan). OPERATION PROCEDURES: 1. AUTO ON/OFF: If the wheel is put into motion, or the mode button is pressed the computer will become active, and shall remain active while either of these two things continue to be done, however without any signal for approximately 4 minutes, power (computer), will turn off automatically.
