Description:

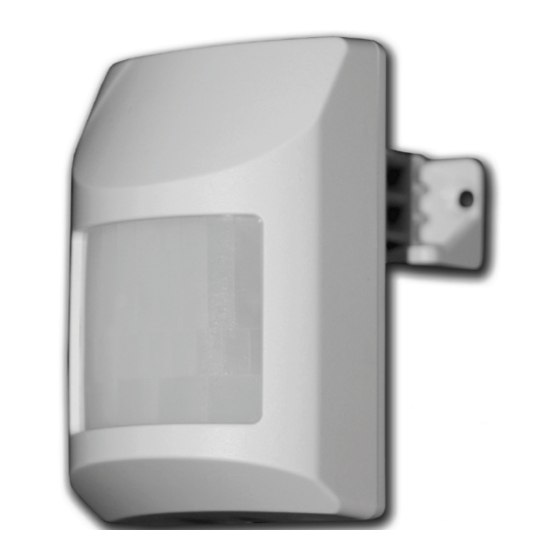

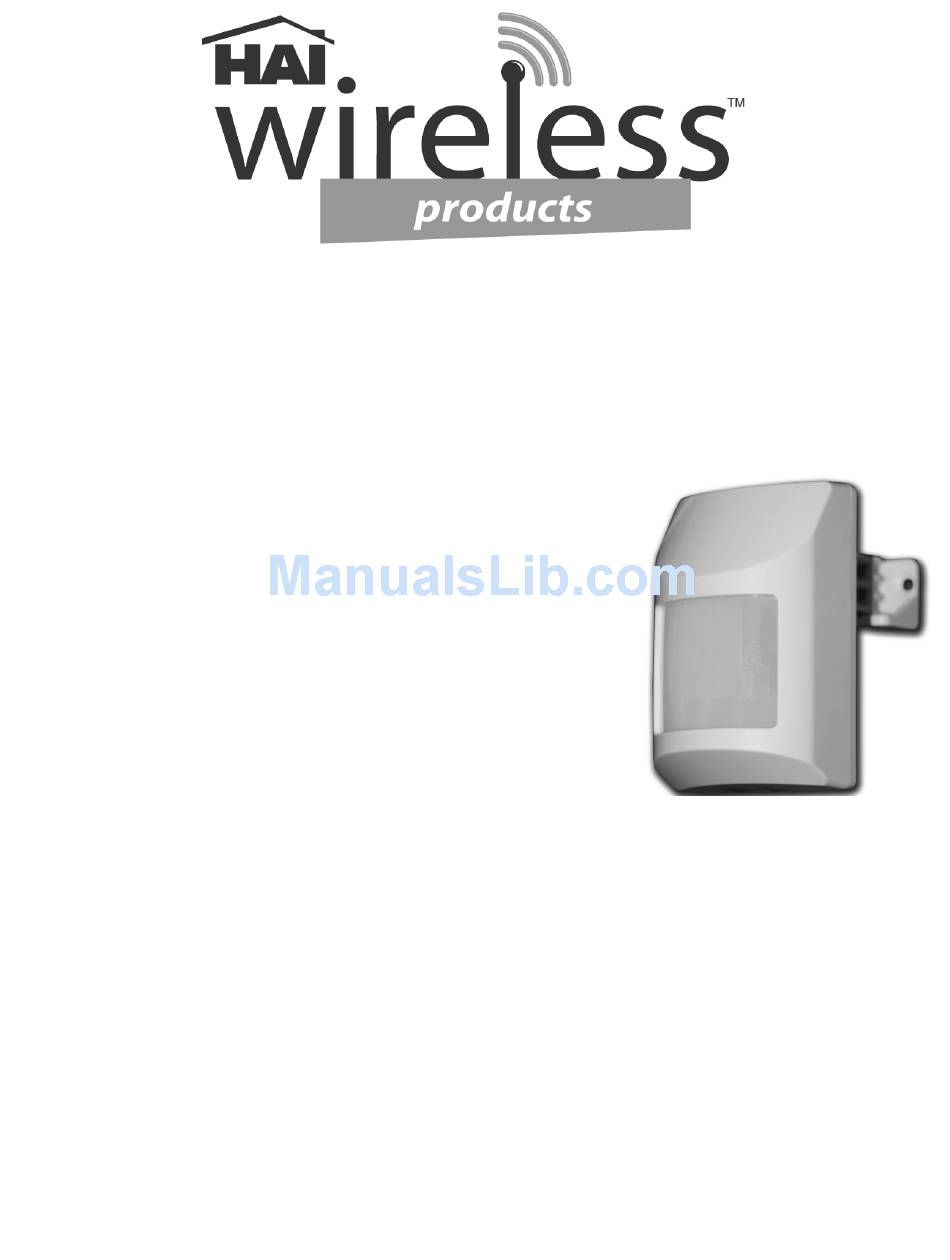

The 47A00-2 is a Wireless Quad Element PIR (Passive Infrared) Motion Detector that works with the HAI
45A00-1 Wireless Receiver. It has pet immune settings for both 33lbs. and 55lbs. The 47A00-2 also has a
sensitivity setting making it a perfect detector for both security and occupancy detection applications.
Features:
• 33lbs. and 55lbs. Pet Immune Settings • High White Light Immunity
• 30' x 50' Coverage • Quad Element PIR
• Wall or Ceiling Mount Included • Calibration Free Installation
• State-of-the-art Wireless PIR
• Powered by a 3 Volt Lithium Battery
• Battery Life up to 3 Years
• Low Battery Condition Signal Transmission
• Test Mode for PIR Coverage and RF Signal
Notes:
1. During normal operation, when the PIR trips (because it senses motion), it will not trip again for 3
minutes.
2. During normal operation, the LED will never illuminate. The LED only illuminates during test mode.
3. The test mode serves two purposes:
a) Walk Test: allows you to check the coverage of the PIR
b) RF Test: allows you to verify signal strength between the PIR and the wireless receiver
4. To enter the test mode, with the backplate installed on the PIR, place the supplied magnet over the arrow
on the left side of the PIR for 2 seconds and then remove it. The PIR will remain in test mode for 1
minute. While in test mode, each time you walk in the coverage path of the PIR, the LED will flash to
indicate that it senses motion and the PIR will send an RF transmission. Note: There is a 3 second delay
between each trip while in test mode.
5. You cannot manually exit enroll or test mode. The PIR will exit enroll and test mode automatically after
1 minute. Do not attempt to enroll another wireless device until the PIR exits enroll mode.
Document Number: 47I00-2, Rev B
Installation Instructions
47A00-2
Advertisement
Table of Contents
Related Manuals for Leviton 47A00-2
Summary of Contents for Leviton 47A00-2
- Page 1 The 47A00-2 is a Wireless Quad Element PIR (Passive Infrared) Motion Detector that works with the HAI 45A00-1 Wireless Receiver. It has pet immune settings for both 33lbs. and 55lbs. The 47A00-2 also has a sensitivity setting making it a perfect detector for both security and occupancy detection applications.
- Page 2 Mounting the Detector: The 47A00-2 can be mounted in a corner like any standard PIR or can be easily mounted to a wall or ceiling by using the supplied bracket. To mount, remove the screw at the bottom of the PIR and remove the backplate.
- Page 3 Wireless Receiver in to Setup mode and advance to an unused address location. Place the supplied magnet over the arrow on the left side of the PIR for 2 seconds and then remove it. The 47A00-2 will then send a series of transmissions to enroll the transmitter.
- Page 4 Battery Low: Whenever the battery reaches a preset low level, a “Battery Low” signal will be sent with the next message (i.e. Supervision, Alarm, etc.). Tamper: Whenever the 47A00-2 is removed from the backplate, a “Tamper” signal will be transmitted. Battery: A 3V Lithium Battery powers the unit.
