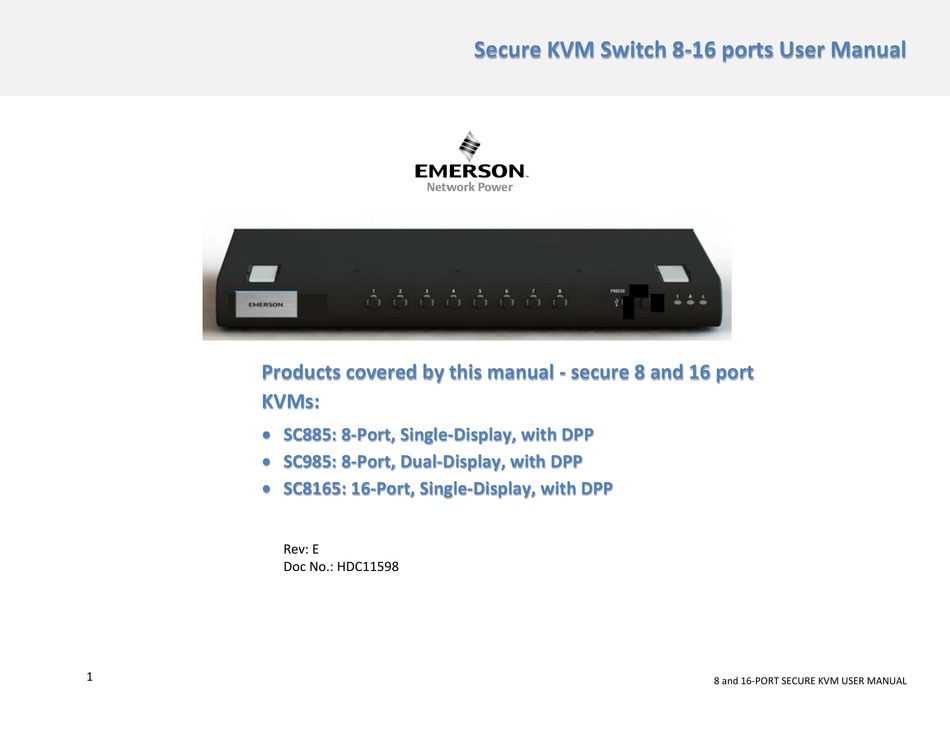

Section 1 - Introduction
Products covered by this manual - secure 8 and 16 port
KVMs:
SC885: 8-Port, Single-Display, with DPP
SC985: 8-Port, Dual-Display, with DPP
SC8165: 16-Port, Single-Display, with DPP
1
Rev: E
Doc No.: HDC11598
Secure KVM Switch 8-16 ports User Manual
8 and 16-PORT SECURE KVM USER MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Emerson SC885
Summary of Contents for Emerson SC885
- Page 1 Secure KVM Switch 8-16 ports User Manual Section 1 - Introduction Products covered by this manual - secure 8 and 16 port KVMs: SC885: 8-Port, Single-Display, with DPP SC985: 8-Port, Dual-Display, with DPP SC8165: 16-Port, Single-Display, with DPP Rev: E Doc No.: HDC11598...
-
Page 2: Table Of Contents
Table of Contents Introduction ..................3 Package Contents ................3 Revision ..................3 Overview .................... 4 Safety Precautions ................. 4 Safety Precautions (French) ............5 User Guidance & Precautions ............6 Main Features ................8 Tamper Evident Labels ..............10 Active Anti-Tampering System ............ -
Page 3: Introduction
Section 1 - Introduction Introduction Package Contents Thank you for purchasing this Emerson Secure product designed for Inside product packaging you will find the following: use in secure defense and intelligence installations. The product Emerson Secure Product provides the highest security safeguards and features that meet ... -
Page 4: Overview
Section 4 - Operation Overview • The product should be stored and used only in temperature and Safety Precautions humidity controlled environments as defined in the product’s Please read the following safety precautions carefully before using environmental specifications. the product: •... -
Page 5: Safety Precautions (French)
Section 4 - Operation ou provoque des court circuits de la prise du Safety Precautions (French) secteur. Veuillez lire attentivement les précautions de sécurité suivantes Un liquide a pénétré dans le boîtier de avant d’utiliser le produit: l’appareil. Avant nettoyage, débranchez l’appareil de L’appareil est exposé... -
Page 6: User Guidance & Precautions
Section 4 - Operation 3. The appropriate usage of peripherals (e.g. keyboard, mouse, User Guidance & Precautions display, authentication device) is described in detail in this Please read the following User Guidance & Precautions carefully User Manual's appropriate sections. Do not connect any before using the product: authentication device with an external power source to 1. - Page 7 Section 4 - Operation c. When connecting a non-qualified display, the video diagnostic LED will flash green and video will not work. d. When connecting a non-qualified USB device, DPP LED will flash green and USB device will be inoperable. 8.
-
Page 8: Main Features
Section 4 - Operation Product incorporates secure administrator access and log functions Main Features to provide auditable trail for all product security events, including Product is designed, manufactured and delivered in security- battery backup life for anti-tampering and log functions. Non- controlled environments. - Page 9 Section 4 - Operation Main Features (Cont.) Video Support Products support DVI-I displays as well as VGA and HDMI via compatible cables. Dual Display and Resolutions Supported Products support video resolutions of up to 4K-2K Ultra HD (3840 X 2160 pixels). ...
-
Page 10: Tamper Evident Labels
If for any reason one or more tamper-evident label is missing, appears disrupted, or looks different than the example shown here, please call Technical Support and avoid using that product. Emerson Tamper Evident Label Active Anti-Tampering System Product is equipped with always-on active anti-tampering system. If mechanical intrusion is detected by this system, the Product will be permanently disabled and all LEDs will blink continuously. -
Page 11: Equipment Requirements
USB mice. Cables Notes: It is highly recommended to use Emerson Cable Kits for product to a. Console USB keyboard and mouse ports are switchable, i.e. ensure optimal security and performance. you can connect keyboard to mouse port and vice versa. - Page 12 Section 4 - Operation User Display Products support DVI-I displays as well as VGA and HDMI via compatible cables. User Audio Devices Product is compatible with the following types of user audio devices: Stereo headphones; Amplified stereo speakers. ...
-
Page 13: Front Panel Features
Lock LED Lock LED Lock LED Note: the model described in above image is SC885 (8-port, single head). The other models are identical except for the following: SC985 is 8-port dual-head and therefore slightly higher. ... -
Page 14: Rear Panel Features
Note: the model described in above image is SC985 (8-port, dual head). The other models are identical except for the following: SC885 is 8-port single-head is therefore slightly lower. SC8165 is 16-port single-head and includes 16 ports. 8 and 16-PORT SECURE KVM USER MANUAL... -
Page 15: Product Specifications
Internal power 35W Computer Audio Input plug: 1/8" (3.5mm) stereo plug No. of Users Supported: Computer Video Input plug: No. of Computers Supported: 8 (SC885, SC985) 16 (SC8165) 1 x DVI-I video ports (SC885, SC8165) No. of Displays Supported: 1 (SC885, SC8165) -
Page 16: Before Installation
Section 4 - Operation Before Installation Where to locate the Product? Unpacking the Product The enclosure of the product is designed for desktop or under the Before opening the product packaging, inspect the packaging table configurations. An optional Mount Kit is available. condition to assure that product was not damaged during delivery. -
Page 17: Installation
Section 4 - Operation classical keyboard (HID) operation will be functional. It is Installation recommended to use standard USB keyboards. 4. Console USB mouse port supports Standard KVM Extender Connecting devices to product console composite device having a keyboard/mouse functions. Product requires connection of all devices and computers prior to powering it up. - Page 18 Section 4 - Operation When you power up your computers, the product emulates display, The USB device will be detected only if it is fully compliant with USB mouse and keyboard on each port and allows your computers to boot 1.1 or USB 2.0 standard and is included in the list of recognized USB normally.
-
Page 19: Typical System Installation
Section 4 - Operation Typical system installation 8 and 16-PORT SECURE KVM USER MANUAL... -
Page 20: Operation
Section 4 - Operation The user can select any other channel by pressing the appropriate Operation front panel push button. The mouse cursor will be positioned at the center of the selected Operating Product computer display. If computer is connected to multiple displays, the Self-Test Procedure: cursor will be positioned at the center of the primary display. - Page 21 Section 4 - Operation o When connecting a USB device that is not qualified Using "DPP Freeze" feature or rejected for security reasons to the product's DPP Move the "DPP Freeze" slider to lock DPP function to a specific port, the DPP LED will flash green and USB device will channel.
-
Page 22: Troubleshooting Guide
If problem persists please contact your system Web form: http://www.emersonnetworkpower.com/en- administrator or our technical support. US/Support/Technical-Support/KVM/Pages/default.aspx Problem: No power - No video output, none of the front panel LEDs AvocentSecurityFLR@emerson.com Email: are illuminating. Tel: +1-888-793-8763 Solutions: ... - Page 23 Section 5 - Troubleshooting Problem: Keyboard does not work (all channels) Try connecting mouse to a different USB port on computer. Make sure the mouse works when directly connected to Solutions: computer, i.e. the HID USB driver is installed on computer; ...
- Page 24 Check that cables are original cables supplied by Emerson. product. If DPP status LED is flashing green device is rejected or With everything connected, power-cycle the product to reset non-qualified for security reasons.
-
Page 25: Copyright And Legal Notice
Copyright and Legal Notice For important safety information, visit: www.emersonnetworkpower.com/ComplianceRegulatoryInfo Emerson, Emerson Network Power and the Emerson Network Power logo are trademarks or service marks of Emerson Electric Co. Avocent and the Avocent logo are trademarks or service marks of Avocent Corporation.
