Bartscher AB12/T-L Manual
  1. Manuals
  2. Brands
  3. Bartscher Manuals
  4. Kitchen Appliances
  5. AB12/T-L
  6. Manual

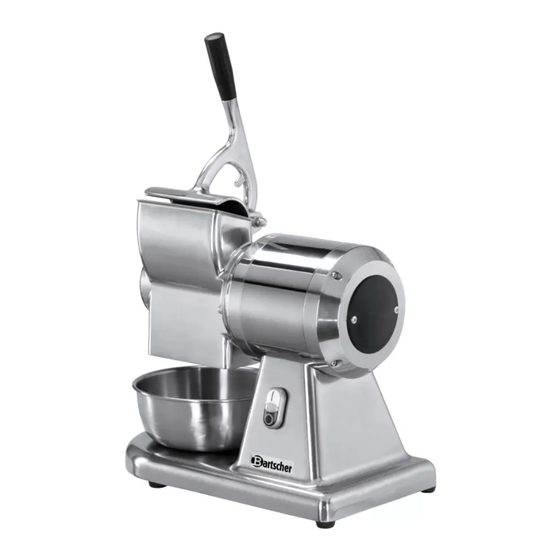

Bartscher AB12/T-L Manual

Meat mincer and grater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AB12/T-L
TR12/TS
Purpose of this manual................................
Machine description.....................................
Specifications............................................
Overall dimensions.....................................
Safety devices...........................................
Safety information.......................................
Packing and unpacking................................
Installation area..........................................
Electric connection......................................
Translation of the original instructions
TR12/S
GR12/S
AB22/AE
A370.212
MEAT MINCER AND GRATER
CONTENTS
4
4
5
6
6
7
7
8
8
8
TR12/C
TR22/C
Control descriptions.....................................
Using the grater..........................................
Using the mincer.........................................
Dismantling the mincing set...........................
Recommendations for use............................
End-day cleaning.........................................
Long periods of inactivity...............................
Foreword...................................................
Troubles, causes and remedies......................
Disposal and recycling.................................
ANNEXES
Unger mincing set assembly diagram
Spare parts catalogue
Electrical wiring diagram
AB12/AT
TR22/TE
370.223
A370.350
9
9
10
10
10
11
11
12
12
12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AB12/T-L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bartscher AB12/T-L

Summary of Contents for Bartscher AB12/T-L

  • Page 1: Table Of Contents

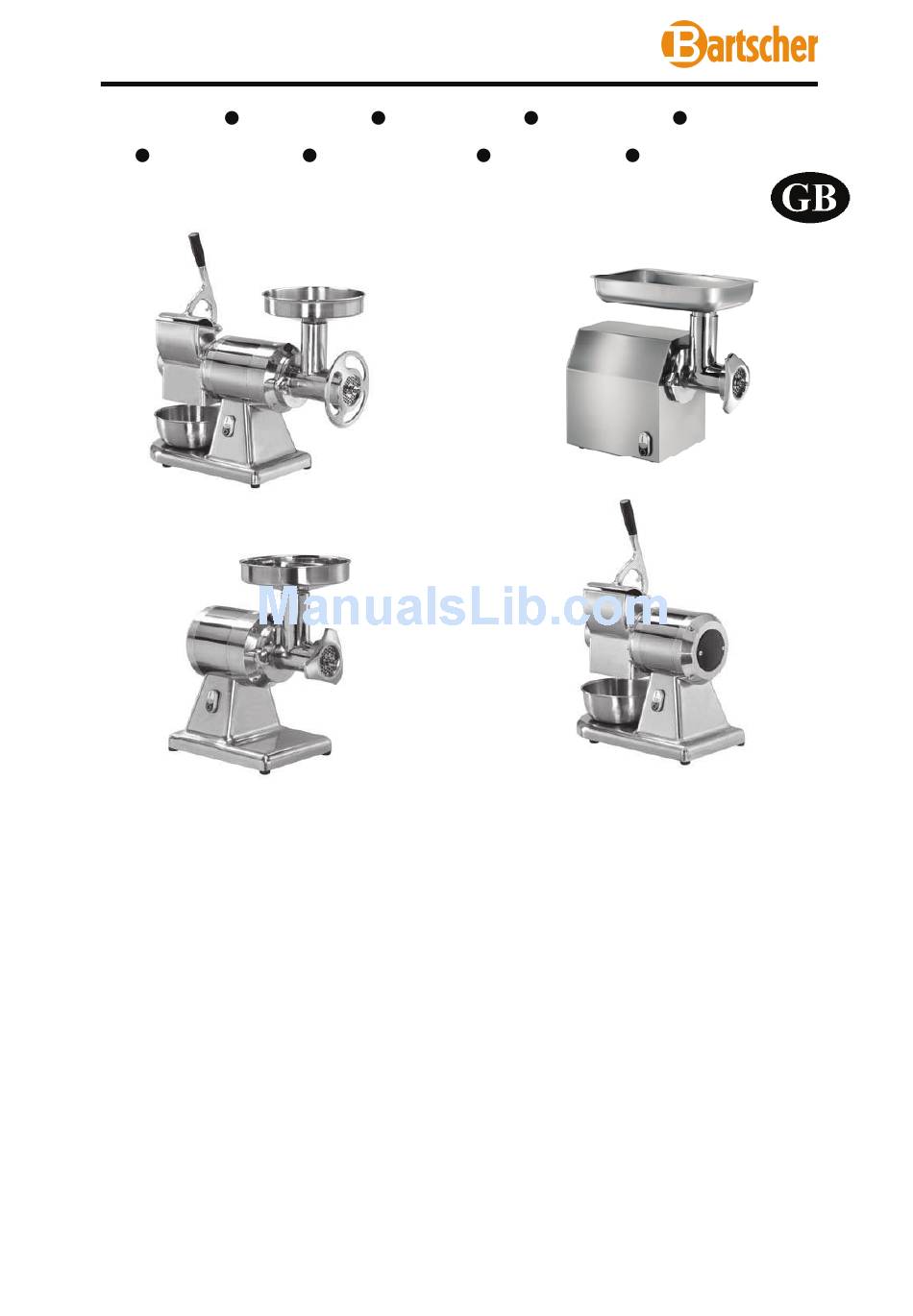

    AB12/T-L TR12/S GR12/S TR12/C AB12/AT TR12/TS AB22/AE TR22/C TR22/TE 370.223 A370.212 A370.350 MEAT MINCER AND GRATER CONTENTS 1 GENERAL INFORMATION 3 OPERATION AND CLEANING Purpose of this manual………………….………. Control descriptions………………………………. Manufacturer and machine Identification……..Using the grater……………………………….….. Machine description...………………….………... Using the mincer…..………………………………...

  • Page 2: General Information

    GENERAL INFORMATION Purpose of this manual This manual has been written by the Manufacturer to make an integral part of the machine standard equipment. During the design and construction phases, special care has been devoted to any aspects which might endanger the safety and health of the people interacting with the machine. In addition to the applicable safety legislation, all “good construction practice”...

  • Page 3: Machine Description

    The range is composed of 1 model: GR12/S (mod.12 basic version with stainless steel roller) The machine has an easy-to-clean aluminium and stainless steel structure. The machine’s safety devices conform to European Directives. MOD.AB12/T-L-12/AT-22/AE MOD.TR12/TS-12/S-12/C- MOD.GR12/S 22/TE-22/C Grater lever...

  • Page 4: Specifications

    GENERAL INFORMATION Specifications Description Unit of measure AB12/T AB12/L AB12/AT AB22/AE 230V 50Hz Electric power input V Hz Ph 230/400V 50Hz Power kW (HP) 0.75 (1) 0.75 (1) 0.75 (1) 1.1 (1.5) Mincer output Grater output Net weight Packaged weight Noise <...

  • Page 5: Safety Devices

    GENERAL INFORMATION Safety devices Microswitch: stops machine when the grater lever is lifted. When Remote control switch: can be used the lever is lowered, restart the to restart the machine when the machine by pressing the I button. electricity supply switched accidentally.

  • Page 6: Installation

    INSTALLATION Packing and unpacking The machine will come packaged in a carton with foamed polyester inserts to guarantee perfect safety during transport. Handle the carton in compliance with the instructions. Open the carton and make sure that all components are intact.

  • Page 7: Operation And Cleaning

    – TR12/C – TR22/TE – TR22/C only) Screw down the knobs to block or screw off to unblock the mincer body. 5) Grater lever (mod.AB12/T-L-AT – AB22/AE – GR12/S only) Press the lever down to grate the product to be processed.

  • Page 8: Using The Mincer

    CLEANING Using the mincer In combined grater-mincer versions, lower the grater lever. Tighten the filler knob in the versions mod.AB12/T-L - TR12/S. Tighten the mincer body-blocking knobs in versions mod.AB12/AT – AB22/AE – TR12/TS – TR12/C – TR22/TE – TR22/C.

  • Page 9: End-Day Cleaning

    OPERATION AND CLEANING End-of-day cleaning At the end of the working day remove the plug from the power socket. Clean thoroughly using neutral products. Wash the outer part of the machine using a damp sponge. Do not use steel wool or abrasive pads. Dismantle the mincer set and wash using suitable detergents in hot water or in the dishwasher.

  • Page 10: Troubleshooting Recycling

    TROUBLESHOOTING RECYCLING Foreword In the event of breakdowns or malfunctioning, turn off the main wall switch and contact your local Dealer’s After-sales service. Do not disassemble any internal machine parts. The Manufacturer declines all responsability for any tampering ! Troubles, causes and remedies Trouble Cause Remedy...

This manual is also suitable for:

Tr12/sGr12/sTr12/cAb12/atTr12/tsAb22/ae ... Show all

Table of Contents
