18 Use cases

18.3.3 Reducing noise by frame averaging

18.3.3.1 What is frame average?
As the name suggests, the functionality averages the gray values of each pixel using the
information of subsequent frames. This can be used to
reduce the noise in an image and
•
compensate motion in an image.
•
MATRIX VISION implemented one version of the frame averaging:
"mvNTo1".
•
This mode is a FPGA function which will not need any CPU of the host system. However, this mode
is only available for the following cameras:
mvBlueFOX3-1xxx family,
•
mvBlueFOX3-2024G/C and
•
mvBlueFOX3-2032G/C.
•

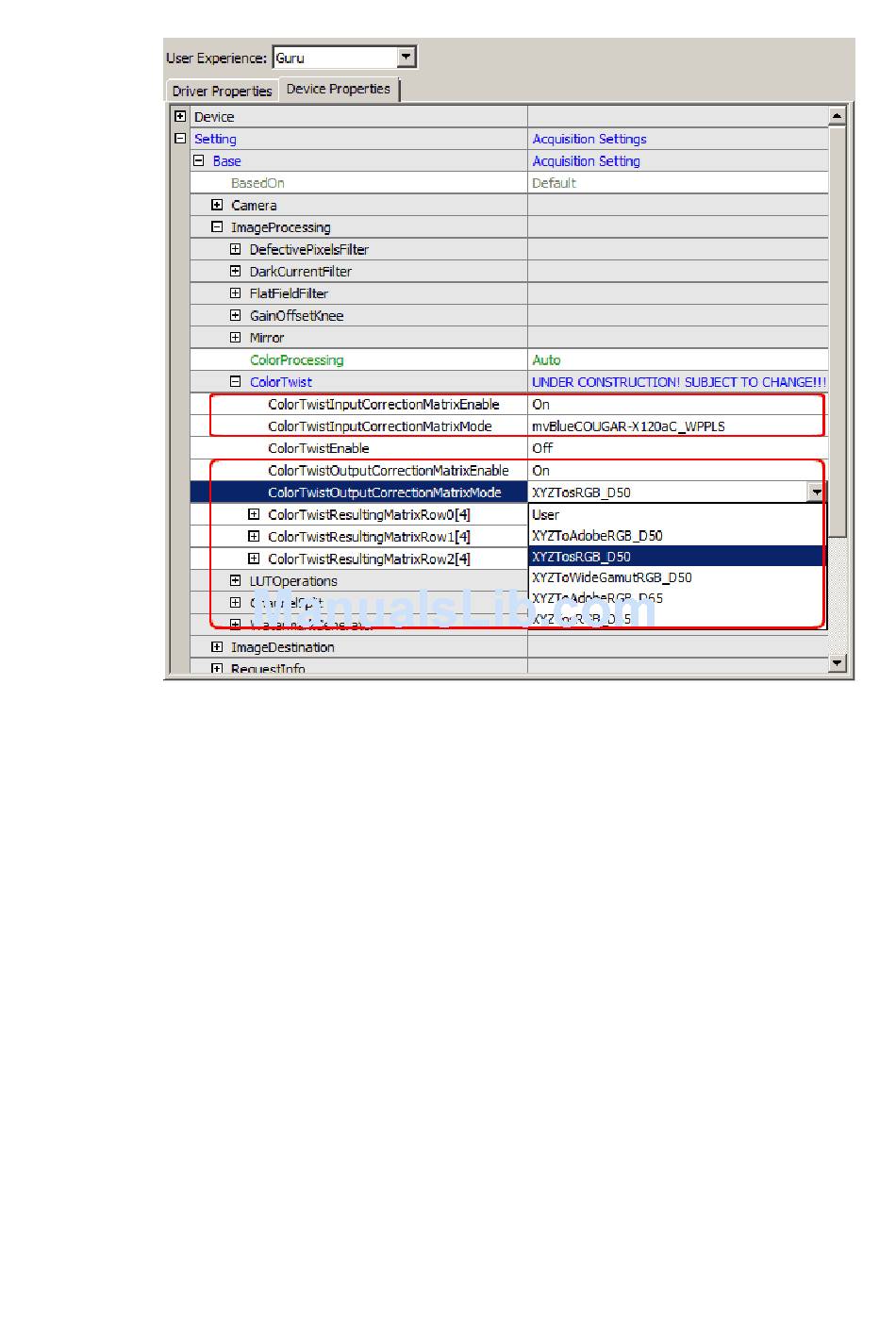

Figure 23: Input and output color correction matrix
