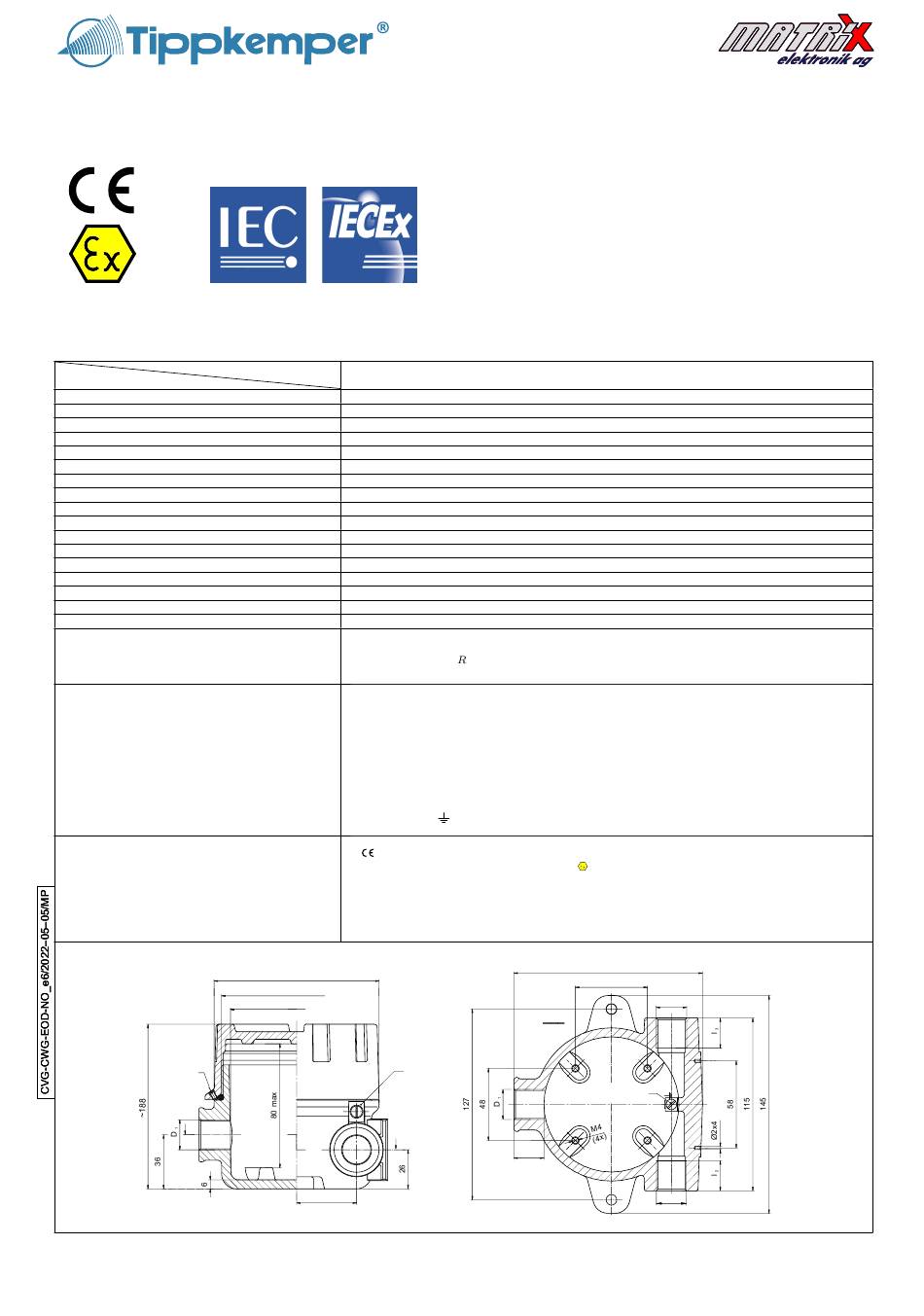

Matrix Tippkemper CVG-CWG-EOD-NO Operating Manual

IECEx SEV 21.0013X
1258
Ex db IIC T4 Gb
II 2G
II 2D Ex tb IIIC T135°C Db
Technical Data
Gas Ex protection designation
Dust Ex protection designation
For use in Ex Zones
Camera Type
Image sensor
Resolution
Power supply type
Maximum power dissipation
Melting Fuse
Network Interface
Configuration and control interface
Housing
Enclosure rating
Weight
Ambient working temperature range, T
Storage temperature range
Relative humidity
Connection cable
Wiring and Connection
Ex related markings
LOCKING
SCREW
A
ISO 9001:2015 / ATEX
Operating manual: CVG-CWG-EOD-NO
Cognex Camera for Explosive Atmospheres
Type
amb
Ethernet Cable
Power Cable
Ethernet Cable
1) yellow:
2) green:
3) black:
4) orange:
Power Cable
1) 24V
2) 0V
Connect shield
1258
Ex designation according to
ATEX certification number:
IECEx certification number:
T
amb
Date of construction:
Electrical data according to the table "Technical data"
Dimensions in mm
Ø110
M100X2 6H/6g
Ø90 Ø90
EARTH
TERMINAL
A
40
• GigE Vision & GenICam
• Global Shutter
• Trigger over Ethernet (ToE) Action Commands
• IEEE 1588 Precision Time Protocol (PTP)
CVG-CWG-EOD-NO
II 2G Ex db IIC T4 Gb
II 2D Ex tb IIIC T135°C Db
Zones 1, 2, 21, 22
CAM-CIC-5000-24-G
Sony IMX264, 2/3", 3.45μm×3.45μm
2464 (H) × 2056 (V)
12V to 24V±10% AUX or 802.3at Type 1 PoE
2.3 W at 12 VDC; 2.4 W PoE
250mA / time-lag
IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)
GigE Vision & GenICam
Die-cast aluminum housing
IP65
3.345kg
+5°C up to +38°C
+5°C up to +45°C
15% to 90%
Length: 10m, Cat.5e industrial Ethernet cable type LEONI MegaLine D1-20 S/U su-
perflex 4P 11Y, drag chain suitable (≈5 million bending cycles with bending radius
≥ 20mm), chemical resistant
min
Length: 10m shielded 2 pol TPU cable
DA+ 5) grey: DB-
DA- 6) red: DC-
DB+ 7) blue: DD+
DC+ 8) brown: DD-
to protection earth
Manufacturer with address
2014/34/EU II 2G Ex db IIC T4 Gb, II 2D Ex tb IIIC T135°C Db
SEV 21 ATEX 0540 X
IECEx SEV 21.0013X
+5°C up to +38°C
Numeral 5 to 8 of the serial number (year/calendar week)
125.5
A - A
PROTECTION
SCREW
*
l
1
* - other dimensions possible
*
48
D
3
D
2
