Planet IAP-2000PE Manual

Industrial 802.11n wireless poe access point
Hide thumbs Also See for IAP-2000PE:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Industrial 802.11n
Wireless PoE Access Point
IAP-2000PE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IAP-2000PE and is the answer not in the manual?

Questions and answers

Related Manuals for Planet IAP-2000PE

Summary of Contents for Planet IAP-2000PE

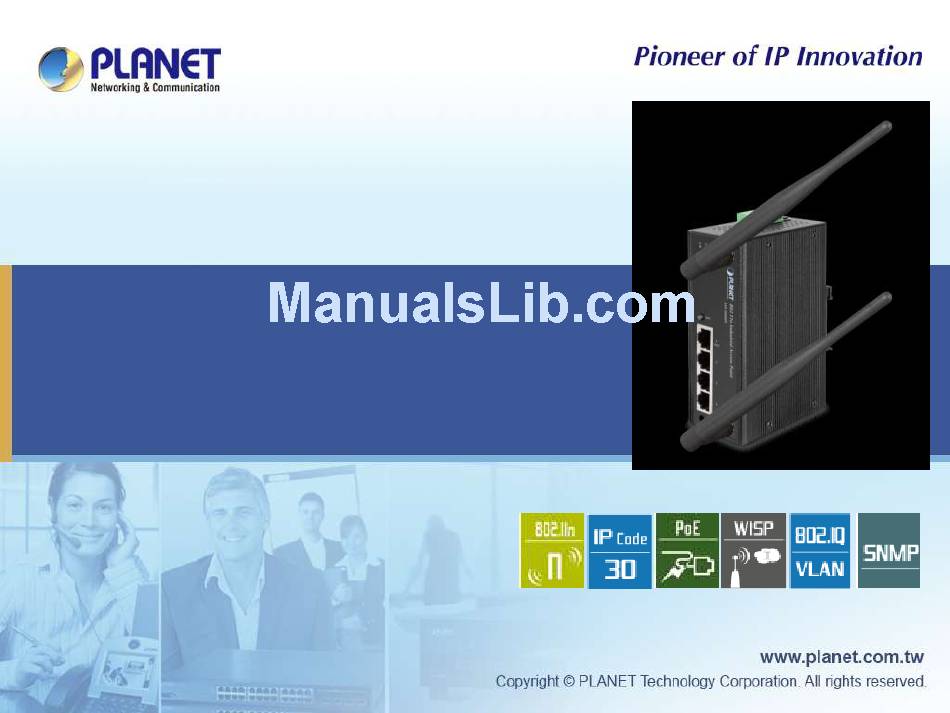

  • Page 1 Industrial 802.11n Wireless PoE Access Point IAP-2000PE...
  • Page 2 Presentation Outline Product Position  Product Overview  Product Features  Application  Management – Web UI  Comparison – External  Appendix ...

  • Page 3: Product Position

    Product Position Product Categories of IAP-2000PE  Wireless Industrial Wireless Industrial Ethernet...
  • Page 4 Product Position New Category of PLANET Product Line ...
  • Page 5 Product Position Compare with PLANET Indoor Wireless Access Point /  Range Extender Product Line Industrial Grade 300Mbps WNAP-1120PE IAP-2000PE WNAP-C3220 WNAP-3000PE 150Mbps WNAP-1110 10/100TX LAN 10/100/1000T LAN 5 / 8...
  • Page 6 Product Position Industrial Industrial Wireless Access Point ?  Model IAP-2000PE WNAP-1120PE Wireless Interface Wireless Spec. 802.11b/g/n, 2T2R Max. Speed 300Mbps 3dBi Antenna 5dBi Hardware Specification 10/100TX LAN Dual 12~48V DC 5V DC Input Power 24V AC, PoE Installation DIN-Rail / Wall Mountable Desktop Operating Temp.
  • Page 7 Product Position Building Application Environments of Industrial Products  Manufactory Heavy Industry Transportation...

  • Page 8: Product Overview

    Product Overview Protection Wireless Rugged Rugged 5 dBi 5 dBi High Gain High Gain IP30 IP30 Aluminum Aluminum Antenna x 2 Antenna x 2 metal housing metal housing Installation 4 x 10/100TX 4 x 10/100TX DIN- - Rail Rail RJ- - 45 LAN 45 LAN...
  • Page 9 Product Overview Front Panel of IAP-2000PE   6-Pin Terminal Block • Terminal Block Terminal Block Redundant Power Input • 12~48V DC 24V AC  2 x antenna connectors • type Connectors Connectors • Detachable WPS Button WPS Button ...
  • Page 10 Product Overview Three View Drawing ...

  • Page 11: Key Features

    Key Features Industrial Industrial IPv4/IPv6 IPv4/IPv6 IP30 IP30 Management Management Protection Protection 802.11b/g/n 802.11b/g/n 300Mbps 300Mbps 12~48V DC 12~48V DC Multiple Multiple 24V AC 24V AC Operation Operation Mode Mode...

  • Page 12: Product Features

    Product Features Industrial Compliant Wireless LAN   Compliant with IEEE 802.11n wireless technology  Data rate up to 300Mbps  Backward compatible with 802.11b/g standard  2T2R MIMO Antenna solution  Equipped with 2 x 5dBi Omni-directional antenna  Reserve Connector allows for stronger antenna upgrades 12 / 25...

  • Page 13: Hardware Design

    Product Features Hardware Design   Aluminum case protection IP30  -10 ~ 60 Degree C wide range of operating temperature  4 x 10/100Base-TX Ports with 1-port PoE (PD, Powered Device)  802.3af Power over Ethernet PD compatible design ...
  • Page 14 Product Features Industrial Conformance   AC, redundant power 12~48V DC • Polarity reverse protect function • Connective removable terminal block for master and slave power  Relay alarm for power failure  Stability testing with • IEC60068-2-32 (Free fall) •...
  • Page 15 Product Features Wide Range Power Input Solution  12~48V DC Input 24V AC Input Power Supply 802.3af PoE Switch...
  • Page 16 Product Features Flexible Deployment with PoE Feature   Compliant with IEEE 802.3af Power over Ethernet standard.  Broad compatibility with power sourcing equipment (PSE). 100m Ethernet Switch PoE Injector DATA DATA + Power Power 48V DC PoE Switch DATA + Power 48V DC Power...
  • Page 17 Product Features Wide-range redundant power design   PWR1 & PWR2 redundant power input  1A@24V Relay alarm for power down and port down...
  • Page 18 Product Features Real-Time Fault Relay Alarm  Power 1 Power FAIL - Master - Warning Power 2 - Backup - Warning Light or Speaker...
  • Page 19 Product Features Multiple Wireless Network Technologies for  Greater Access  Access Point  WDS Bridge / Repeater  Client  WISP IGMP Proxy and 802.1d Spanning Tree support  Firewall, DHCP Server, UPnP support on WISP  mode 19 / 25...
  • Page 20 Product Features Operation Mode   AP, Client, WISP, PtP, PtMP, Repeater (WDS+AP) WDS up to remote APs  20 / 25...

  • Page 21: Operation Mode

    Operation Mode Access Point   Acts as a central hub for wired / wireless LAN and connect to Internet AP Mode xDSL / Cable Modem 11n Wireless AP IAP-2000PE 21 / 25...
  • Page 22 Operation Mode Client   Acts as a wireless client connecting with the remote AP Wired IP Camera Wireless AP RJ-45 RJ-45 IAP-2000PE Wireless AP Wireless Client Mode Wireless IP Camera 22 / 25...

  • Page 23: (Point To Point) Mode

    Operation Mode Bridge – WDS PtP (Point to Point) Mode   Two APs in two remote locations connect to each other wirelessly WDS Bridge WDS Bridge PtP Mode PtP Mode IAP-2000PE IAP-2000PE 23 / 25...
  • Page 24 Bridge – WDS PtMP (Point to Multiple Point) Mode   Wirelessly connects multiple locations multiple locations together allowing them to share the same network resources. WDS Bridge PtMP Mode Wireless AP Intranet / Internet IAP-2000PE IAP-2000PE 24 / 8...
  • Page 25 Operation Mode Repeater - WDS + AP Mode   Bridge two APs and provides access for wireless clients at the same time IAP-2000PE WDS + AP WDS + AP Wireless AP Wireless AP Mode Mode 25 / 25 25 / 25...
  • Page 26 Product Features Wireless Security   SSID Broadcast & Hide  AP Isolation  MAC Address Filtering  Wireless Security • 802.1X • 64/128-bit WEP • WPA, WPA2 • WPA-PSK(TKIP), WPA2-PSK(AES)  Up to 4 multiple SSID  Max. Wireless Client up to STAs...
  • Page 27 Product Features WISP Mode - Router/Firewall/Management   WAN Connection Types: • Static IP • DHCP (Dynamic IP) • PPPoE • PPTP • L2TP  Port Filtering and SPI Firewall  Content URL Filtering  VPN Passthrough: PPTP, L2TP, IPSec ...
  • Page 28 SNMP-Based monitoring interface  Firmware Upgrade & Configuration Backup/Restore  System status monitoring including Associated Client List, System Log  PLANET Smart Discovery utility automatically finds PLANET devices on the network  IEEE 802.1Q VLAN support  Supports DDNS (Dynamic DNS)
  • Page 29 Product Features - Management Easy, Friendly Web Management Interface  Function Menu Active Panel...
  • Page 30 Product Features - Management IAP-2000PE co-work with 3rd party SNMP  management software System Statistics Status System Information Graphic Traffic loading...
  • Page 31 Product Features - Management PLANET Smart Discovery Lite   Polling / finding deployed wireless APs in the network...
  • Page 32 Application...

  • Page 33: Traffic Monitoring

    Application Traffic Monitoring  Wireless Wireless IP Camera IP Camera Traffic Monitoring Center IAP-2000PE...

  • Page 34: Management - Web Ui

    Management - Web UI Multiple Operation Mode...
  • Page 35 Management - Web UI IPv6 Management...
  • Page 36 Management - Web UI Wireless Security Mode...
  • Page 37 Management - Web UI VLAN Settings...
  • Page 38 Comparison - External RudggeCom RS900W PLANET IAP-2000PE Sunnix WAP-5002P Model Features Antenna 2 x 5dBi Detachable 1 x 2dBi 2 x 3dBi Wireless 802.11b/g/n 802.11b/g 802.11b/g Standard Interface 4 x 10/100Mbps LAN 2 x 10/100Mbps LAN 6 x 10/100Mbps LAN...
  • Page 39 System Integrator  IE Distributor  Manufactory  Transportation  Hospital / Bank Target Customers   Who buys Wireless Access points • Indoor: WNAP-1120PE(2T2R), WNAP-C3220(2T2R), WNAP-3000PE • Outdoor: WNAP-6305(1T1R), WNAP-6300(1T1R)  Who buys PLANET Industrial Ethernet Switch / Media Converter...

  • Page 40: Appendix - Accessories

    Appendix - Accessories 2.4GHz Antennas  ANT-GR21 ANT-SE18 ANT-FP18 ANT-FP9 Model Feature Uni-directional Uni-directional Omni-directional Omni-directional Antenna Type Grid Sector Flat panel Flat panel Gain (dBi) 21 dBi 18 dBi 18 dBi 9 dBi 60-120 Horz. adjustable Beamwidth degree Vert. Connector N-Type N-Type...
  • Page 41 Appendix - Accessories 2.4GHz Antennas  ANT-YG20 ANT-YG13 ANT-OM15 ANT-OM8 Model Feature Uni-directional, Uni-directional, Omni-directional, Omni-directional, General Antenna Type purpose Yagi Yagi General purpose Gain (dBi) Horz. Beamwidth degree Vert. Connector N-Type N-Type N-Type N-Type Mounting Type Mast Mount Mast Mount Mast Mount Mast Mount 41 / 25...

  • Page 42: Related Products

    Appendix Related Products   CB-STP-25 25M STP Cat5 Cable  ELA-100 Ethernet Lightning Arrest Box  WL-LTN Lightning Arrester ELA-100 WL-LTN Related DIN-Rail Power Supply:   PWR-40-24 40W, 24V DC Industrial DIN Rail Power Supply (-10 ~ 60 Degree C) ...
  • Page 43 Appendix Related PoE Injector / PoE Switch Products  Model Name Model Name Description Description IEEE 802.3af Power Over Ethernet Injector POE-152 (10/100/1000Mbps) FSD-804P 8-Port 10/100Mbps with 4-Port PoE Desktop Switch FGSD-1022P 8-Port 10/100Mbps Managed PoE Switch SGSW-24040P 24-Port Gigabit PoE Managed Stackable Switch / 220W 12-Port Gigabit IEEE 802.3af Power over Ethernet POE-1200G Injector Hub...
  • Page 44 Appendix Related Series Products (Coming Soon)  Model IAP-2000PE IAP-2001PE IAP-2000PS Wireless Interface Wireless Spec. 802.11b/g/n Max. Speed 300Mbps Antenna 2 x detachable, SMA type Gain 5dBi LAN Interface 10/100TX 100FX 802.3af PoE 1 x PD(Port-1) 1 x PD(Port-1) 4 x PSE...
