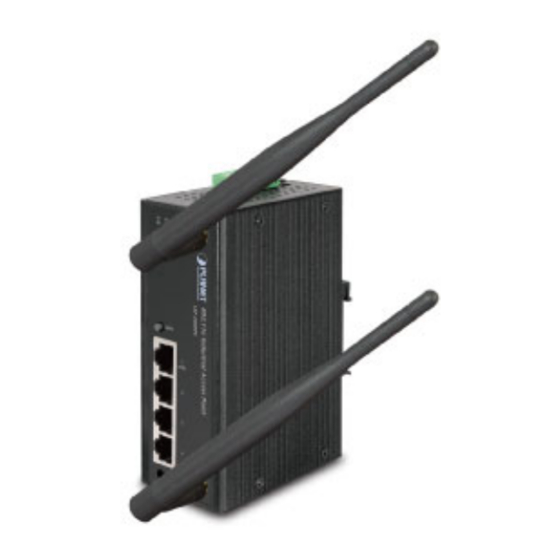

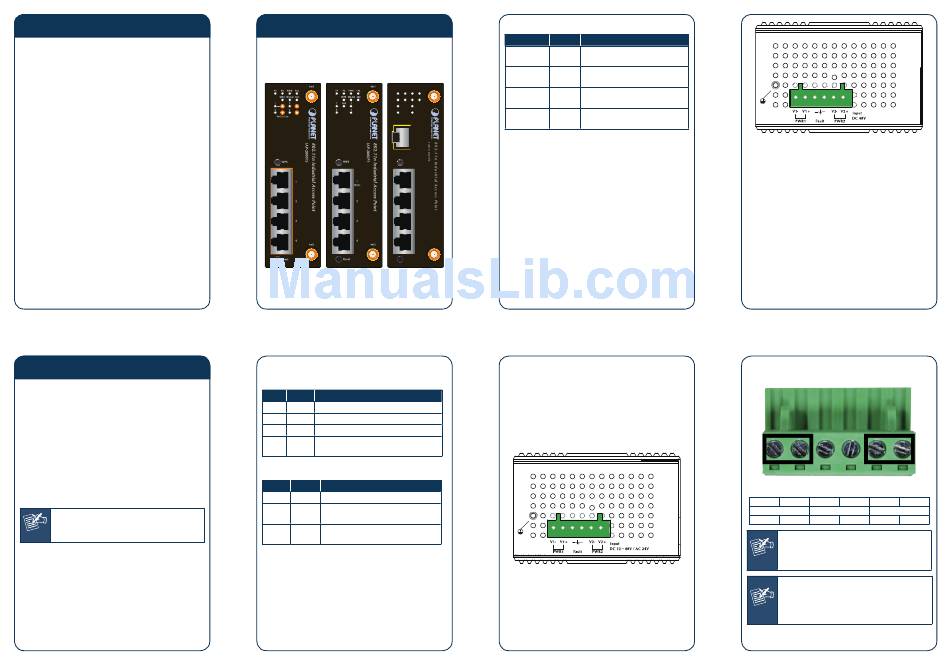

Planet IAP-2000PS Manual

1. Package Contents
Thank you for choosing PLANET Industrial Wireless
Access Point.
The PLANET Industrial Wireless Access Point comes with
one of the following models.
● IAP-2000PS: 2T2R 802.11b/g/n 4-Port 10/100Mbps
with 4-Port PoE (PSE) Industrial
Wireless Access Point (RJ-45, 100m)
● IAP-2000PE: 2T2R 802.11b/g/n 4-Port 10/100Mbps
with 1-Port PoE (PD) Industrial
Wireless Access Point (RJ-45, 100m)
● IAP-2001PE: 2T2R 802.11b/g/n 4-Port 10/100Mbps
with 1-Port PoE (PD) + 1-port 100FX
(SFP Slot) Industrial Wireless Access
Point
Open the box of the Industrial Wireless Access Point
and carefully unpack it. The box should contain the
following items:
 The IAP-200x series Industrial Wireless Access Point x 1
 User's Manual CD x 1
 Quick Installation Guide x 1
 DIN Rail Kit x 1
 Wall Mount Kit x 1
 5dBi Antenna x 2
If there is any item missing or damaged, please contact
your local reseller for replacement.
- 1 -
2. Requirements
 Workstations of subscribers running Windows 98/
ME, NT4.0, 2000/XP/Vista/7, MAC OS 9 or later,
Linux, UNIX or other platform compatible with TCP/IP
protocols.
 The Workstation installed with Ethernet NIC (Network
Card)
 Ethernet Port connection
 Network cables - Standard network (UTP) cables
with RJ-45 connectors.
 The Above PC is installed with WEB Browser and
JAVA runtime environment Plug-in.
It is recommended to use Internet Explore
7.0 or above to access IAP-200x Series.
Note
- 2 -
3. Hardware Installation
3.1 Front Panel
Figure 3-1 & 3-2 & 3-3 show the front panels of
Industrial Wireless Access Points.
Ant1
P1 P2 PWR FAL
FX WPS WLAN SEC
1 PoE 2
3 4
5
100Base-FX
WPS
1
(PoE)
2
3
4
Ant2
Reset
Figure 3-1 Figure 3-2 Figure 3-3
IAP-2000PS IAP-2000PE IAP-2001PE
- 3 -
3.2 LED Indicators
 System
LED Color Function
P1 Green It indicates the power 1 has power.
P2 Green It indicates the power 2 has power.
PWR Green It indicates the machine is power on.
It indicates either the power 1 or
FAL Green
power 2 has no power.
 Wireless LAN
LED Color Function
WPS Green It indicates WPS is enabled.
It indicates the wireless LAN is
WLAN Orange
enabled.
It indicates the wireless security
SEC Green
encryption is enabled.
- 4 -
 10/100Base-TX Ports / 100Base-FX Port
LED Color Function
It indicates which RJ-45 port is
1 ~ 4 Orange
link up.
It indicates the Fiber port is
FX Orange
link up.
It indicates the device is power
PoE Green
supplied by PoE.
It indicates which RJ-45 port is
PoE In-Use Green
providing 48V DV in-line power.
- 5 -
3.3 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel
of the Industrial Wireless Access Point is used for two
DC redundant powers input. Please follow the steps
below to insert the power wire.
1. Insert positive / negative DC power wires into the
contacts 1 and 2 for POWER 1, or 5 and 6 for
POWER 2.
V1 - V1 + V2 - V2 +
Figure 3-4 The Top Panel of IAP-2000PE / IAP-2001PE
- 6 -
V1 - V1 + V2 - V2 +
Figure 3-5 The Top Panel of IAP-2000PS
- 7 -
2. Tighten the wire-clamp screws for preventing the
wires from loosing.
Figure 3-6
1 2 3 4 5 6
Power 1 Fault Power 2
- + - +
The wire gauge for the terminal block should
be in the range between 12 ~ 24 AWG.
Note
The Power input voltage of IAP-2000PE and
IAP-2001PE is DC 12~48V / AC 24V.
The Power input voltage of IAP-2000PS is
Note
48V DC only.
