Whalen XLDEC54-NV Assembly Instructions Manual

3-n-1 tv console with drawer
Hide thumbs

Advertisement

Quick Links

Download this manual

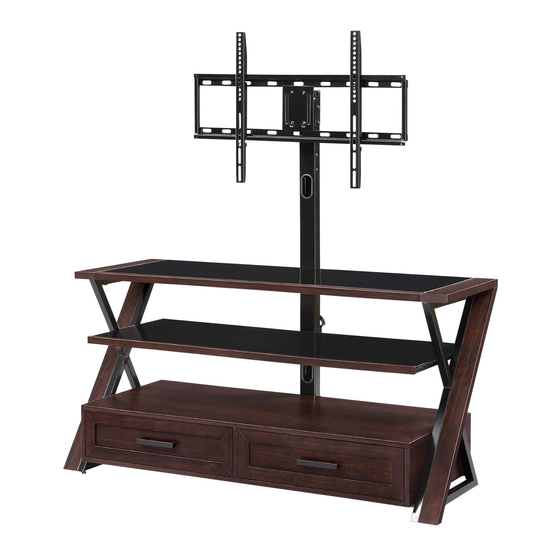

TM
3-N-1
TV Console with Drawer
Model # XLDEC54-NV
U.S. Patent 8,561,551
This item is designed to be a 3-in-1 configuration. Please choose the option that best suits your
needs. DO NOT discard any of the hardware or parts that you will not use on your chosen option.
This will allow you to use this TV Console in different configurations at a later date, if desired.
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to
the store where it was purchased. Please call our customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Mfg., Inc.
1-866-942-5362
www.whalenfurniture.com
Or e-mail your request to parts@whalenfurniture.com
LOT NUMBER:
DATE PURCHASED:
Page 1
/
/
Factory No. 33-10944

Advertisement

loading
Need help?

Need help?

Do you have a question about the XLDEC54-NV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Whalen XLDEC54-NV

Summary of Contents for Whalen XLDEC54-NV

  • Page 1 DATE PURCHASED: 3-N-1 TV Console with Drawer Model # XLDEC54-NV U.S. Patent 8,561,551 This item is designed to be a 3-in-1 configuration. Please choose the option that best suits your needs. DO NOT discard any of the hardware or parts that you will not use on your chosen option.
  • Page 2 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Mfg., Inc. CATALOG: 3-N-1 TV Console with Drawer (XLDEC54-NV) DATE OF MANUFACTURE: November 2013 MADE IN CHINA FITS UP TO MOST 60”...
  • Page 3 Model # XLDEC54-NV Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Top Shelf Frame (1) B- Middle Shelf Frame (1) C- Bottom Shelf Frame (1)
  • Page 4 Model # XLDEC54-NV Parts and Hardware List (2) 1/2” Bolt (3) 3/4” Bolt (4) 1-1/8” Bolt (5) 2-1/2” Bolt (4+1 extra) (20+1 extra) (10+1 extra) (1+1 extra) (6) 1-1/2” Bolt (7) Lock Washer (8) Flat Washer (9) Flange Nut (10+1 extra)
  • Page 5 Model # XLDEC54-NV Assembly Instructions 1-1/2” Bolt (5 used in this step) ⑥ NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier.
  • Page 6 Model # XLDEC54-NV Assembly Instructions 1-1/2” Bolt (5 used in this step) ⑥ 5. Repeat the same procedure to assemble the Right Legs. As shown above. 1-866-942-5362 Please call for replacement parts or assistance: Whalen Furniture Mfg., Inc. Page 6...
  • Page 7 Model # XLDEC54-NV Assembly Instructions Flat Washer 1-1/8” Bolt Lock Washer 3/4” Bolt (2 used in this step) (4 used in this step) (2 used in this step) (2 used in this step) ④ ⑦ ⑧ ③ 6. Locate the Spine Assembly (D) and set the back face down on a scratch-free surface, as shown above.
  • Page 8 Model # XLDEC54-NV Assembly Instructions Flat Washer 3/4” Bolt Lock Washer 1-1/8” Bolt (4 used in this step) (8 used in this step) (4 used in this step) (2 used in this step) ③ ④ ⑦ ⑧ 9. Align and attach the assembled Metal Legs (E and F) to the Shelf Frames (A, B and C). As shown above.
  • Page 9 Model # XLDEC54-NV Assembly Instructions 1-1/8” Bolt Flat Washer Lock Washer (4 used in this step) (4 used in this step) (4 used in this step) ④ ⑧ ⑦ 10. Insert the Drawer Box (K) between the Middle Shelf Frame (B) and the Bottom Shelf Frame (C) with the drawer front facing up.
  • Page 10 Model # XLDEC54-NV Assembly Instructions 12. Stand the unit upright. 13. With the drawers open, remove the bolts in Handles (14), and then use the bolts to attach the Handles to the outside of the utility drawers. NOTE: If you need to remove the utility drawer, please pull the drawer all the way out, then simultaneously push the plastic release lever of the ball bearing slide up on one side and down on the other side, and then pull it completely out.
  • Page 11 Model # XLDEC54-NV Assembly Instructions for Table-top Console 16. At the back side of the Spine Assembly (D), unscrew the four bolts and the washers to remove the Upper Spine. So that you can use the table top console configuration.
  • Page 12 Model # XLDEC54-NV Assembly Instructions for Table-top Console Lock Washer 2-1/2” Bolt ⑤ (1 used in this step) (1 used in this step) ⑦ Flat Washer Flange Nut Spine End Cap (1 used in this step) (1 used in this step) (1 used in this step) ⑨...
  • Page 13 Model # XLDEC54-NV Assembly Instructions for Table-top Console 3/4” Bolt (4 used in this step) ③ 19. Attach 2 Cable Wheels (Q) to the backside of Lower Spine (D) with the 3/4” Bolts (3). Tighten the bolts with the enclosed Allen Wrench.
  • Page 14 Model # XLDEC54-NV Assembly Instructions for Table-top Console Suction Cup (16 used in this step) ① 20. Put the Suction Cups (1) firmly into the top holes and inside metal tabs on the Shelf Frames (A and B). As shown.
  • Page 15 Model # XLDEC54-NV Assembly Instructions for Table-top Console Tools required: Allen Wrench (provided), Phillips screwdriver, Mallet, Power Drill, and 3/8” Drill Bit. 22. Position the assembled console at the desired location against a wall. Now, follow the instructions printed on the plastic bag containing the Tipping Restraint Hardware to attach the tip-over restraint to the Spine and the wall.
  • Page 16 Model # XLDEC54-NV Assembly Instructions for Floating Swivel Mount Lock Washer Flat Washer 3/4” Bolt (6 used in this step) (6 used in this step) (6 used in this step) ⑦ ③ ⑧ 24. Fast the Swiveling Bracket (N) to the top of the Upper Spine (D) with six 3/4” Bolts (3) and Washers (7 and 8).
  • Page 17 Model # XLDEC54-NV Assembly Instructions for Floating Swivel Mount 1/2” Bolt Lock Washer Flat Washer (4 used in this step) (4 used in this step) (4 used in this step) ⑦ ⑧ ② 25. Hold and attach the flat side of the Mounting Frame (O) onto the Swiveling Bracket (N) with four 1/2”...
  • Page 18 Model # XLDEC54-NV Mounting the Monitor Brackets to a Television with a Flat Back NOTE: For televisions with a curved or recessed back, proceed directly to next page. 26. Determine the correct diameter of the bolt the TV requires by hand threading them into the threaded inserts on the back of the TV.
  • Page 19 Model # XLDEC54-NV Mounting the Monitor Brackets to a Television with a Curved/Recess Back 28. Determine the correct diameter of the bolt the TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If you are unable to find the correct bolt consult a local hardware store.
  • Page 20 Model # XLDEC54-NV Assembly Instructions for Floating Swivel Mount MAKE SURE ALL BOLTS ARE TIGHT AND THE SPINE IS AT A 90 DEGREE ANGLE AND VERIFY THE MOUNTING FRAME IS LEVEL, USING A QUALITY LEVEL, PRIOR TO INSTALLATION OF TV.
  • Page 21 Model # XLDEC54-NV Assembly Instructions for Floating Swivel Mount Tools required: Allen Wrench (provided), Phillips screwdriver, Mallet, Power Drill, and 3/8” Drill Bit. 32. Repeat steps 19 through 21 to attach the Cable Wheels (Q) and install the Top Glass (L) and Glass Shelf (M) in place.
  • Page 22 Model # XLDEC54-NV The following steps are only for those who wish to mount their TV directly to the wall. If you have already mounted your TV to the Swinging Floater or plan to display your TV on the top surface of the Console, disregard the following steps.
  • Page 23 Model # XLDEC54-NV Assembly Instruction for installing the Mounting Frame onto BRICK, SOLID CONCRETE OR CONCRETE BLOCK WALLS 2.50" (63 mm) Maximum weight 135 lb. (61.2 kg) Concrete Anchors should only be used for masonry mounting. NEVER use the wall anchors to mount the unit to drywall.
  • Page 24 Model # XLDEC54-NV Assembly Instructions 41. Attach the Monitor Brackets (P) to the back of the television following steps 26 & 27, or 28 & 29, depending on the type of TV that you own. 42. Once the Monitor Brackets (P) are attached onto the back of television, ask for assistance to lift the television up to attach the Monitor Brackets onto the Mounting Frame (O).

  • Page 25: Care And Maintenance

    Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from the date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
