ELECTRICAL FEEDER CABLE
CONNECTION
To connect the supply cable:
- Remove the screws securing the
cover "A" on the rear of the cooker
(fig. 9.1).
- Feed the supply cable through the
cable clamp "D". The supply cable
must be of a suitable size for the cur-
rent requirements of the appliance;
see the section "Feeder cable section"
(fig. 9.1).
- Connect the wires to the terminal
block "B" as shown in the diagram in
figure 9.2; or connect the phase wires
to the terminal block "B" and the earth
wire to the terminal PE as shown in
figure 9.1.
- Take up any slack in the cable and
secure with the cable clamp "D".
- Replace the cover "A".
N.B. The earth conductor must be left
about 3 cm longer than the others.
A

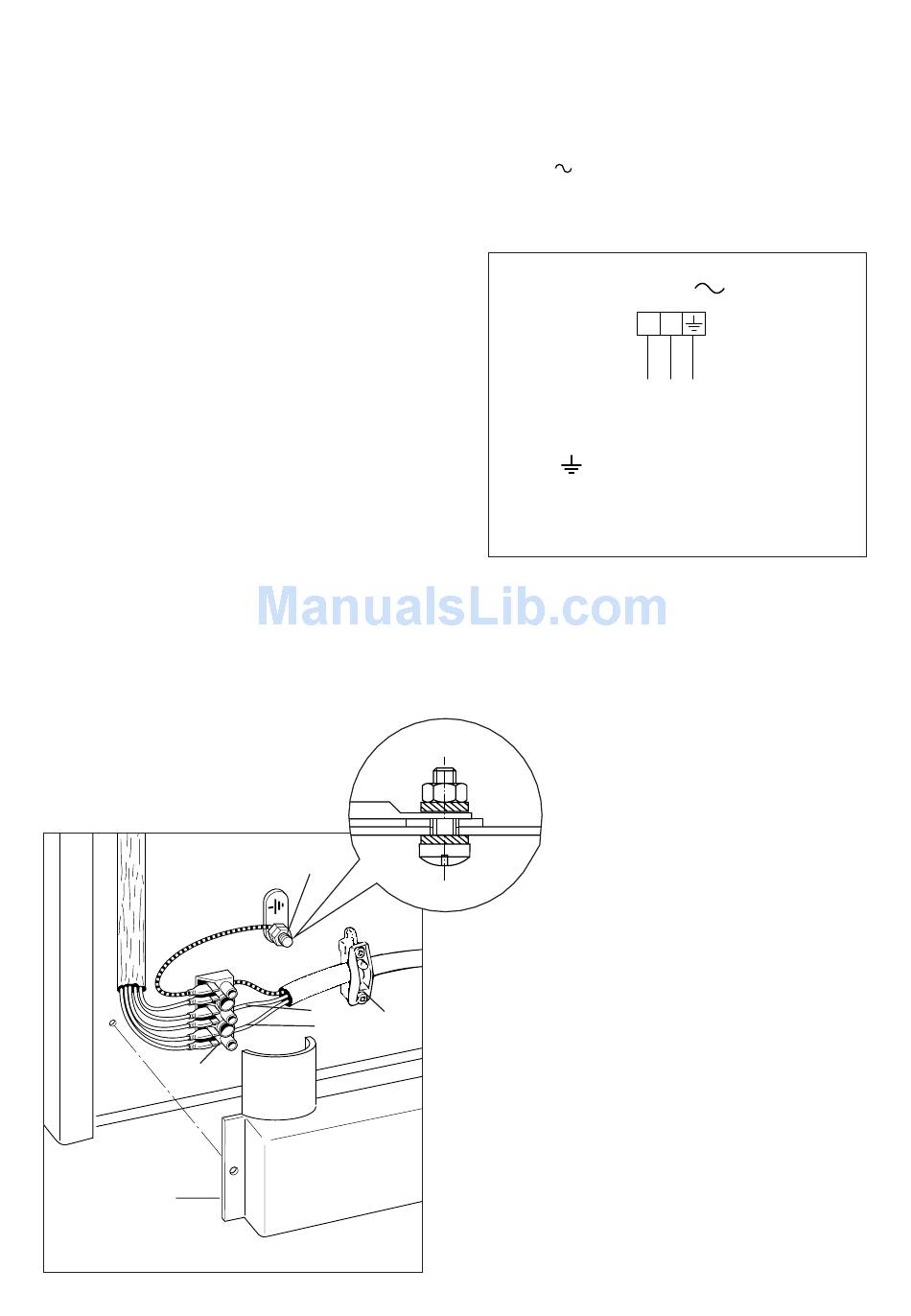

Fig. 9.1
30
PE
N
L
B
FEEDER CABLE SECTION
TYPE H05RR-F
230 V
PE
N
L
D
2
3 x 1,5 mm
230 V
L N PE
1
(L )
2
Earth
Neutral
Live
Fig. 9.2
