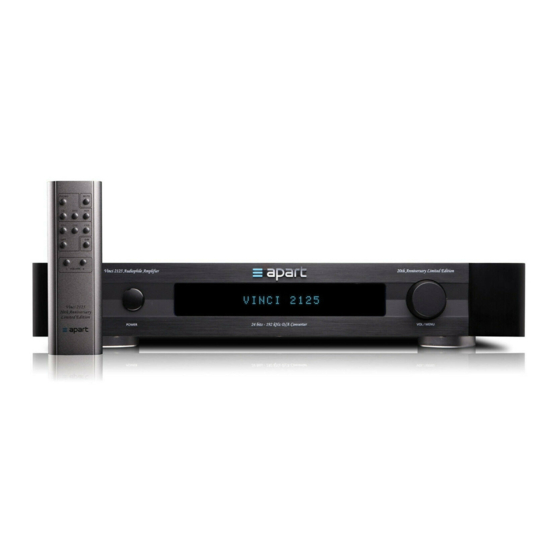

- Page 1 Vinci 2125 Installed Sound Solutions VINCI 2125 Instruction manual...
-
Page 3: Safety Instructions
VINCI 2125 Instruction manual Safety instructions Please check the packing for any kind of damage upon reception of the goods. If the packing is damaged, please contact your dealer before opening it. !!!!DANGER!!!! Exposure to high sound pressure levels may cause permanent hearing loss. Hearing loss induced by... - Page 4 Limited Edition Amplifier Turn the level controls on the amplifiers all the way down during power-up to prevent speaker damage if there are high signal levels at the inputs. Do not connect the inputs / outputs of amplifiers or consoles to any other voltage source, such as batteries, mains sources or power supplies, regardless of whether the amplifier or console is turned ON or OFF.
- Page 5 With 3 analog input pairs, a high-end phono preamp for MM or MC pick-up elements and 4 digital inputs, VINCI 2125 will be your reference amplifier for many years to come.
-
Page 6: Operation
Limited Edition Amplifier Operation Power switch: push the switch to power the unit on or off. Infrared control receiver: do not cover this area. VFD display: shows the selected input (e.g. “CD”) and actual volume setting (e.g. “-12dB”). Volume & Menu knob: in normal mode, turn to the right to increase the volume, turn to the left to decrease. - Page 7 VINCI 2125 Instruction manual Error message on the display: if “PROTECT” appears on the display, the amplifier will mute the outputs and no sound will be heard. This can have following reasons: power requirements. speaker itself is short circuited. Power off the amplifier, remove all speaker wires and inputs and remove the error condition.
- Page 8 Limited Edition Amplifier Right channel speaker: connector positive and negative terminal. Do not short circuit these terminals! Phono input: left and right analog input on RCA connectors. Phono ground: connector and mode switch: set to MM for moving magnet pick-up elements, set to MC for moving coil pick-up elements.
- Page 9 VINCI 2125 Instruction manual OPT optical input: input on Toslink® connector Power socket: with integrated mains fuse. Please replace only by a fuse with the same voltage and current rating. If the fuse blows regularly, consult your local dealer. Left channel speaker: connector positive and negative terminal.
-
Page 10: Technical Specifications
Limited Edition Amplifier Information on handling batteries / rechargeable batteries. Please adhere to the following information when handling batteries and rechargeable batteries: waste. longer periods of time. Technical specifications Output power per channel 80 watts @ 8Ω 125 watts @ 4Ω (RMS, THD<1%) Load impedance 4-8Ω... - Page 11 VINCI 2125 Instruction manual Phono input impedance MM 51 kΩ Phono input sensitivity MM <15 mV Phono input impedance MC 100Ω Phono input sensitivity MC <1 mV Digital input coaxial SPDIF standard / 75Ω Digital input optical SPDIF standard / Toslink®...
- Page 12 Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
