- Page 1 MANUAL CONCEPT1 CONCEPT1T INFO@APART-AUDIO.COM...
-
Page 2: Main Features
Low impedance (Concept 1) and 100 volt speaker line outputs (Concept 1T) available. Powerfull dynamic power amplifier circuit Intelligent power limiter circuit. 1 or 2 zone paging microphone optionally available. IR remote control optionally available. IR control extender optionally available. WWW.APART-AUDIO.COM... -
Page 3: Front Panel

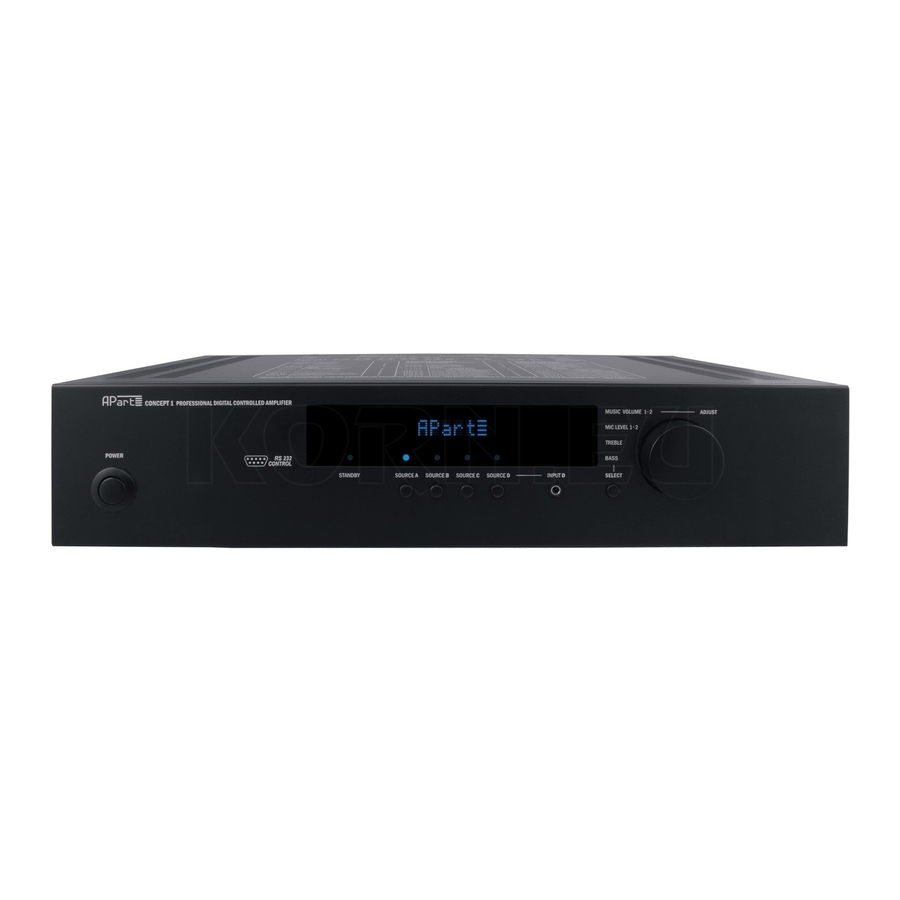

9) Stand-by led: this led is lit when the unit is powered off by RS232 control or infrared remote. The led will fl ash when data is transmitted or received from any remote control. 10) Infrared receiver 11) Multi functional dot matrix gas display INFO@APART-AUDIO.COM... -
Page 4: Rear Panel
11) Line out: these RCA connectors carry the line level signal after passing the volume control and limiter circuit. This is an ideal way to connect to active subwoofers or extra power amplifiers WWW.APART-AUDIO.COM... - Page 5 13) Right channel/zone 2 output on euroblock connector: minimum load impedance: 167 ohm or 60 watts/100 volt 14) lo-cut Left channel/zone 1: switch not available 15) Left channel/zone 1 output on euroblock connector: minimum load impedance: 167 ohm or 60 watts/100 volt INFO@APART-AUDIO.COM...
-
Page 6: User Operation
Push the select button again, EXPERT appears in the display. This menu is not allowed for the user. Push the select button again to return to VOL or wait a few seconds, the display will jump back to VOL automatically. WWW.APART-AUDIO.COM... -
Page 7: Block Diagram
In the EXPERT mode if there is no action for 1 minute, the unit will auto return to USER mode. Blockdiagram RS232 & IR Information Please check our website for the latest information on RS232 and IR communication: Http://www.apart-audio.com INFO@APART-AUDIO.COM... - Page 8 Infrared remotecontrol unit. 2-zone paging microphone. PIR-REC Infrared remote receiver with 5 meters of cable and mini jack connector. CONCEPT1T-KIT Kit of 2 pcs 100V transformers to change 1 or 2 channels of the CONCEPT1 into 100 Volt line outputs. WWW.APART-AUDIO.COM...
-
Page 9: Error Conditions
SounD amp error check if the enVironment temerature iS within the operating range of the unit (0° - 40°c). If any of these fault conditions occur, please unplug the power cord first, check your speaker lines, remove overloads. INFO@APART-AUDIO.COM... -
Page 10: Technical Specifications
Technical Specifications CONCEPT1 & CONCEPT1T TEChNiCal sPECifiCaTiONs concept 1 DynamicS program power, both channelS DriVen, 8 ohm 50 w + 50 w DynamicS program power, both channelS DriVen, 4 ohm 80 w + 80 w DynamicS capacity at 1,7 ohm DipS / ch 120 w note ;... - Page 11 CONCEPT1 & CONCEPT1T TEChNiCal sPECifiCaTiONs < 0,09% noiSe a-weighteD > 100 Dba gain 33 Db Damping factor > 100 protection SyStemS Dc, temp , clip , oVercurrent, Short-circuit cooling conVection, no fan power conSumption maX 170 watt mainS power requirementS...
-
Page 12: Safety Instructions
•In case of mal-function this device should be serviced by qualified service personnel only. ANY SUGGESTION? They are well appreciated and eventually rewarded! Send your ideas or suggestions to suggestions@apart-audio.com CONCEPT1 is developed by Audioprof nv Lanteernhofstraat 90 BE-2100 Deurne BELGIUM...
