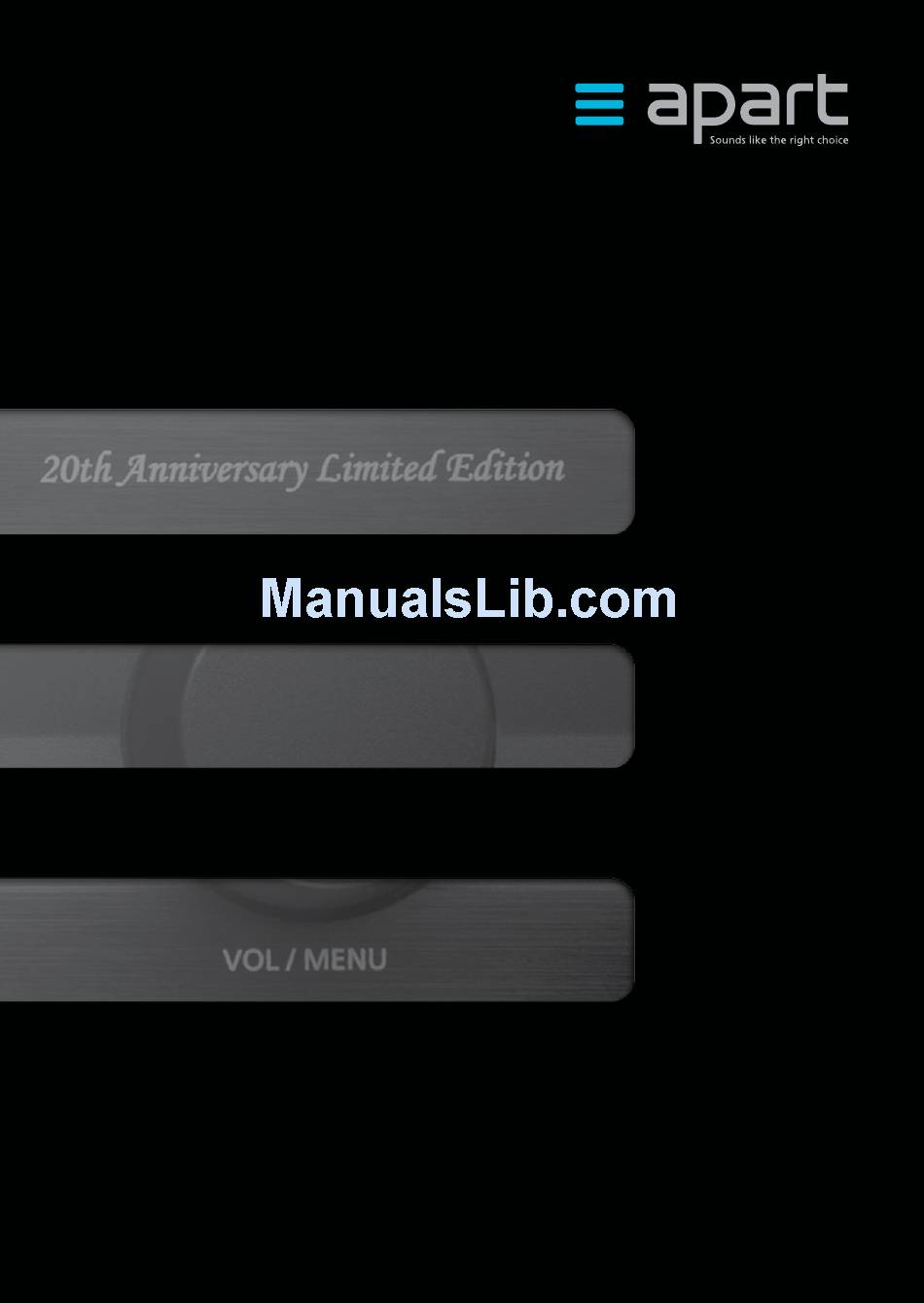

- Page 1 Vinci 2125 VINCI 2125 Instruction manual...
-
Page 3: Safety Instructions
VINCI 2125 Instruction manual Safety instructions • Please check the packing for any kind of damage upon reception of the goods. If the packing is damaged, please contact your dealer before opening it. • !!!!DANGER!!!! Exposure to high sound pressure levels may cause permanent hearing loss. - Page 4 Limited Edition Amplifier • Turn the level controls on the amplifiers all the way down during power-up to prevent speaker damage if there are high signal levels at the inputs. • Do not connect the inputs / outputs of amplifiers or consoles to any other voltage source, such as batteries, mains sources or power supplies, regardless of whether the amplifier or console is turned ON or OFF.

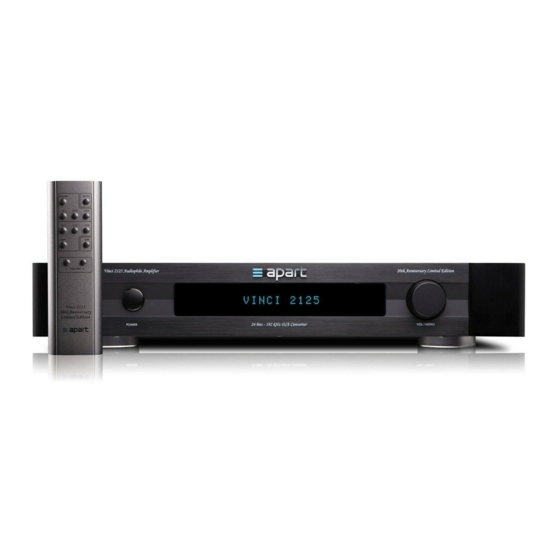

- Page 5 With 3 analog input pairs, a high-end phono preamp for MM or MC pick-up elements and 4 digital inputs, VINCI 2125 will be your reference amplifier for many years to come.
-
Page 6: Operation
Limited Edition Amplifier Operation Power switch: push the switch to power the unit on or off. Infrared control receiver: do not cover this area. VFD display: shows the selected input (e.g. “CD”) and actual volume setting (e.g. “-12dB”). Volume & Menu knob: in normal mode, turn to the right to increase the volume, turn to the left to decrease. - Page 7 VINCI 2125 Instruction manual Error message on the display: if “PROTECT” appears on the display, the amplifier will mute the outputs and no sound will be heard. This can have following reasons: • The load impedance is lower than 4 ohms, resulting in excessive power requirements.
- Page 8 Limited Edition Amplifier Right channel speaker: connector positive and negative terminal. Do not short circuit these terminals! Phono input: left and right analog input on RCA connectors. Phono ground: connector and mode switch: set to MM for moving magnet pick-up elements, set to MC for moving coil pick-up elements.
- Page 9 VINCI 2125 Instruction manual OPT optical input: input on Toslink® connector Power socket: with integrated mains fuse. Please replace only by a fuse with the same voltage and current rating. If the fuse blows regularly, consult your local dealer. Left channel speaker: connector positive and negative terminal.
-
Page 10: Technical Specifications
Limited Edition Amplifier Information on handling batteries / rechargeable batteries. Please adhere to the following information when handling batteries and rechargeable batteries: • Keep batteries out of children’s reach. • Batteries are hazardous waste and do not belong in household waste. - Page 11 VINCI 2125 Instruction manual Phono input impedance MM 51 kΩ Phono input sensitivity MM <15 mV Phono input impedance MC 100Ω Phono input sensitivity MC <1 mV Digital input coaxial SPDIF standard / 75Ω Digital input optical SPDIF standard / Toslink®...
- Page 12 Audioprof nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
