Summary of Contents for APART PA2240BP

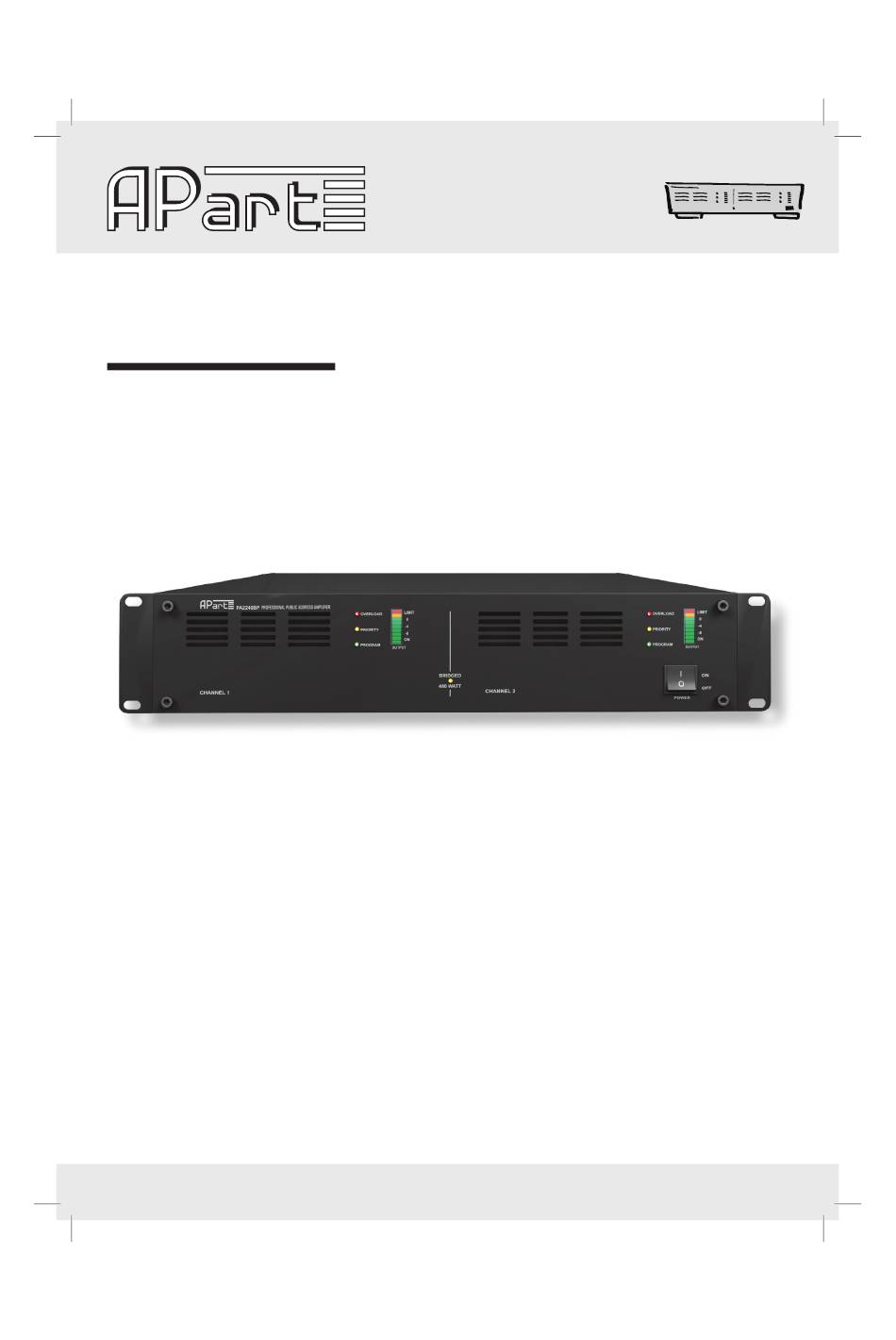

  • Page 1 MANUAL PA2240BP...
  • Page 2 Removable rack ears WWW.APART-AUDIO.COM...
  • Page 3: Front Panel

    Front panel 1. Power switch To turn the power on and off. 2. Overload indicator CH1 & CH2 This red LED illuminates when one of the protections have been activated. No sound will be heard anymore. This will be in case of overheating being the result of drawing too much power from your See also point 17 “bass control”.
  • Page 4 The signal should be at line level. Please use a balanced, shielded line cable. Connect the 13. Speaker output connector. (2 channel operation mode) Don’t mix the types of speaker connections. Only one at the time should be used. 14. Emergency power supply. power supply. WWW.APART-AUDIO.COM...
  • Page 5 15. Priority volume control With this attenuator you can set the desired level of the line level signal inserted into the priority signal input (11c). This input becomes active when the prior contact is closed (11b) 16. Program volume With this attenuator you can set the desired level of the line level signal inserted into the program signal input (12) 17.
  • Page 6 The BP2240BP can be rackmounted. In this case, remove the 3 screws from the left and right side Maintenace adviseable to ensure long term reliability. The cooling fan is a mechanical device and its function should be checked regularly. If replacement becomes necessary, contact your local dealer. WWW.APART-AUDIO.COM...
  • Page 7: Technical Specifications

    Technical specifications Type Output power capacity Total harmonic distortion Signal to noise ratio >95dB Inputs Sensitivity : -1dB Speaker outputs channel 1 : 4 ohm, 35V, 50V, 70V, 100V / 240W channel 2 : 4 ohm, 35V, 50V, 70V, 100V / 240W Crosstalk >75dB Additional outputs...
  • Page 8 WWW.APART-AUDIO.COM...
