Summary of Contents for EOGB RINOX 35

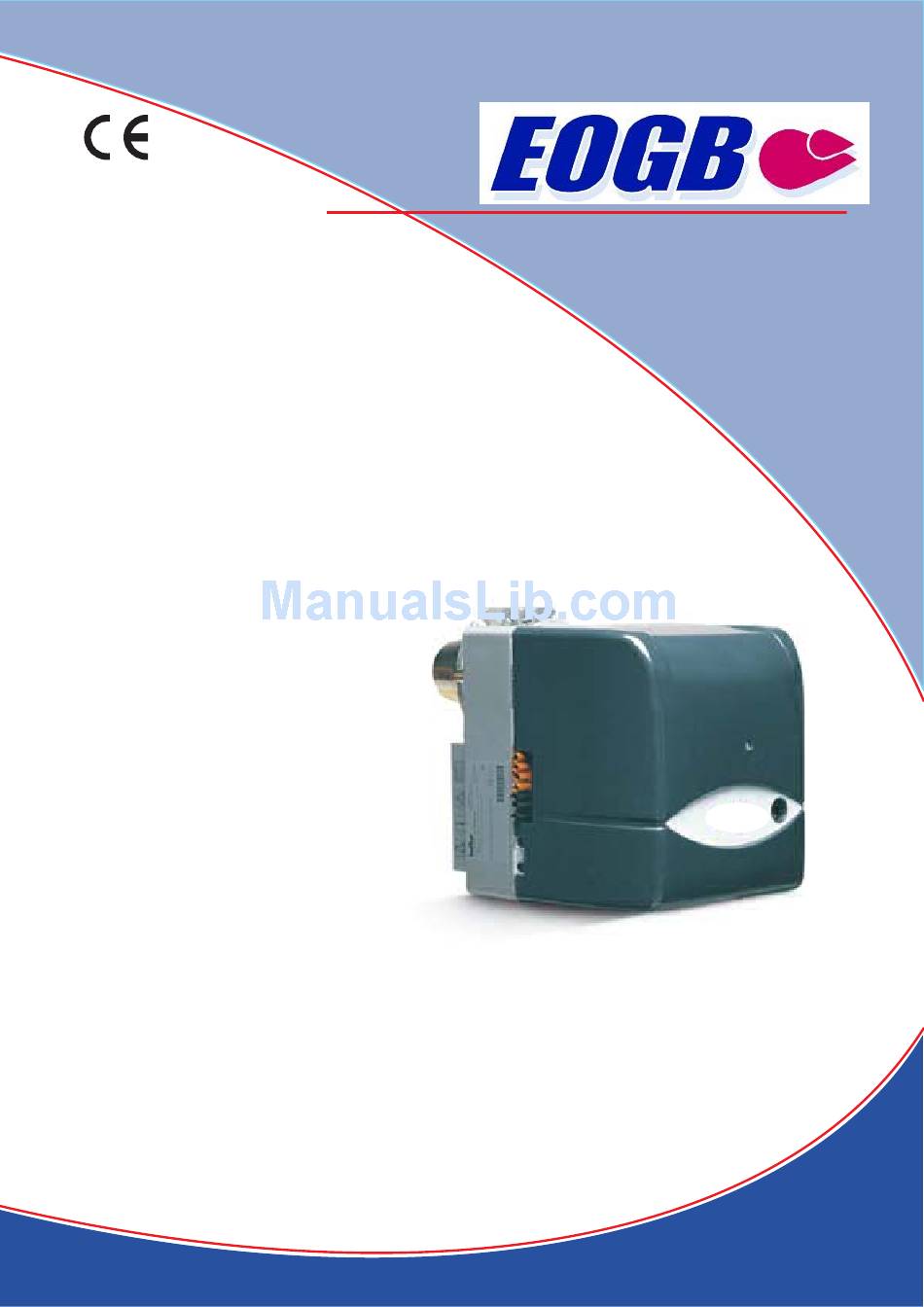

- Page 1 - Instruction for ligth oil burner models RiNOx 35 2006/05 Edition...
-
Page 2: Table Of Contents
CE, CEI and UNI standards. • EOGB guarantees the “CE” certification provided that the burner is coupled to the “CE” gas train supplied by EOGB and the “CE” gas line accessories (on request). -
Page 3: Warning Notes For The User
• If there is any fault or if the equipment is not working properly, de-activate the equipment and do not attempt to repair it or tamper with it directly. In such case get in touch with only qualified technicians. Any product repairs must only be carried out by EOGB authorised assistance centres using only original spare parts. - Page 4 WARNING NOTES FOR THE USER HOW TO USE THE BURNER SAFELY ELECTRICAL SUPPLY • The equipment is electrically safe only when it is correctly connected to an efficient ground connection carried out in accordance with current safety regulations. It is necessary to check this essential safety requirement. If in doubt, call for a careful electrical check by a qualified technicians, since the manufacturer will not be liable for any damage caused by a poor ground connection.
-
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS RiNOx 35 Max kg/h 3.40 Burner Output Min kg/h 1.60 Max kg/h 40.0 Thermic Capacity Min kg/h 19.0 Fuel Maximum Viscosity 5.5 cst / 20 (light oil) 1 ~ 230V ± 10% Electrical Supply 50Hz Motor 0.11 Pre-heater Transformer 30 mA –... - Page 6 TECHNICAL SPECIFICATIONS OVERAL DIMENSIONS RiNOx 35 245 122.5 122.5 220 218.5 Control Box Transformer 7 Pole Connector Air-Damper Adjusting Screw Reference for Disk Head Positioning Combustion Head Disk Head Adjusting Screw Photocell Electrovalve 10. Light Oil Pump 11. Motor 12. Burner Connection Flange 13.
- Page 7 WORKING FIELD - 7 -...
-
Page 8: Hydraulic Connections
HYDRAULIC CONNECTIONS The pipes that connect the tank to the burner should be in perfect tight condition; we recommend the use of copper or steel N° 0002900860 pipes of an adequate diameter. Fuel gate valves should be fitted at the end of the rigid pipelines. Fit the filter to the suction Rev. -
Page 9: Application Of The Burner To The Boiler
DIAGRAM SHOWING HOW TO PLACE THE FLEXIBLE PIPES The two flexible hoses must be positioned as shown on the figure to ensure correct closing of the cover, they can come out from the lower side or the left side of the burner. APPLICATION OF THE BURNER TO THE BOILER WITH SLIDING FLANGE: - Fasten flange (B) to the boiler with n°4... -
Page 10: Burner Specifications
CONTROL BOX SPECIFICATIONS Extraneous light / advanced ignition During the pre-purging and/or pre-starting phase there shall be no flame signal. Should the signal be present, for example for advanced ignition due to bad tightness of the electrovalve, external lighting, short-circuit in the photo- resistance or in the connecting cable, a breakdown in the flame signal amplifier, and so on., when the pre-purging and safety time has elapsed, the control-box brings the... -
Page 11: Ignition Adjustment - Air Regulation Principle Diagram - Combustion Adjustment
N.B. To prevent damage to the support or the pre-heater effect nozzle assembly/ disassembly tasks with the aid of a wrench and counter-wrench. RiNOx 35 COMBUSTION ADJUSTMENT 1 AIR REGISTER OPENING ADJUSTER - Reference index in position “0” register closed - Reference index in position “9”... -
Page 12: Maintenance
Set-point n° Set-point n° 0.85 3.40 0.75 2.90 0.60 2.40 RiNOx 35 0.50 1.80 (with pre-heating 0.40 1.50 NOTE: NOTE: RECOMMENDED NOZZLES The values reported on this table are The values indicated in the table are purely STEINES type .. -
Page 13: Pump Specifications
PUMP SPECIFICATIONS SUNTEC AE 47C 1387 ELECTROVALVE (USUALLY CLOSED) PRESSURE TEST POINT AND PURGE POINT (1/8”) PRESSURE REGULATION SCREW RETURN SUCTION DELIVERY TO NOZZLE VACUUM TEST POINT (1/8”) N.B. The pump is preset at a 12 bar pressure. - 13 -... -
Page 14: Fault Finding Table
DETAILS of PROBLEM POSSIBLE CAUSE SOLUTION Flame disc dirty or worn. Clean or replace it. Photocell dirty or greasy. Clean or replace it. The burner goes to “lock-out” with the Equipment fault. Check all smoke circuits inside flame on (red light on). the boiler and the chimney. -
Page 15: Electric Diagram
ELECTRIC DIAGRAM ELECTRIC CONNECTIONS The electrical lines should be at an adequate distance from hot parts. It is advisable to make all the connections with flexible electric wire. Conductor’s minimum section 1.5 mm L1 - PHASE - GROUND N - NEUTRAL -Block Lamp -Operation Light -Photocell... -
Page 16: Nozzle Flow Rate
NOZZLE FLOW-RATE TABLE FOR LIGHT OIL Pump Pressure Nozzle Nozzle Nozzle output flow-rate G.P.H. G.P.H. kg/h 0.40 1.27 1.36 1.44 1.52 1.59 1.67 1.73 1.80 1.86 1.92 1.98 2.04 2.10 2.15 2.20 0.40 0.50 1.59 1.70 1.80 1.90 1.99 2.08 2.17 2.25 2.33... - Page 17 EOGB Energy Products Ltd 5 Howard Road, Eaton Socon, St. Neots, Cambs. PE19 8ET Telephone: 08703 899499 Facsimile: 01480 477022 Website: www.eogb.co.uk 197506...
