Powered Subwoofer with Built-in Active Stereo Crossover

Congratulations on your purchase. We trust that you will enjoy the value and quality of your AudioSource SW Two for

many years. To ensure the best perf o rmance from your unit, please take a few moments to read this manual. Also, be sure

to retain this document for future re f e re n c e .

SW Two Overview

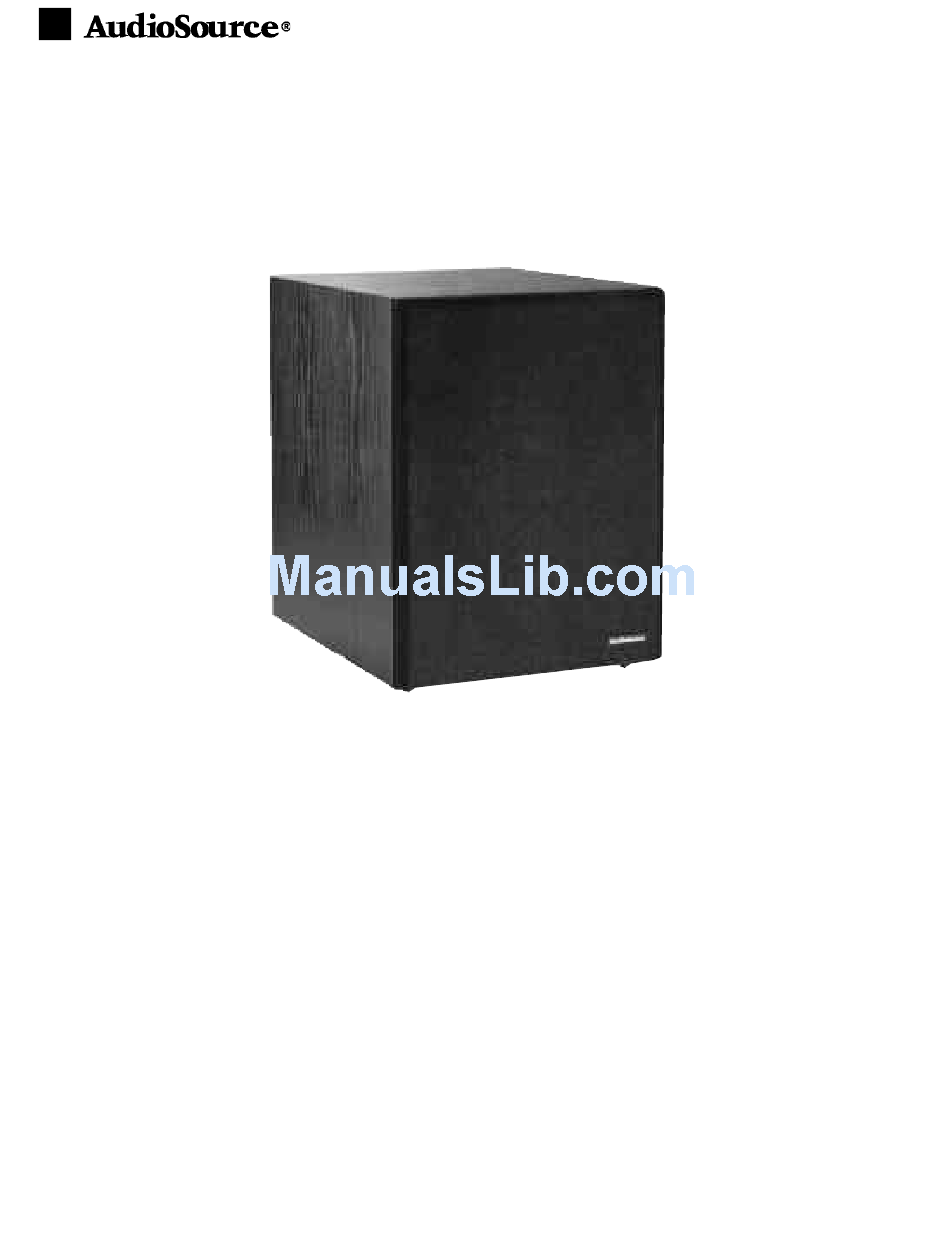

The AudioSource SW Two represents the state of the art in powered subwoofers. The highly efficient ported enclosure houses

a rugged ten-inch, reinforced driver, a powerful one hundred-watt amplifier and an integral stereo crossover network. This

precision matched combination ensures the SW Two will deliver the best sound possible, under even the most demanding

conditions. Both crossover frequency and input level are variable over a wide range, allowing the SW Two to complement a

wide variety of systems. Line level and hi level inputs and outputs are provided for fast and easy connection to virtually any

system. The three-way auto power and phase reverse functions complete the generous list of features offered by the SW Two.

A Few Words about Subwoofers

Subwoofers are designed to extend the bass response of your system beyond the limitations of most speakers. This unit is to

be used in conjunction with, not in place of, your existing left and right speakers. The low frequency sounds reproduced by

the subwoofer will radiate equally in all directions. It is not necessary to have a pair of subwoofers. A single subwoofer can

dramatically enhance a stereo TV, a stereo system, or a full fledged home theater.

The advent of digital re c o rding has increased the amount of low frequency information found on re c o rded material. Subwoofers

are designed to accurately reproduce this bass. Similarly, most movies intended for home viewing feature bass well below the

musical range of traditional loudspeakers. However, this information is vital to the impact, ambiance, and believability of a

scene. A subwoofer enhances those elements in your home theater.

Note: If any part of this product is damaged or missing, do not contact your AudioSource dealer. Please call us directly at 800-435-7115.

SW Two

Owner's Manual

Need help?

Do you have a question about the SW 2 and is the answer not in the manual?

Page 1 However, this information is vital to the impact, ambiance, and believability of a scene. A subwoofer enhances those elements in your home theater. Note: If any part of this product is damaged or missing, do not contact your AudioSource dealer. Please call us directly at 800-435-7115.
Page 2 Placement Guidelines Prior to installing your new subwoofer, please consider the following guidelines. Placing the subwoofer near a wall or in a corner will greatly increase its bass response. As f requencies re p roduced by subwoofers are long and need room to propagate, a subwoofer placed near the listening position will not sound as full as one placed farther away.
Page 3 Line Level Connections Hi Level Connections In this example, the pre-amp outputs of a stereo receiver are H e re the signal is already amplified as it leaves the re c e i v e r / connected to the SW Two line inputs . The line outputson the a m p l i f i e r.
Page 4: Safety Instructions
In the event your SW Two fails to operated properly, please contact the dealer Precautions should be taken so that the grounding or polarization means of where you purchased the unit. Or you may contact AudioSource an appliance is not defeated.
