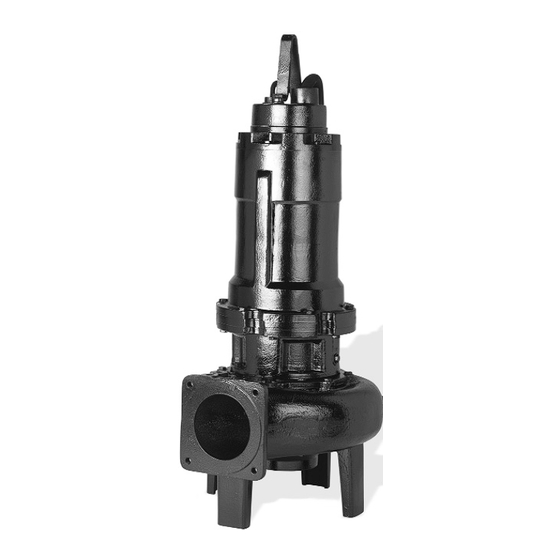

- Page 1 CALL 1-800-577-8111 FOR SALES AND SUPPORT I n s t r u c t i o n a n d O p e r a t i o n M a n u a l Model DMLU CALL 1-800-577-8111 FOR SALES AND SUPPORT...
-
Page 2: Table Of Contents
Safety Information and Introduction Warnings in this manual provide information for safe use of your EBARA pump, and instructions for preventing injury to those operating it. Please pay close attention to the instructions listed below. If there are any questions regarding these instructions, please direct them to EBARA INTERNATIONAL CORPORATION. -
Page 3: Delivery Checks
CALL 1-800-577-8111 FOR SALES AND SUPPORT DMLU Delivery Checks Project: Model: Chk’d: Date: When your pump is delivered, check the following items immediately. 1. Pump and accessories a.) Confirm that no damage has occurred during transportation. b.) Confirm that all items have been delivered. -
Page 4: Installation
CALL 1-800-577-8111 FOR SALES AND SUPPORT DMLU Installation 1. Before installation: a.) Use a megger to measure the insulation resistance between the ground wire and each phase of the motor. Keep the ground wire off the ground during measurement. The value of each reading should be more than 20 meg-ohms. -
Page 5: Operation
5. If voltage, current and discharge pressure are acceptable, you may continue to operate the pump on a continuous basis. Please refer to “Troubleshooting” section of the manual or contact your local EBARA distributor if one of these items is outside of allowable limits. -
Page 6: Maintenance
CALL 1-800-577-8111 FOR SALES AND SUPPORT DMLU Maintenance Project: Model: Chk’d: Date: Note: Disassembly and repair of the pump should only be performed by factory trained service centers. Errors made by unqualified personnel can result in improper assembly and operation, therefore resulting in possible injury. -
Page 7: Troubleshooting
CALL 1-800-577-8111 FOR SALES AND SUPPORT DMLU Troubleshooting Project: Model: Chk’d: Date: Trouble Cause Remedy Motor won’t turn. (1) Foreign matter hinders level control float from functioning (1) Remove foreign matter Starts, but immediately properly. stops. (2) Power failure. (2 - 3) Contact electric power company for remedy (3) Large voltage unbalance. -
Page 8: Disassembly And Reassembly
CALL 1-800-577-8111 FOR SALES AND SUPPORT DMLU Disassembly and Reassembly Project: Model: Chk’d: Date: 1. Disassembly: a.) Unscrew and remove the bolts (120-2), and lift the motor out of the pump casing. Lay it down on its side carefully. b.) Unscrew and remove the impeller bolt (275), then pull the impeller (021) off the motor shaft. -
Page 9: Parts
CALL 1-800-577-8111 FOR SALES AND SUPPORT DMLU Sectional view Project: Model: Chk’d: Date: 80DML62.2 PART NO. FOR PART NO. FOR 1 PART NAME MATERIAL PART NAME MATERIAL 1 UNIT UNIT CASING CAST IRON SUBMERSIBLE CABLE — MECHANICAL SEAL COVER CAST IRON... - Page 10 CALL 1-800-577-8111 FOR SALES AND SUPPORT DMLU Sectional view Project: Model: Chk’d: Date: 5 to 10 HP 80DML 100DML 150DML PART NO. FOR PART NO. FOR PART NAME MATERIAL PART NAME MATERIAL 1 UNIT 1 UNIT CASING CAST IRON 811-1 —...
-
Page 11: Submersible Cable (Signal)
CALL 1-800-577-8111 FOR SALES AND SUPPORT DMLU Sectional view Project: Model: Chk’d: Date: 15 to 30HP 80DML 100DML 150DML PART NO. FOR 1 PART NO. FOR 1 PART NAME MATERIAL PART NAME MATERIAL UNIT UNIT CASING CAST IRON 811-1 —... -
Page 12: Warranty
(EXCEPT MODEL EPPD SUMP PUMPS) Ebara International Corporation, Rock Hill, SC (“EIC-RH”) warrants to the original purchaser only (“Customer”) that the EIC-RH Commercial Pump/Product (“Pump”) will be free of defects in workmanship and material for a period of twelve (12) months from the date of installation or eighteen (18) months from the date of shipment by EIC-RH, whichever comes first, provided that notification of any such defect is promptly given in writing to EIC-RH.
