QuickSpecs
Overview

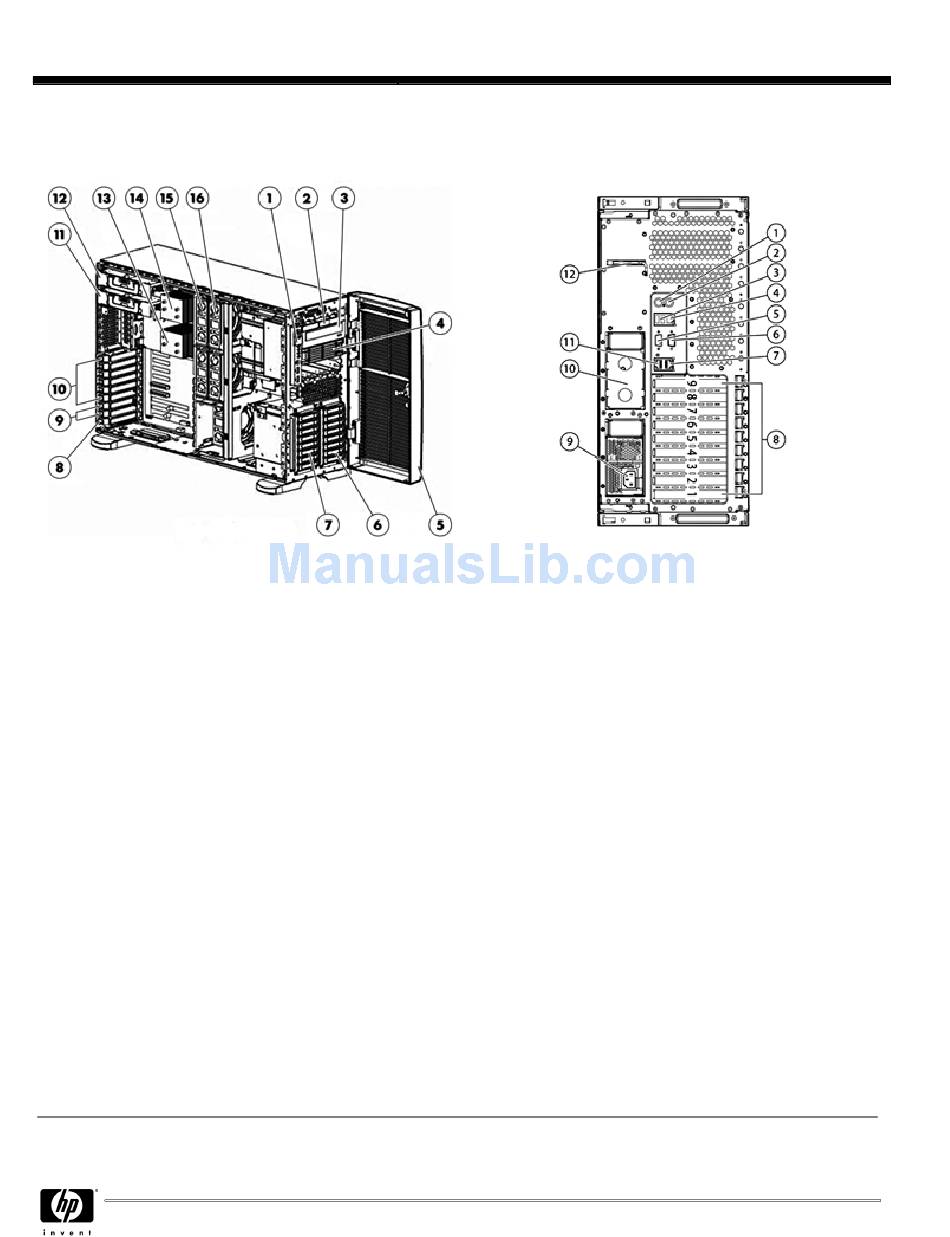

Front View:
1.
System Insight Display (SID)
2.
Media Bay Spacer (Tower)/Video Connector (Rack)
3.
DVD-ROM Drive
4.
Removable Media Bays
5.
Front Bezel (Tower Model Only)
6.
Hard Drive Bays 1-8 (Serial-attached SCSI (SAS) drives
supported - SFF)
7.
Hard Drive Bays 9-16 - Optional Drive Cage (Serial-
attached SCSI (SAS) drives supported - SFF)
8.
Integrated RAID Controller Slot
9.
(2) PCI-X 64 Bit/133MHz Slot
10.
(6) PCI-Express x4 Slot
11.
(8) PC2-5300 Fully Buffered DIMM Slots per memory card -
Standard
12.
(8) PC2-5300 Fully Buffered DIMM Slots per memory card -
Optional
13.
Dual-Core Intel Xeon processor - Optional
14.
Dual-Core Intel Xeon processor - Standard (2 processors
standard on all Performance Models)
15.
(3) Hot Plug Redundant Fans - Standard
16.
(3) Hot Plug Redundant Fans - Optional
HP ProLiant ML370 G5 Model (tower)
DA - 12478
Worldwide QuickSpecs — Version 47 — 10.12.2009
HP ProLiant ML370 Generation 5
Rear View:
1.
Keyboard connector
2.
Mouse connector
3.
USB connectors
4.
Integrated Lights-Out 2 (iLO 2) management connector
5.
Video connector
6.
Serial connector
7.
NIC 2 connector
8.
PCI expansion slots
9.
Hot-plug power supply (primary bay)
10. Hot-plug power supply blank (redundant bay)
11. NIC 1 connector
12. T-15 Torx screwdriver
Page 1
