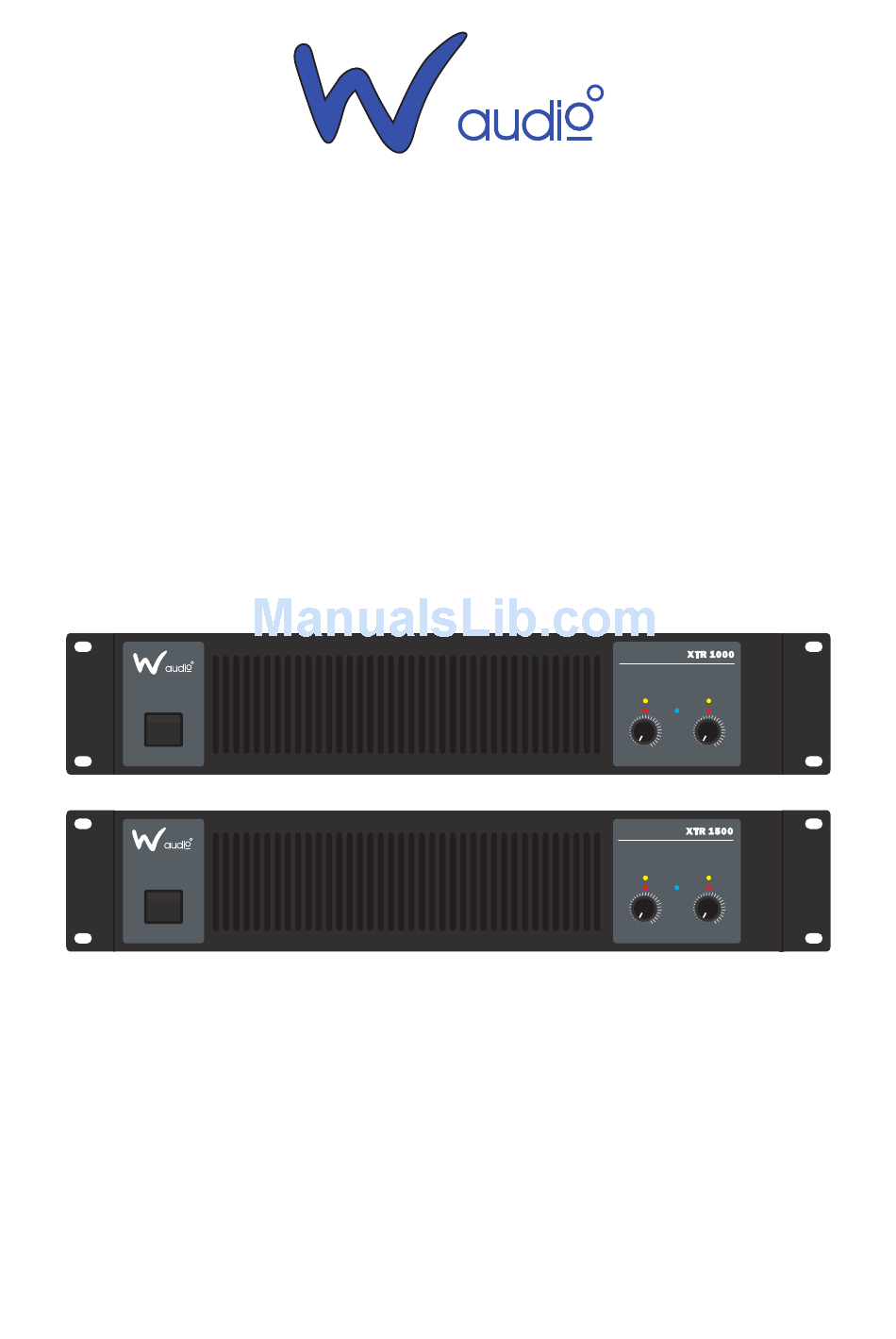

XTR Series Power Amplifiers User Manual CLIP CLIP PROTECT PROTECT POWER POWER CH A CH B CLIP CLIP PROTECT PROTECT POWER POWER CH A CH B Order codes: AMP50 - XTR 1000 AMP51 - XTR 1500...
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all the parts are present. • Before initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • Retain the carton and all packaging materials. • In the event that the equipment must be returned to the supplier, it is important that the equipment is returned in the original carton and packaging. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! KEEP THIS EQUIPMENT TAKE CARE USING AWAY FROM MOISTURE, THIS EQUIPMENT! RAIN AND LIQUIDS, AND...
Product overview XTR Series Power Amplifiers Professional power amplifiers offering superior reliability and performance, to suit a variety CLIP CLIP PROTECT PROTECT of applications. POWER POWER CH A CH B • Short circuit, overload and thermal protection • Fan cooled • Ground lift CLIP CLIP PROTECT PROTECT POWER POWER CH A CH B In the box: 1 x power amplifier, 1 x power cable &...
Page 4
Product overview XTR 1000 & XTR 1500 dimensions 426mm 484mm www.prolight.co.uk XTR Series Power Amplifiers User Manual...
Technical specifications XTR 1000 & XTR 1500 front panel CLIP CLIP PROTECT PROTECT POWER POWER CH A CH B 01 - Clip LEDs - These LEDs flash amber to indicate when After you have set the levels for the mixer (or other signal the output of the amplifier has reached the maximum, source), adjust the level controls on the amplifier as the and is right on the edge of clipping. Clipping is bad for final adjustment to set the overall volume for the system. speakers and should be avoided. It is okay if the LED In stereo and mono mode, use both level controls to blinks occasionally. It means that the transient peaks of control the levels going to each speaker. the music are just hitting the full output of the amplifier. 03 - Power LED - This LED illuminates when the amplifier 02 - Gain control - These two knobs control the levels of is switched on. Channels 1 and 2. Usually, these controls are set all 04 - Protect LED - If this LED is illuminated during operation, the way up. You might turn them down slightly if you one of the protection circuits is active. Please take the have high-efficiency speakers. Also, you could use them amplifier out of operation and have it tested. to control the level of line-level sources such as a CD 05 - Power switch - Press this switch to power the player connected directly to the amplifier without a amplifier on.
Operating instructions Rack installation The EP Series is built for 19” racks. The rack you use should be a ‘double door rack’ where you can open the front and rear panel. When mounting the amplifier into the rack, please make sure that there is enough space around the amplifier. Be careful when mounting the amplifier into the rack. Put the heaviest products into the lower part of the rack. Be aware that fastening the amplifier with four screws on the front panel is not enough. If the racks are being transported or used for mobile use, additionally fasten the products by connecting the rear brackets with the side or ground bars of the rack. In this way, the amplifier cannot be pushed backwards. The front panel is not designed to absorb acceleration forces occuring during transportation. Inputs Short cables runs improve the sound quality remarkably. Input cables should be short and direct, since high frequencies will mostly be absorbed if the cables are unnecessarily long. Besides that a longer cable may lead to humming and noise problems. If the cable runs are unavoidable, you should use balanced cables. Outputs The high damping factor of your amplifier supplies a clear sound reproduction. Unnecessarily long and thin cables will influence the damping factor and thus the low frequencies in a negative way. In order to safeguard good sound quality, the damping factor should lie around 50. The longer a cable has to be the thicker it should be. Connect your speaker systems via the locking speaker connectors or the Bannana/Screw combination (red+, black-) Connection to the mains Connect the amplifier only after having made sure that the correct voltage (240V) is supplied and that the ground cable is earthed. This product falls under Class 1. Do not detach the ground cable. www.prolight.co.uk XTR Series Power Amplifiers User Manual...
Operating instructions Operation After having connected your amplifier to the mains, turn both gain controls counter clockwise to the “min” position. The last product to be switched on is amplifier. The “ON” and “PROTECT” LED lights up now. If it does not, check if the amplifier is connected to the mains correctly. After the turn on delay the speakers are activated (PROTECT-LED is off). After having set the volume controls of the pre-amplifier to the “OFF” position, turn the gain controls of your amplifier to mid-position. Now adjust the volume with the gain controls CH A and CH B. All important operating modes of the amplifier are arranged on the front panel. -20 dB to 30dB - Output level Clip - Short circuit or impedance too low or signal distorted Protect - Active during stabilisation period after switching on or when one of the protective circuits is activated If you want to switch off the system, switch off the amplifier first in order to avoid acoustic shocks on the speakers. Problem Chart Problem Cause Solution No power The power cable is not connected Check the power cable and any extension cables The power cable of the respective product is Check the power cable and if the plugs are properly not connected correctly or not at all. connected with the sockets No sound The connection socket or the plug is dirty Clean the socket and/or the plug Noise The input signal is too strong Reduce the input signal via the gain control Fan does not work, The power cable is not connected...
Page 8
Operating instructions & WEEE notice Cleaning and Maintenance We recommend a frequent cleaning of the product. Please use a soft lint free and moistened cloth. Never use alcohol or solvents. There are no serviceable parts inside the product except for the fuse. Maintenance and service operations are only to be carried out by authorised dealers. Replacing the fuse Only replace the fuse with a fuse of the same type and rating. Before replacing the fuse, unplug the mains cable. Procedure: Step 1: Open fuse holder on the rear panel with a screwdriver. Step 2: Remove the old fuse from the fuse holder. Step 3: Install the new fuse in the fuse holder. Step 4: Replace the fuse holder in the housing. Should you need any spare parts, please use genuine parts. Should you have any further questions, please contact your dealer. Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the...
