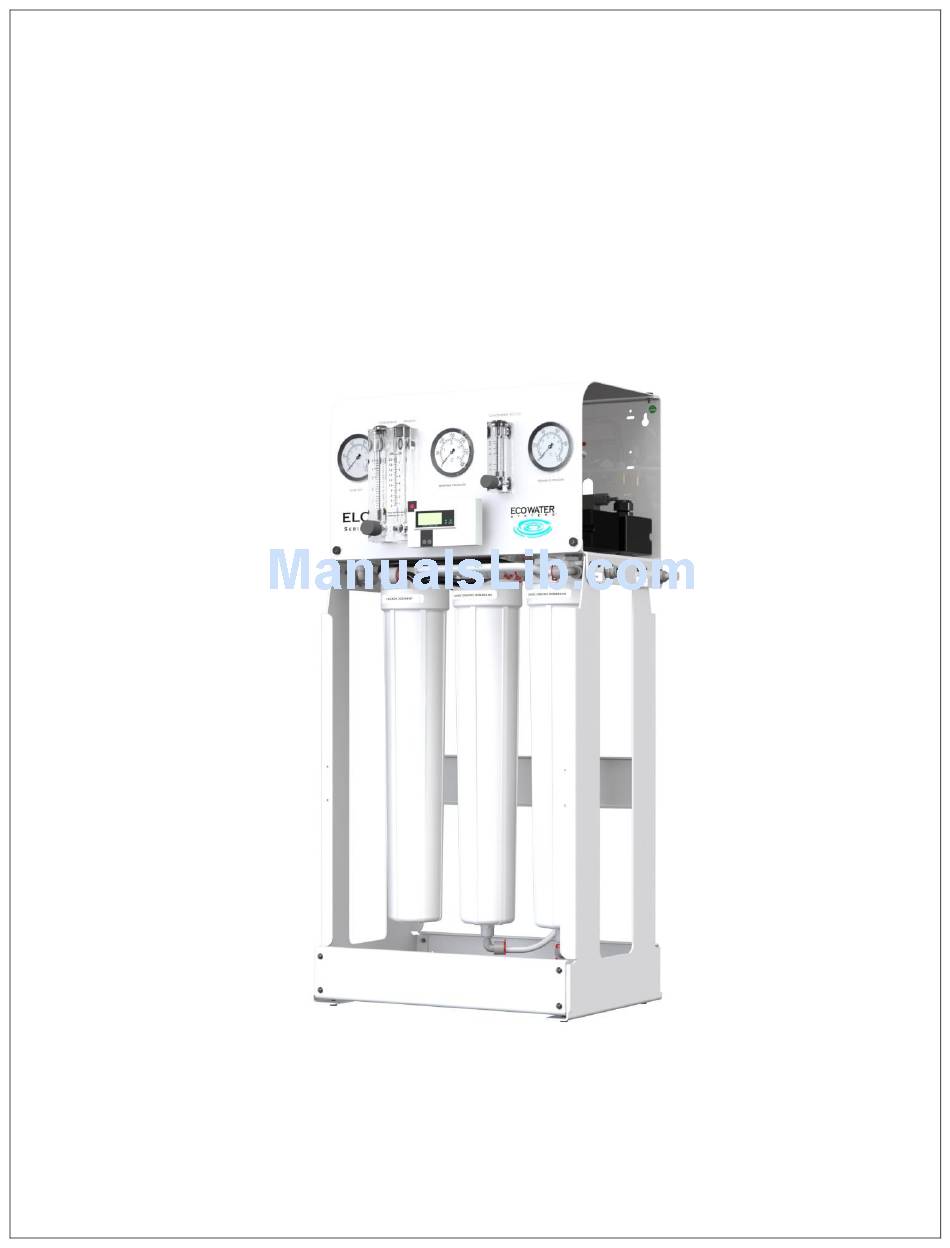

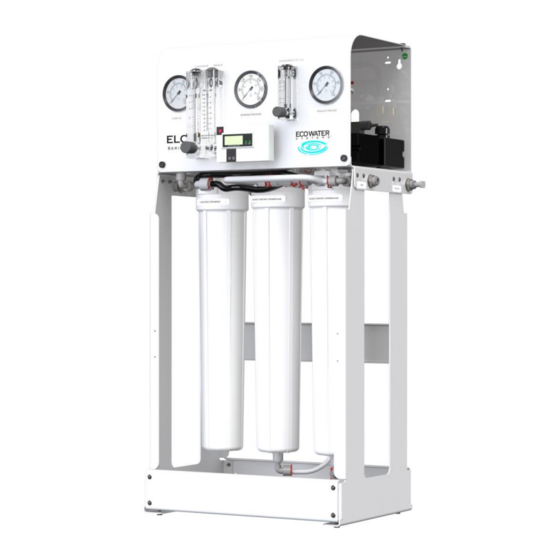

- Page 1 Membrane System User Manual ELC – Series ELC – 1500...
- Page 2 This page intentionally left blank ELC – Series User Manual MKTF – 506-A 03/18...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ......................4 SAFETY .......................... 5 FEEDWATER AND OPERATION SPECIFICATIONS ............. 6 REJECTION, RECOVERY AND FLOW RATES ............. 7 SYSTEM REQUIREMENTS AND OPERATION GUIDELINES ........8 ELECTRICAL ........................9 MEMBRANE ELEMENTS ..................... 10 SYSTEM IDENTIFICATION ..................11 MEMBRANE INSTALLATION, REMOVAL AND REPLACEMENT ........ -
Page 4: Introduction
INTRODUCTION Your ELC – Series Reverse Osmosis System is a durable piece of equipment which, with proper care, will last for many years. This User Manual outlines installation, operation, maintenance and troubleshooting details vital to the sustained performance of your system. -
Page 5: Safety
SAFETY The Safety section of this User Manual outlines the various safety headings used throughout this manual’s text and are enhanced and defined below: INDICATES STATEMENTS THAT ARE USED TO IDENTIFY CONDITIONS OR PRACTICES THAT COULD RESULT IN EQUIPMENT OR OTHER PROPERTY DAMAGE. -
Page 6: Feedwater And Operation Specifications
FEEDWATER AND OPERATION SPECIFICATIONS Nothing has a greater effect on a reverse osmosis system than the feedwater quality. IT IS VERY IMPORTANT TO MEET THE MINIMUM FEEDWATER REQUIREMENTS. FAILURE TO DO SO WILL CAUSE THE MEMBRANES TO FOUL AND VOID THE MANUFACTURER’S WARRANTY. -
Page 7: Rejection, Recovery And Flow Rates
REJECTION, RECOVERY AND FLOW RATES LC – Series Reverse Osmosis Systems are designed to produce permeate water at the capacities indicated by the suffix in the system’s name under the conditions listed above. For example, the ELC – 750 system produces 750 gallons per day of permeate water at the listed operating test conditions. -
Page 8: System Requirements And Operation Guidelines
SYSTEM REQUIREMENTS AND OPERATION GUIDELINES PLUMBING The membranes and high pressure pumps used on ELC – Series systems require a continuous flow of water with a minimum feed pressure of 40 psi, not to exceed 60 psi. FEEDWATER CONNECTION 1. Locate the 1/2” quick connect tube fitting labeled “feed” on the left side of the frame. 2. -
Page 9: Electrical
ELECTRICAL The motor used on the ELC is available in 110 VAC 60 Hertz 1 Phase. Each ELC – Series system is equipped with an eight–foot electrical cord with a three pronged electrical plug. Ensure that the electrical circuit supplying the system is compatible with the requirements of the specific ELC –... -
Page 10: Membrane Elements
MEMBRANE ELEMENTS ELC – Series Reverse Osmosis Systems are equipped with Thin Film Composite (TFC) HF5 – Ultra Low Energy membranes, unless otherwise specified. General membrane element performance characteristics are listed below. HF5 – Ultra Low Energy Membranes ▪ Membrane Type: Polyamide Thin – Film Composite ▪... -
Page 11: System Identification
SYSTEM IDENTIFICATION Figure 1 ELC – Series User Manual MKTF – 506-A 03/18... - Page 12 SYSTEM IDENTIFICATION AXEON ITEM AXEON DESCRIPTION PART MODEL(s) CARTRIDGE, SEDIMENT, POLYPRO, 2.5" x 20", 5 MIC, SDF–25–2005 200626 750 - 1500 CARTRIDGE, CARBON, BLOCK, 2.5" x 20", 10 MIC, CBF–25–2010 200659 METER, FLOW, PM, 0.2–2 GPM, 1/2" MNPT x 1/2" MNPT, AXEON 200897 750 - 1500 GAUGE, PM, GLY FILL, 0–300 PSI/BAR, 2.5"...
-
Page 13: Membrane Installation, Removal And Replacement
MEMBRANE INSTALLATION, REMOVAL AND REPLACEMENT Installation and replacing membranes in the pressure vessels is an easy process if you have the proper information and tools at hand. Please refer to the following instructions when removing and replacing membrane elements: ALL PRESSURE GAUGES MUST READ ZERO BEFORE PROCEEDING. BEFORE ATTEMPTING, DISCONNECT THE POWER FROM THE SYSTEM AND BLEED ALL WATER PRESSURE FROM THE SYSTEM. - Page 14 REPLACING THE MEMBRANE ELEMENT: THE BRINE SEAL MUST BE IN THE CORRECT POSITION FOR EACH MEMBRANE ELEMENT HOUSING. THE BRINE SEAL IS A RUBBER SEAL THAT PROTRUDES ON ONE SIDE OF THE MEMBRANE AND IS ALWAYS ON THE FEED SIDE OF THE MEMBRANE ELEMENT.
- Page 15 Figure 2 ELC – Series User Manual MKTF – 506-A 03/18...
- Page 16 Figure 3 ELC – Series User Manual MKTF – 506-A 03/18...
-
Page 17: Initial Start-Up
INITIAL START–UP Carefully inspect your system before initial start–up. Check that all plumbing and electrical connections are not loose or have not come undone during shipment. Direct the permeate water line to drain for this procedure. 1. Fully open the concentrate valve by turning it counter–clockwise. (#12, Figure 1, Page 11) 2. -
Page 18: Operating Do's And Don'ts
OPERATING DO'S AND DON'TS • Change the cartridge filters regularly. • Monitor the system and keep a daily log. • Run the system as much as possible on a continuous basis. • Adjust the system recovery to the recommended value. •... -
Page 19: Product Specifications
PRODUCT SPECIFICATIONS ELC – 750 ELC – 1500 Models Design Configuration Single Pass Single Pass † Feedwater Source TDS up to 1,000 TDS up to 1,000 Nominal Recovery Rate Up to 65% Up to 75% ††† Rejection and Flow Rate Nominal Salt Rejection 98.5% 98.5%... -
Page 20: Operating Limits
†† Operating Limits Design Temperature 77°F Maximum Turbidity Maximum Feed Temperature 85°F Maximum Free Chlorine (ppm) Minimum Temperature 40°F Maximum TDS (ppm) 1,000 Maximum Ambient Temperature 120°F Maximum Hardness (gpg) Minimum Ambient temperature 40°F Maximum PH (continuous) Maximum Feed Pressure Minimum PH (continuous) Minimum Feed Pressure Maximum PH (cleaning 30 minutes) -
Page 21: Operation And Maintenance
OPERATION AND MAINTENANCE The reverse osmosis process causes the concentration of impurities. The impurities may precipitate (come out of solution) when their concentration reaches saturation levels. PRECIPITATION CAN SCALE OR FOUL MEMBRANES AND MUST BE PREVENTED. Check your feedwater chemistry and pre–treat the water and/or reduce the system’s recovery as required. -
Page 22: Flushing The System
FLUSHING THE SYSTEM The system should be flushed weekly to remove sediment from the surface of the membranes. To manually flush the system, follow these steps: 1. The system must be operating during the flush procedure. 2. Fully open the concentrate valve by turning it counter–clockwise. (#12, Figure 1, Page 11) 3. -
Page 23: Preparing Unit For Storage And Shipment
PREPARING UNIT FOR STORAGE OR SHIPMENT Prior to shipping or storing your system, the system should be cleaned with an appropriate cleaner, flushed with water and protected from biological attack with an appropriate solution for membrane elements. The membrane housing(s) and plumbing lines of the system must be completely drained. -
Page 24: Troubleshooting
TROUBLESHOOTING SYMPTOMS POSSIBLE CAUSES CORRECTIVE ACTION Low supply pressure Increase inlet pressure Cartridge filters plugged Change filters Low Inlet Pressure Solenoid valve malfunction Replace solenoid valve and/or coil Leaks Fix any visible leaks Low inlet flow Adjust concentrate valve Cold feedwater See temperature correction sheet Low Permeate Flow Low operating pressure... - Page 25 ABNORMAL PERMEATE FLOW Permeate flow should be within 20% of the rated production, after correcting the feedwater temperatures above or below 77°F. Check the permeate flow meter to determine the permeate flow rate. TO DETERMINE THE TEMPERATURE CORRECTION FACTOR, LOCATE THE TEMPERATURE CORRECTION TABLE IN THIS USER MANUAL AND FOLLOW THE DIRECTIONS.
-
Page 26: Operating Log
OPERATING LOG ELC – Series User Manual MKTF – 506-A 03/18... -
Page 27: Temperature Correction Factors For Membrane
TEMPERATURE CORRECTION FACTORS FOR MEMBRANE Find the temperature correction factor (TCF) from the table below. Divide the rated permeate flow at 77°F by the temperature correction factor. The result is the permeate flow at the desired temperature. (See example on the next page.) ELC –... -
Page 28: Service Assistance
If a system is rated to produce 5 gpm of permeate water at 77°F, the same system will produce more water at a higher temperature. It will also produce less water at a lower temperature. Use the temperature correction table to obtain the correct flow. Example: 5 gpm at 59˚F (5 ÷... -
Page 29: System Drawings, Flow Diagrams
SYSTEM DRAWINGS, FLOW DIAGRAMS ELC – 750 ELC – 1500 MODELS “A” DIM 36.62 36.62 “B” DIM 17.20 17.20 “C” DIM 17.00 17.00 “D” DIM 15.00 15.00 “E” DIM 12.00 12.00 “F” DIM 11.76 11.76 ELC – Series User Manual MKTF –... - Page 30 ELC – 750 FLOW DIAGRAM ELC – Series User Manual MKTF – 506-A 03/18...
- Page 31 ELC – 1500 FLOW DIAGRAM ELC – Series User Manual MKTF – 506-A 03/18...
-
Page 32: Electrical Schematic
ELC – SERIES ELECTRICAL SCHEMATIC ELC – Series User Manual MKTF – 506-A 03/18... -
Page 33: System Warranty
SYSTEM WARRANTY – Year Limited Warranty Warranty Terms Subject to the terms and conditions set forth hereinafter, manufacturer (hereafter “Manufacturer”) warrants to the original purchaser (hereafter the “Customer”) that the systems and products manufactured by the Manufacturer are free from defects in material and in workmanship for twelve (12) months from the Warranty Commencement Date (as defined below) only when used strictly in accordance with the applicable operating instructions and within the range of the operating conditions specified by the Manufacturer for each such product. - Page 34 Required or replaced products or components shall be returned surface freight. In genuine emergency situations, Manufacturer will at Manufacturer’s sole discretion) forward replacement parts to Customer without waiting for authorized return of the questionable part(s). In such cases, Customer will issue a purchase order or other payment guarantee prior to shipment.
