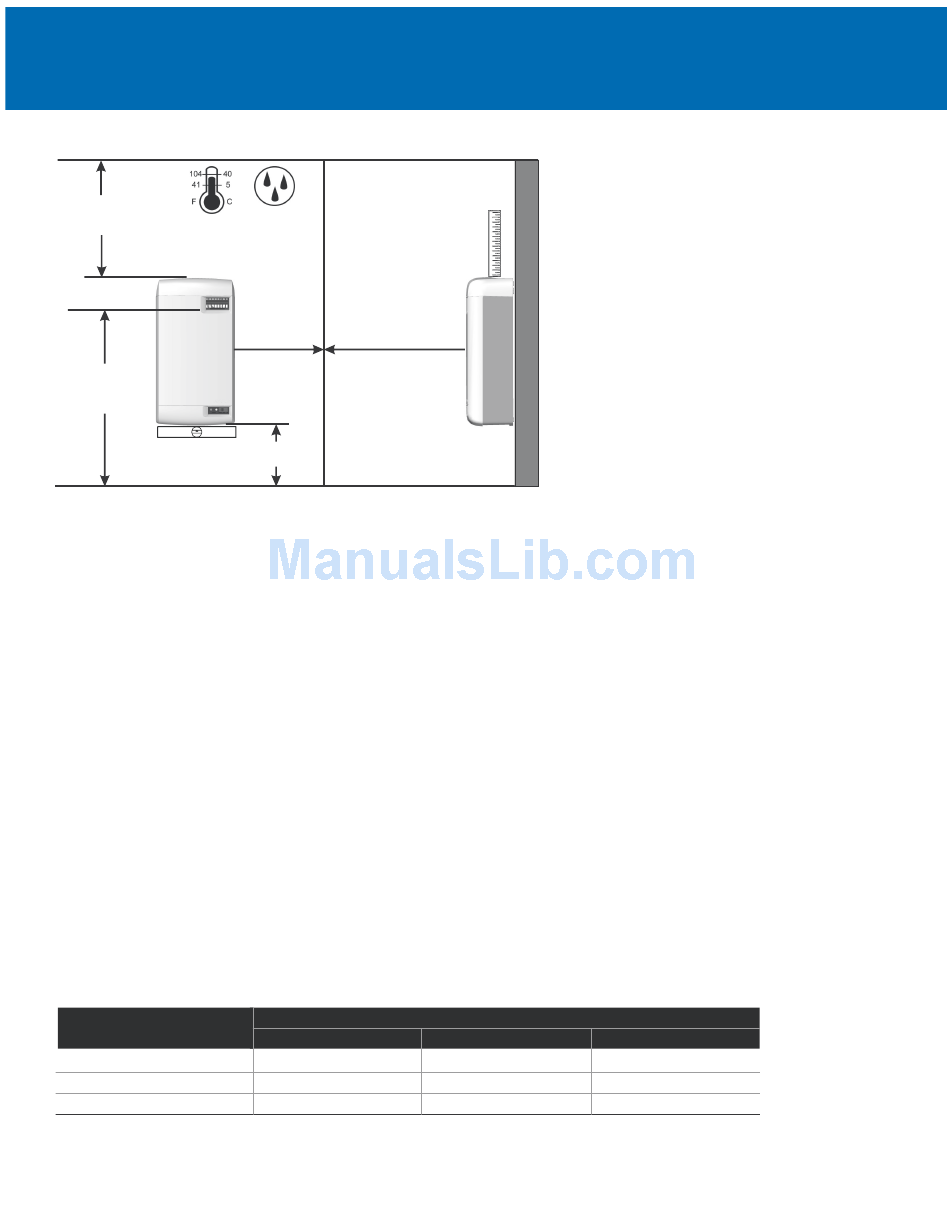

Mounting
Overhead clearance
for space models
only, see table
7 ft (2.1 m)
min. height
for space
models only.
Mount humidifier
level

Mounting Procedure

1. The RH2 humidifier is wall mounted using a keyhole
located on the back of the humidifier.
2. Use #8 x 2 in. (5 cm) screws mounted into 2x4 studs
or better if there is drywall or other spacers. 2 screws
are needed, one for hanging the unit and one for
securing it so it will not lift off the keyhole.
3. Install the top screw so that 1/4 in. (6 mm) is exposed.
Raise the unit and place the screw head through the
keyhole.
4. Make sure the unit is level and then insert and tighten
the second screw through the bottom hole. Tighten
the top screw.
Humidifier Output lb (kg)
<4 (1 .8)
6 (2 .7)
8 (3. 6)
5-95%
possible to steam
36 in. (92 cm)
duct model
min. front clearance
Side clearance Additional front clearance
for space models for space models,
only, see table see table
24 in.(61 cm)
min. height
Additional Clearance for Space Models Only
Side in. (cm)
12 (30)
16 (40)
18 (46)
As close as
distributor

Mounting Requirements

Nortec does not accept responsibility for installation
code violations.
1. Install as close as possible to the steam distributor.
2. Minimize the use of turn or bends in the steam line as
much as feasibly possible.
3. Mount on a suitable wall or vertical surface. Do not
sit the on the floor, where freezing can occur, or on
vibrating surfaces.
4. Allow clearances for plumbing and electrical
connections. Consult local and national codes prior
to final location and installation.
5. Install only in areas with ambient temperature 41-
104°F (5 – 40°C), and relative humidity 5 - 95% (non-
condensing).
6. When possible, mount the RH2 humidifier at a height
convenient for servicing.
Overhead in. (cm)
12 (30)
18 (46)
18 (46)
Front in. (cm)
36 (92)
42 (107)
48 (120)
