Important: Read and save these instructions. This guide to be left with equipment.

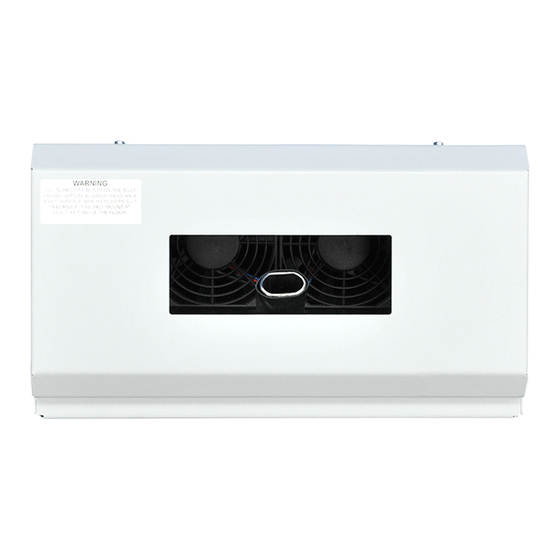

BLOWER
PACK
For RH Series
Installation Manual
Includes installation for the Nortec
Blower Pack with the RH Series
Humidifier.
This Installation Manual is intended
to be used in conjunction with the RH
Series Installation Manual.
2553198-C | 09 MAR 2011
Remote Mounting of the Blower Pack with RH Series
| 2
Advertisement
Related Manuals for Nortec RH Series
Summary of Contents for Nortec RH Series
- Page 1 Includes installation for the Nortec Blower Pack with the RH Series Humidifier. This Installation Manual is intended to be used in conjunction with the RH Series Installation Manual. 2553198-C | 09 MAR 2011 Remote Mounting of the Blower Pack with RH Series...
-
Page 2: Proprietary Notice
SERIAL # Proprietary Notice This document and the information disclosed herein are proprietary data of Nortec Humidity Ltd. Neither this document nor the information contained herein shall be reproduced, used, or disclosed to others without the written authorization of Nortec Humidity Ltd., except to the extent required for installation or maintenance of recipient’s equipment. - Page 3 2. The remote mounted blower should be located at least 7’ off the floor to prevent the discharged steam from coming in contact with pedestrian traffic or any obstructions. 3. When installing the remote blower pack, ensure the primary voltage to the RH Series has been switched off at the electrical panel, or that it is unplugged.
- Page 4 9. Put the power leads from the blower pack through knock out at the bottom right of the unit. 10. Connect the power leads for the blower pack to the terminal 19 and 20 on the RH Series’ control terminal strip.
- Page 5 Part Number Description 1581312 Blower Fan Assembly 2548008 Power Supply 2548211 Wire Harness BP built in Figure 2: Spare Parts – Blower Pack for RH Series Remote Mounting of the Blower Pack with RH Series...
- Page 6 U.S.A. 826 Proctor Avenue Ogdensburg, NY 13669 CANADA 2740 Fenton Road Ottawa, Ontario K1T 3T7 TEL: 1.866.NORTEC1 FAX: 613.822.7964 EMAIL: nortec@humidity.com...
