Wiring Diagram - Modine Manufacturing PDE Installation And Service Manual

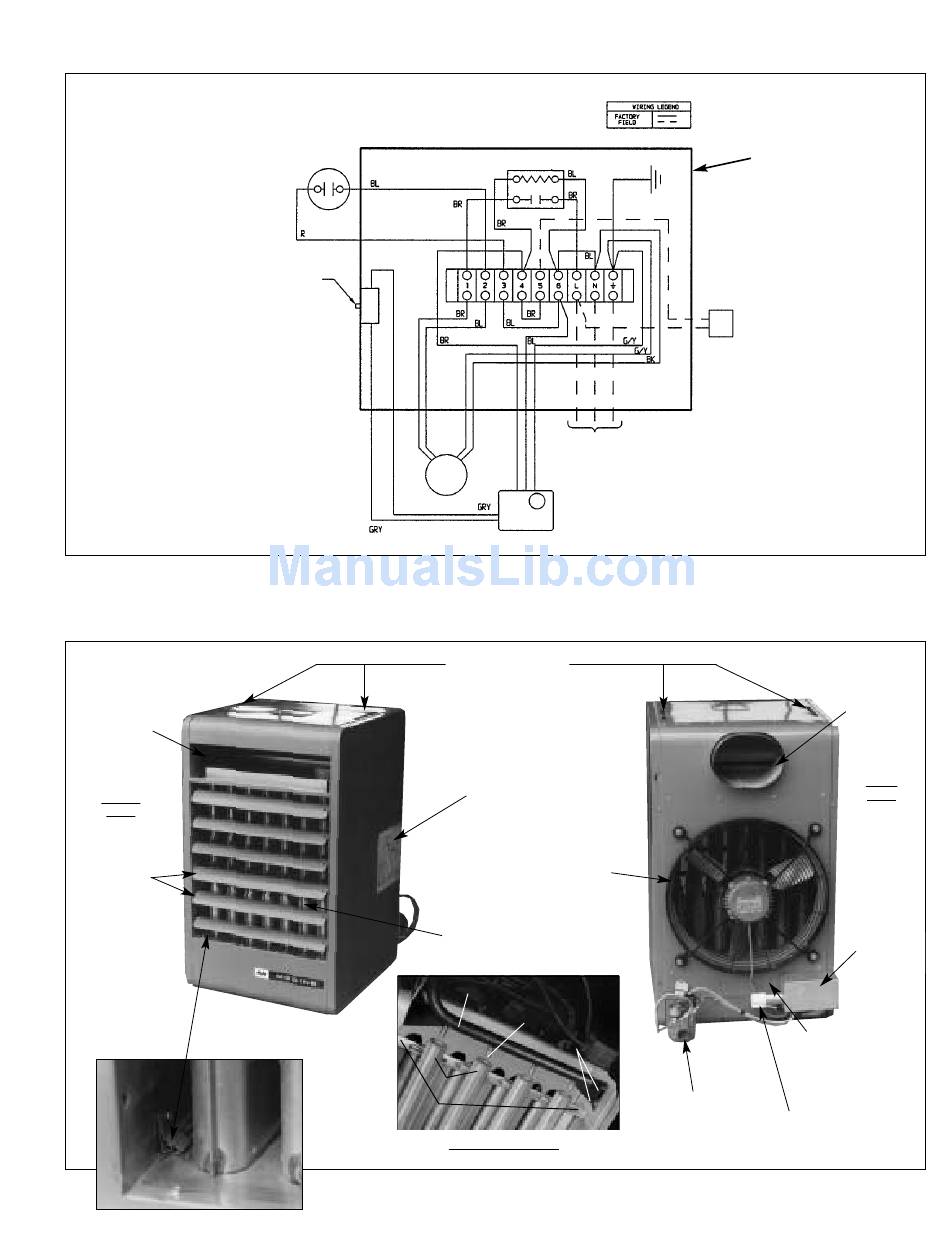

F F i i g g u u r r e e 6 6
A A i i r r H H e e a a t t e e r r W W i i r r i i n n g g D D i i a a g g r r a a m m
Overheat Thermostat with
interupter to gas valve &
capillary with sensor to
heat exchanger
(Manual reset button
located beneath black
screw off cap)
F F i i g g u u r r e e 7 7
M M a a j j o o r r C C o o m m p p o o n n e e n n t t L L o o c c a a t t i i o o n n
FLUE RELIEF
OPENING
F F R R O O N N T T
V V I I E E W W
LOUVRES
OVERHEAT
THERMOSTAT
BULB
CAUTION
FAILURE TO WIRE THIS UNIT ACCORDING
TO THIS WIRING DIAGRAM MAY RESULT
IN INJURY TO THE INSTALLER OR USER.
FOR DEVIATIONS CONTACT THE FACTORY.
Capacitor
Fan
Motor
TAPPED MOUNTING
SERIAL NUMBER
PLATE
DIMPLED HEAT
EXCHANGER
MANIFOLD
MIXER
TUBES
BURNER
RETAINING PIN
V V I I E E W W F F R R O O M M B B E E L L O O W W
( ( B B O O T T T T O O M M P P A A N N O O P P E E N N ) )
TD Relay
230V/50 Hz
Supply
Gas Valve
HOLES
FAN & MOTOR
MAIN
BURNER
ORIFICES
MANIFOLD MOUNTING
SCREW AND PIN
Junction Box
230V Thermostat
(By Others on
installation)
CONNECTION
JUNCTION
MANUAL RESET FOR
OVERHEAT
THERMOSTAT
BENEATH BLACK CAP.
COMBINATION
GAS CONTROL
FAN MOTOR
CONDENSER
FLUE
R R E E A A R R
V V I I E E W W
BOX
