9 x Service and maintenance
2. Lift the stabilising plate (fig. 9-5, item 2) and pull out the
connecting muff (fig. 9-5, item 1) from the condensate drain.
1 Connector sleeve for condensate connector
2 Stabilising plate

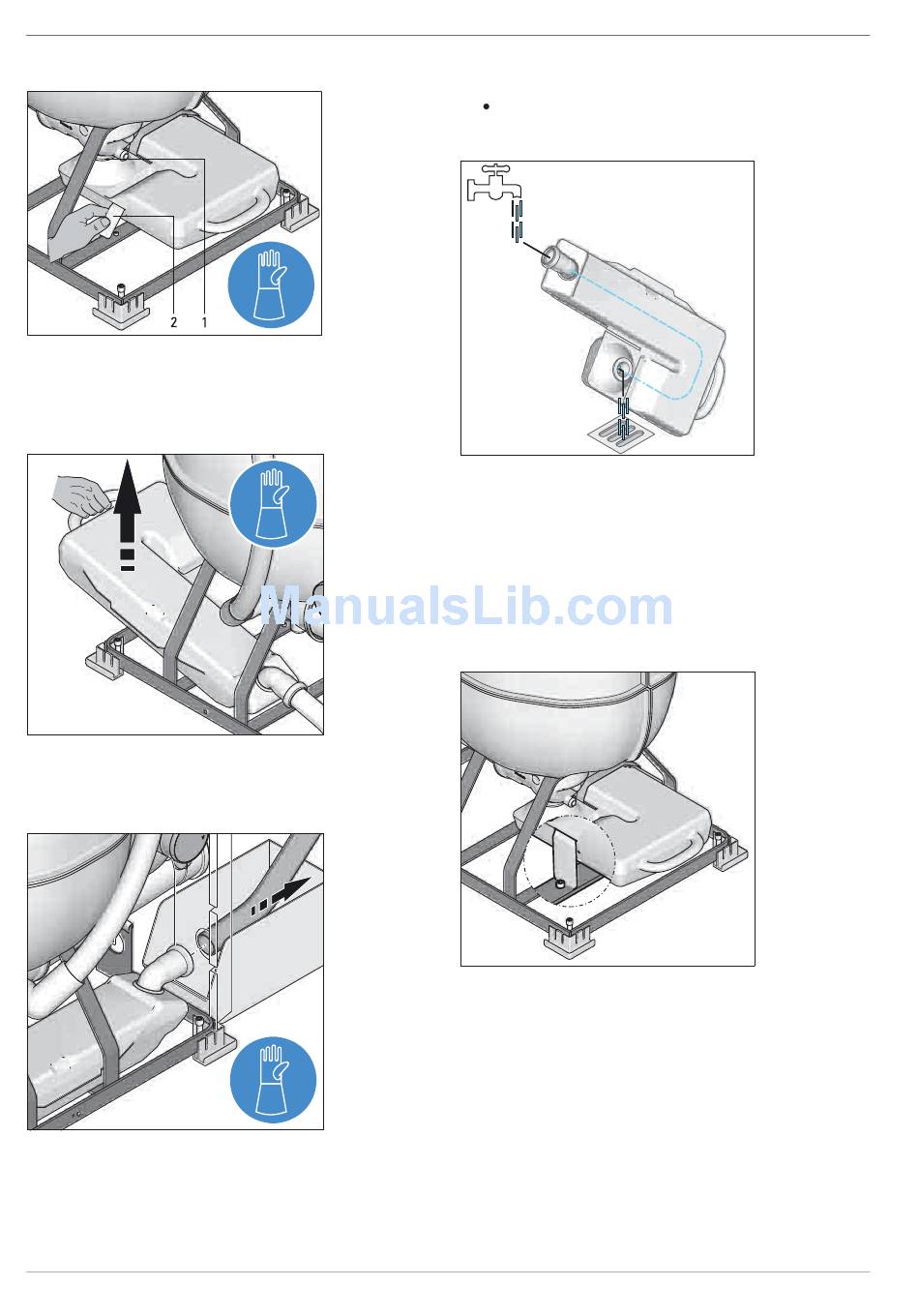

Fig. 9-5 Condensate box (plug connector)
3. Lift the condensate box and empty it through the connection
hose (fig. 9-6).
Fig. 9-6 Emptying the condensate box
4. Place collector container under the hose connection. Remove
the flexible connector hose from the condensate box
(fig. 9-7).
Fig. 9-7 Pull out connecting flexible hose
46
5. Pull the condensate box forwards under the boiler.
6. Cleaning the condensate box.
Rinse condensate box with flowing water against the flow
until clear water emerges (fig. 9-8). The condensate box
must be shaken in order to dislodge the deposits.
Fig. 9-8 Rinse condensate box
7. Check the flexible connector hose and drain connector and
clean if necessary.
8. Push condensate box under the boiler.
9. Plug flexible connector hose onto the condensate box
(see fig. 4-11).
10. Place the connection sleeve (fig. 9-5, item 1) firmly on the
condensate plug connection at the flue gas elbow.
11. Rotate the stabilising plate downwards and snap into place.
Fig. 9-9 Snap stabilising plate into place
12. Close and tighten fixing belt (see fig. 9-4, item 3). Tighten the
belt so much that the wrapped connection cannot loosen itself
(insert a wedge if necessary).
13. Fill condensate box with water (see chapter 4.7 "Connect the
condensate drain").
FA ROTEX A1 BGe - 02/2014
