Hydraulic system connection

Fig. 8-5 and fig. 8-6 show examples of the integration
of a Sanicube INOX hot water storage tank and a sub-
tank US 150. Note that the hydraulic circuit shown does
not claim to be complete and your system planning
must therefore still be carried out thoroughly.
As a ROTEX certified company you will find other ex-
amples for hydraulic system connection concepts on
the ROTEX Homepage.
Short name
1 Cold water distribution network
2 Hot water distribution network
3 Heating inflow
4 Heating return flow
5 Mixer circuit
6 Circulation
7 Check valve, return valve
7a Non return valves
3UV1 3-way switch valve (DHW)
A1 A1 oil or gas condensing boiler
CW Cold water
DHW Domestic hot water
S#O Hot water storage tank SC 538/16/0
H H ... H Heating circuits
1, 2 m
MAG Diaphragm expansion vessel
MIX 3-way-mixer with drive motor
MK1 Mixer group with high-efficiency pump
Mixer group with high-efficiency pump (PWM
MK2
controlled)
P Boiler circuit pump
K
P Mixing circuit pump
Mi
P Circulation pump
Z
RoCon BF A1 condensing boiler
RoCon M1 Mixer circuit control
SV Safety overpressure valve
t Outside temperature sensor
AU
t Storage tank temperature sensor (RoCon OT1)
DHW
t Mixer circuit flow temperature sensor
Mi
VS Burns guard VTA32
Tab. 8-1 Abbreviations on hydraulics plans
FA ROTEX A1 BGe - 02/2014
Meaning
8 x Hydraulic connection

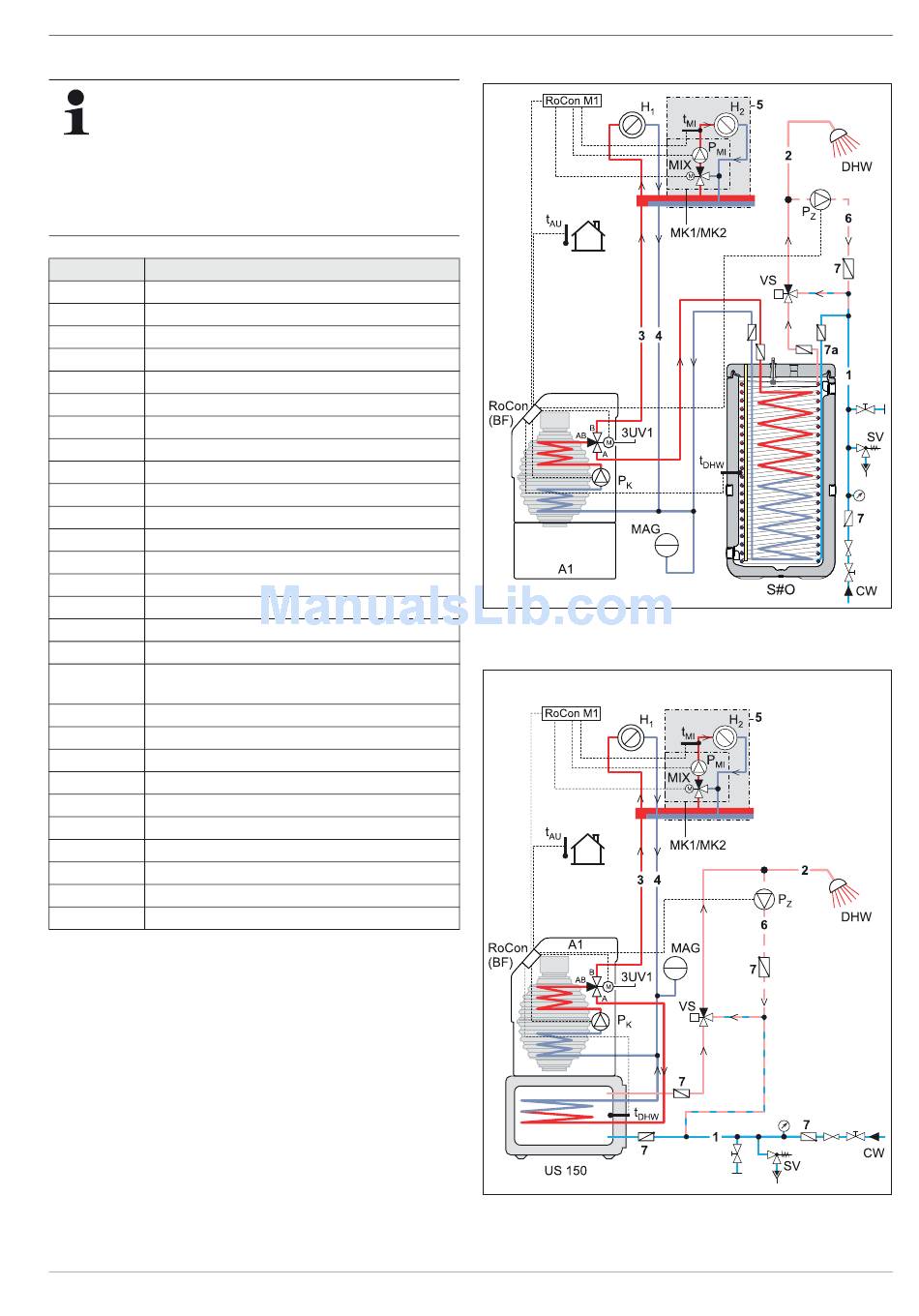

Fig. 8-5 Standard connection schematic ROTEX A1 with Sanicube (for
legend see tab. 8-1)
Fig. 8-6 Standard connection schematic ROTEX A1 with US 150
(for legend see tab. 8-1)
